YZFR1BC

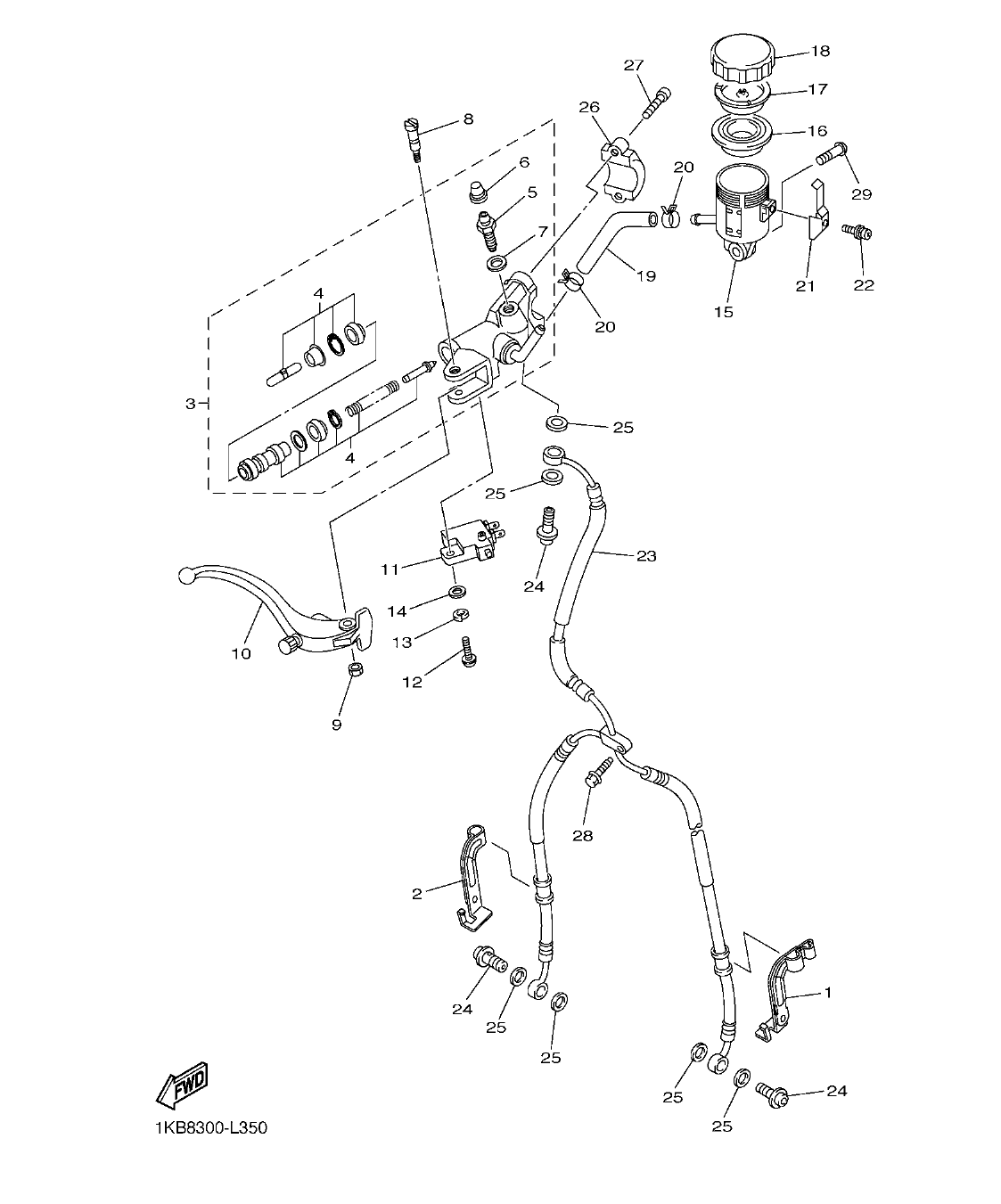

Section 35: FRONT MASTER CYLINDER (v2)
Model code: 1KBC
Parts list
Section 35
| Ref | Part No. / Description | Qty | Buy |
|---|---|---|---|
| 1 |
1KB-25875-00
HOLDER, BRAKE HOSE 1
|
1 | |
| 2 |
14B-25876-00
HOLDER, BRAKE HOSE 2
|
1 | |
| 3 |
14B-W2587-00
MASTER CYLINDER SUB ASSY
|
1 | |
| 4 |
2S3-W0041-00
.CYLINDER KIT, MASTER
|
1 | |
| 5 |
3YK-25824-00
.SCREW, BLEED
|
1 | |
| 6 |
3YK-25825-00
.CAP
|
1 | |
| 7 |
5VY-25975-00
.SEAL 1
|
1 | |
| 8 |
5VY-2589F-01
BOLT, LEVER
|
1 | |
| 9 |
95617-06100
NUT, U
|
1 | |
| 10 |
14B-83922-00
LEVER 2
|
1 | |
| 11 |
4HM-83980-00
FRONT STOP SWITCH ASSY
|
1 | |
| 12 |
98502-04012
SCREW, PAN HEAD
|
1 | |
| 13 |
92902-04100
WASHER, SPRING
|
1 | |
| 14 |
92902-04600
WASHER, PLATE
|
1 | |
| 15 |
5SL-25894-20
TANK, RESERVOIR
|
1 | |
| 16 |
5VY-25854-00
DIAPHRAGM, RESERVOIR
|
1 |
17.85 AED
Check price & stock on WhatsApp
|
| 17 |
5VY-25855-00
BUSH,DIAPHRAGM
|
1 | |
| 18 |
5VY-25852-00
CAP, RESERVOIR
|
1 | |
| 19 |
5VY-25895-10
HOSE, RESERVOIR
|
1 | |
| 20 |
90467-120A3
CLIP
|
2 | |
| 21 |
5VY-2589G-00
HOLDER
|
1 |
8.94 AED
Check price & stock on WhatsApp
|
| 22 |
5VY-2589H-00
SCREW
|
1 | |
| 23 |
1KB-25872-00
HOSE, BRAKE 1
|
1 | |
| 24 |
90401-10172
BOLT, UNION
|
3 | |
| 25 |
90430-10005
GASKET
|
6 |
2.86 AED
Check price & stock on WhatsApp
|
| 26 |
5VS-25867-00
BRACKET, MASTER CYLINDER
|
1 | |
| 27 |
91317-06020
BOLT
|
2 | |
| 28 |
90105-06041
BOLT, FLANGE
|
1 | |
| 29 |
90111-05026
BOLT,HEX. SOCKET BUTTON
|
1 |
