F60A

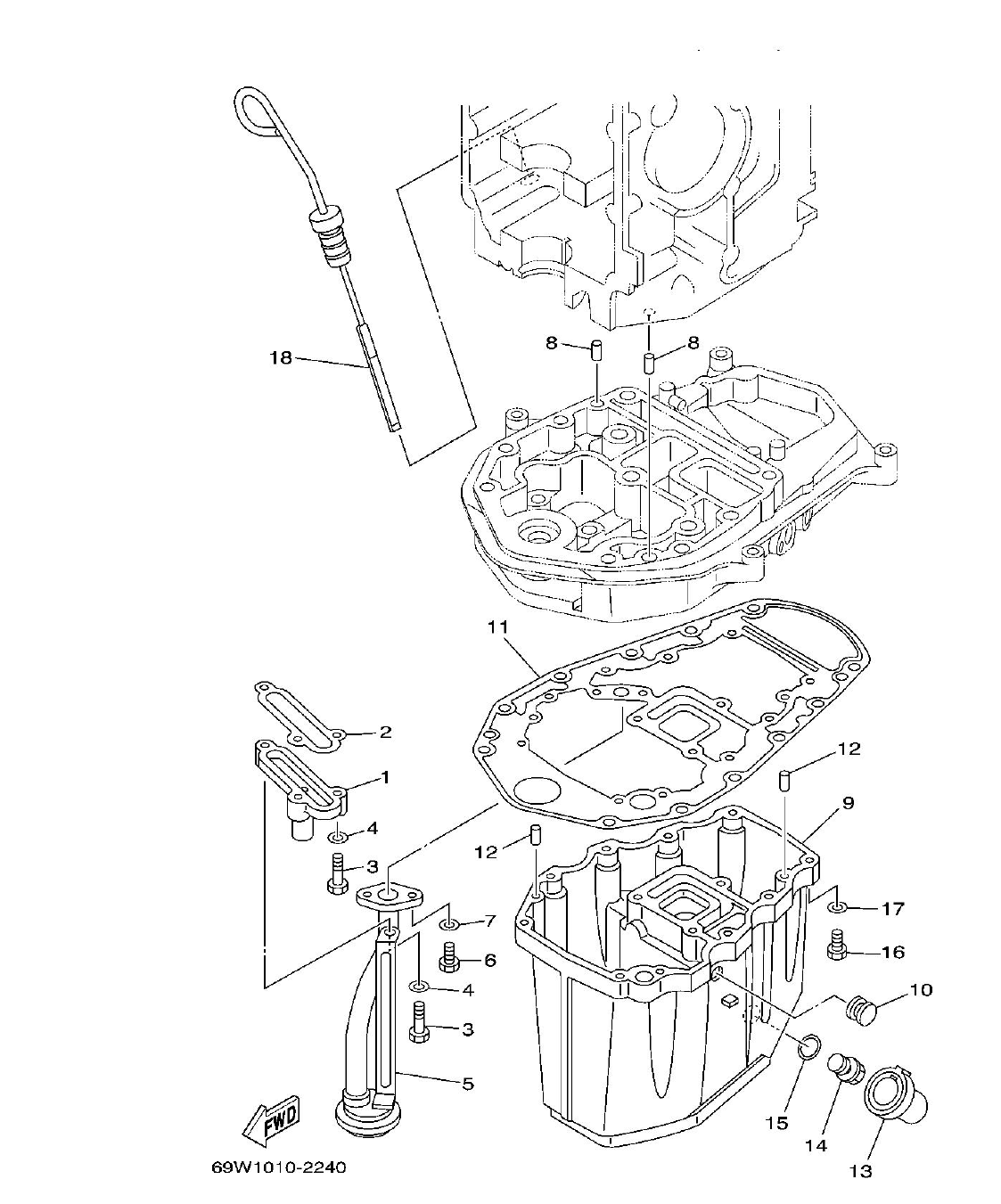

Section 21: OIL PAN (v2)
Model code: 69W6
Parts list
Section 21
| Ref | Part No. / Description | Qty | Buy |
|---|---|---|---|
| 1 |
62Y-11575-00
RELIEF VALVE ASSY
|
1 | |
| 2 |
62Y-13475-00
GASKET
|
1 | |
| 3 |
97013-06025
BOLT
|
3 | |
| 4 |
92903-06600
WASHER, PLATE
|
3 | |
| 5 |
62Y-13411-00
STRAINER, OIL
|
1 | |
| 6 |
97013-06016
BOLT
|
2 | |
| 7 |
92903-06600
WASHER, PLATE
|
2 | |
| 8 |
93608-12M05
PIN, DOWEL
|
2 | |
| 9 |
64J-15311-01-5B
OIL PAN
|
1 | |
| 10 |
90480-12M25
GROMMET
|
1 | |
| 11 |
69W-15312-00
GASKET, OIL PAN
|
1 | |
| 12 |
93606-12019
PIN, DOWEL
|
4 | |
| 13 |
67C-15316-00
DAMPER, ENGINE MOUNT 1
|
1 | |
| 14 |
90340-14M06
PLUG, STRAIGHT SCREW
|
1 | |
| 15 |
90430-14M09
GASKET
|
1 | |
| 16 |
97075-06025
BOLT
|
10 | |
| 17 |
92995-06600
WASHER
|
10 | |
| 18 |
67C-15362-00
PLUG, OIL LEVEL
|
1 |
