F60A

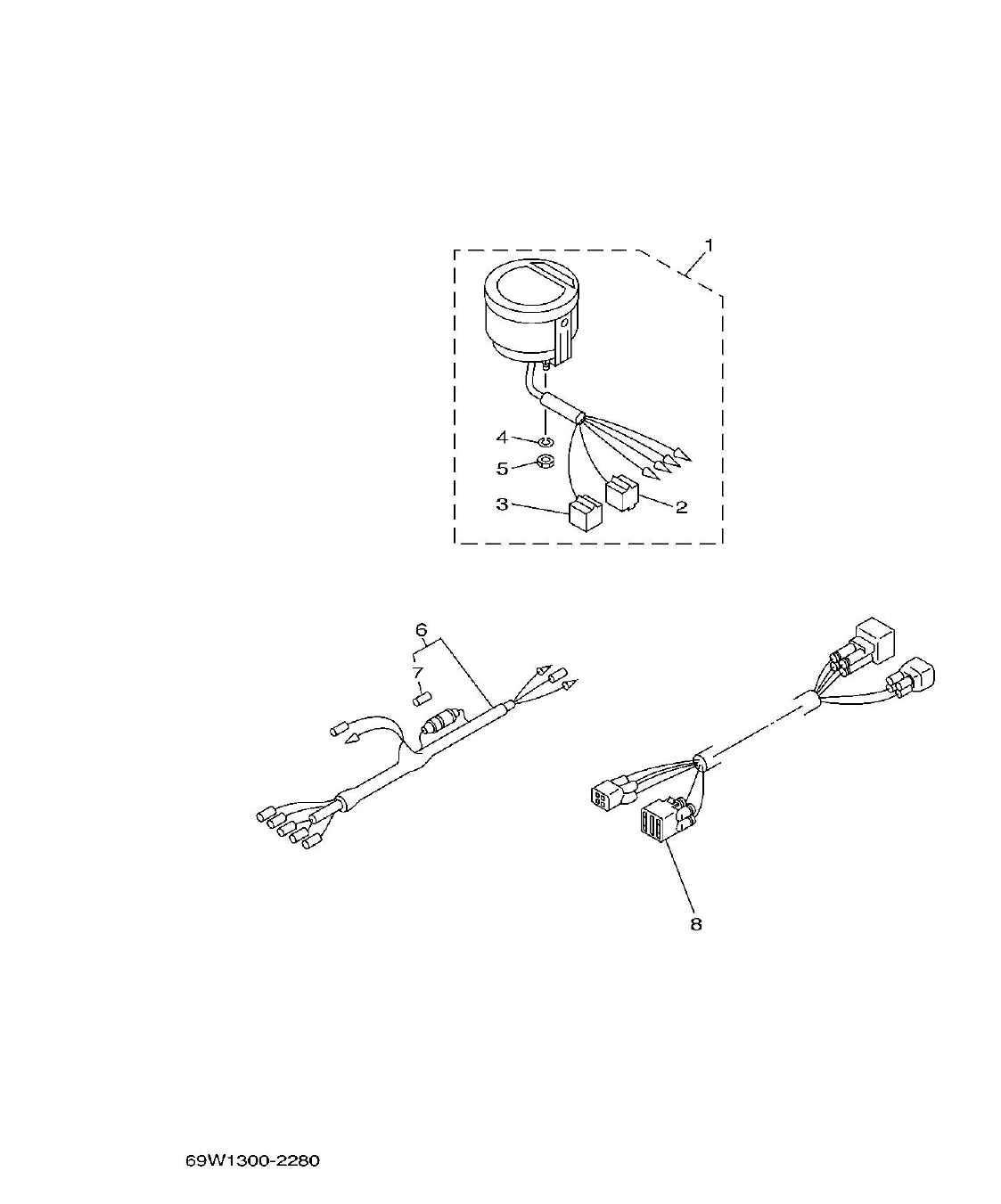

Section 28: METER (v2)
Model code: 69W6
Parts list
Section 28
| Ref | Part No. / Description | Qty | Buy |
|---|---|---|---|
| 1 |
6Y5-8350T-03
DIGITAL TACHOMETER ASSY
AP
|
1 | |
| 2 |
9E450-04433
. CONNECTOR
M-4-W
|
1 | |
| 3 |
9E450-04533
. CONNECTOR
F-4-W
|
1 | |
| 4 |
92990-04100
. WASHER, SPRING
|
2 | |
| 5 |
95380-04600
. NUT
|
2 | |
| 6 |
6Y5-83553-00
WIRE, LEAD (L=2.5M)
AP
|
1 | |
| 7 |
1E6-82151-00
. FUSE (10A)
|
1 | |
| 8 |
68F-82553-70
EXTENSION, WIRE LEAD (L=7.0M)
AP
|
1 |
