Suzuki DF60 – DRIVE SHAFT HOUSING
DRIVE SHAFT HOUSING (v2)
Model code: DF60
Parts list

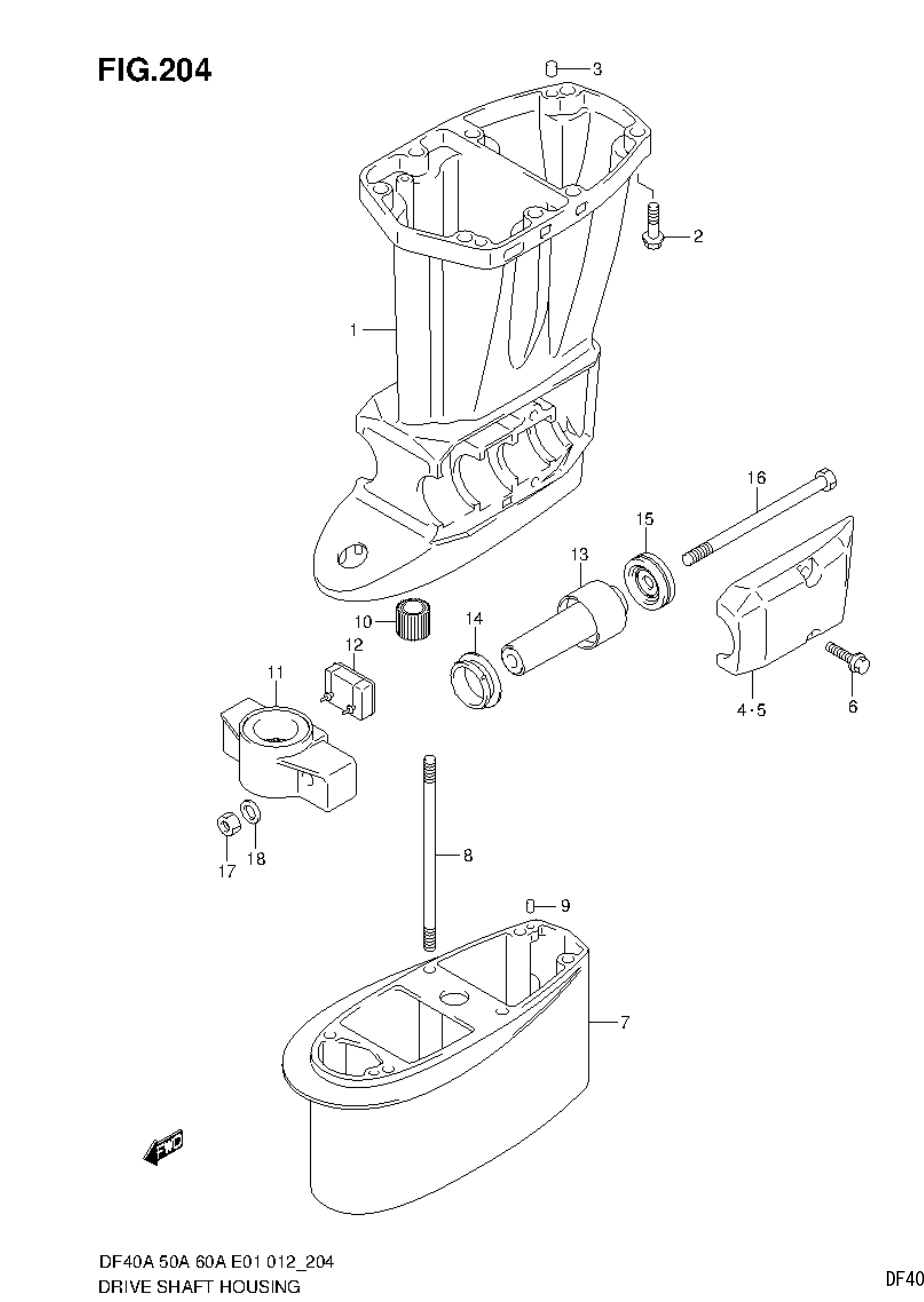

DRIVE SHAFT HOUSING
| Ref | Part No. / Description | Qty | Buy |
|---|---|---|---|
| 1-1 |
52111-88L00-0EP
df60a-e01
HOUSING, DRIVE SHAFT (S)
W/TRANSOM(S)
|
1 | |
| 1-1 |
52111-88L10-0EP
HOUSING, DRIVE SHAFT (L)
W/TRANSOM(L)
|
1 | |
| 1-4 |
52111-88L10-Y5S
df60a-e01
HOUSING, DRIVE SHAFT (L)
W/TRANSOM(L)
|
1 | |
| 2 |
09116-10176
BOLT
|
8 |
Price: 13.41 AED
Stock: 7
|
| 3 |
09202-08006
PIN
|
2 |
Price: 5.96 AED
Stock: 27
|
| 4 |
54221-88L00-0EP
COVER, LOWER MOUNT STBD
|
1 | |
| 4-2 |
54221-88L00-Y5S
df60a-e01
COVER, LOWER MOUNT STBD
|
1 | |
| 5 |
54231-88L00-0EP
COVER, LOWER MOUNT PORT
|
1 | |
| 5-2 |
54231-88L00-Y5S
df60a-e01
COVER, LOWER MOUNT PORT
|
1 | |
| 6 |
09116-10176
BOLT
|
4 |
Price: 13.41 AED
Stock: 7
|
| 7 |
52131-88L00-0EP
CASE, EXTENSION (BLACK)
W/TRANSOM(X)
|
1 | |
| 8 |
09108-08254
STUD BOLT
W/TRANSOM(X)
|
6 | |
| 9 |
09202-06023
PIN
W/TRANSOM(X)
|
2 | |
| 10 |
57130-94301
BUSH, DRIVE SHAFT
W/TRANSOM(X)
|
1 | |
| 11 |
54211-87J10-0EP
BRACKET, LOWER MOUNT (BLACK)
|
1 | |
| 11-2 |
54211-87J10-Y5S
df60a-e01
BRACKET, LOWER MOUNT (WHITE)
|
1 | |
| 12 |
54151-88L00
MOUNT, LOWER THRUST
|
1 | |
| 13 |
54160-88L00
df60a-e01
MOUNT, LOWER
|
2 | |
| 13 |
54160-88L00
df60a-e40
MOUNT, LOWER
|
2 | |
| 13 |
54160-88L00
df60ath-e01
MOUNT, LOWER
|
2 | |
| 13 |
54160-88L00
df60ath-e40
MOUNT, LOWER
|
2 | |
| 13 |
54160-88L10
df60aqh-e01
MOUNT, LOWER
|
2 | |
| 13 |
54160-88L10
df60aqh-e40
MOUNT, LOWER
|
2 | |
| 14 |
54167-87L01
df60a-e01
MOUNT, LOWER SIDE
|
4 | |
| 14 |
54167-87L01
df60a-e40
MOUNT, LOWER SIDE
|
4 | |
| 14 |
54167-87L01
df60aqh-e01
MOUNT, LOWER SIDE
|
2 | |
| 14 |
54167-87L01
df60aqh-e40
MOUNT, LOWER SIDE
|
2 | |
| 14 |
54167-87L01
df60ath-e01
MOUNT, LOWER SIDE
|
4 | |
| 14 |
54167-87L01
df60ath-e40
MOUNT, LOWER SIDE
|
4 | |
| 15 |
54170-88L00
df60a-e01
CUSHION, LOWER MOUNT
|
2 | |
| 15 |
54170-88L00
df60a-e40
CUSHION, LOWER MOUNT
|
2 | |
| 15 |
54170-88L00
df60ath-e01
CUSHION, LOWER MOUNT
|
2 | |
| 15 |
54170-88L00
df60ath-e40
CUSHION, LOWER MOUNT
|
2 | |
| 15 |
54180-88L00
DAMPER, FWD STOPPER
|
2 | |
| 16 |
54166-95J02
BOLT, LOWER MOUNT (12X200)
|
2 |
Price: 64.80 AED
Stock: 4
|
| 17 |
09159-12014
NUT
|
2 |
Price: 8.94 AED
Stock: 19
|
| 18 |
54114-88L00
df60a-e01
WASHER, LOWER MOUNT BOLT
|
2 | |
| 18 |
54114-88L00
df60a-e40
WASHER, LOWER MOUNT BOLT
|
2 | |
| 18 |
54114-88L00
df60ath-e01
WASHER, LOWER MOUNT BOLT
|
2 | |
| 18 |
54114-88L00
df60ath-e40
WASHER, LOWER MOUNT BOLT
|
2 | |
| 18 |
54114-90J01
WASHER, LOWER MOUNT NUT
|
2 | |
| 21 |
09160-12113
df60a-e01
WASHER (12.5X30X2.5)
|
2 | |
| 21 |
09160-12113
df60a-e40
WASHER (12.5X30X2.5)
|
2 | |
| 21 |
09160-12113
df60ath-e01
WASHER (12.5X30X2.5)
|
2 | |
| 21 |
09160-12113
df60ath-e40
WASHER (12.5X30X2.5)
|
2 |
