Suzuki DF60 – OPT:HARNESS
OPT:HARNESS (v2)
Model code: DF60
Parts list

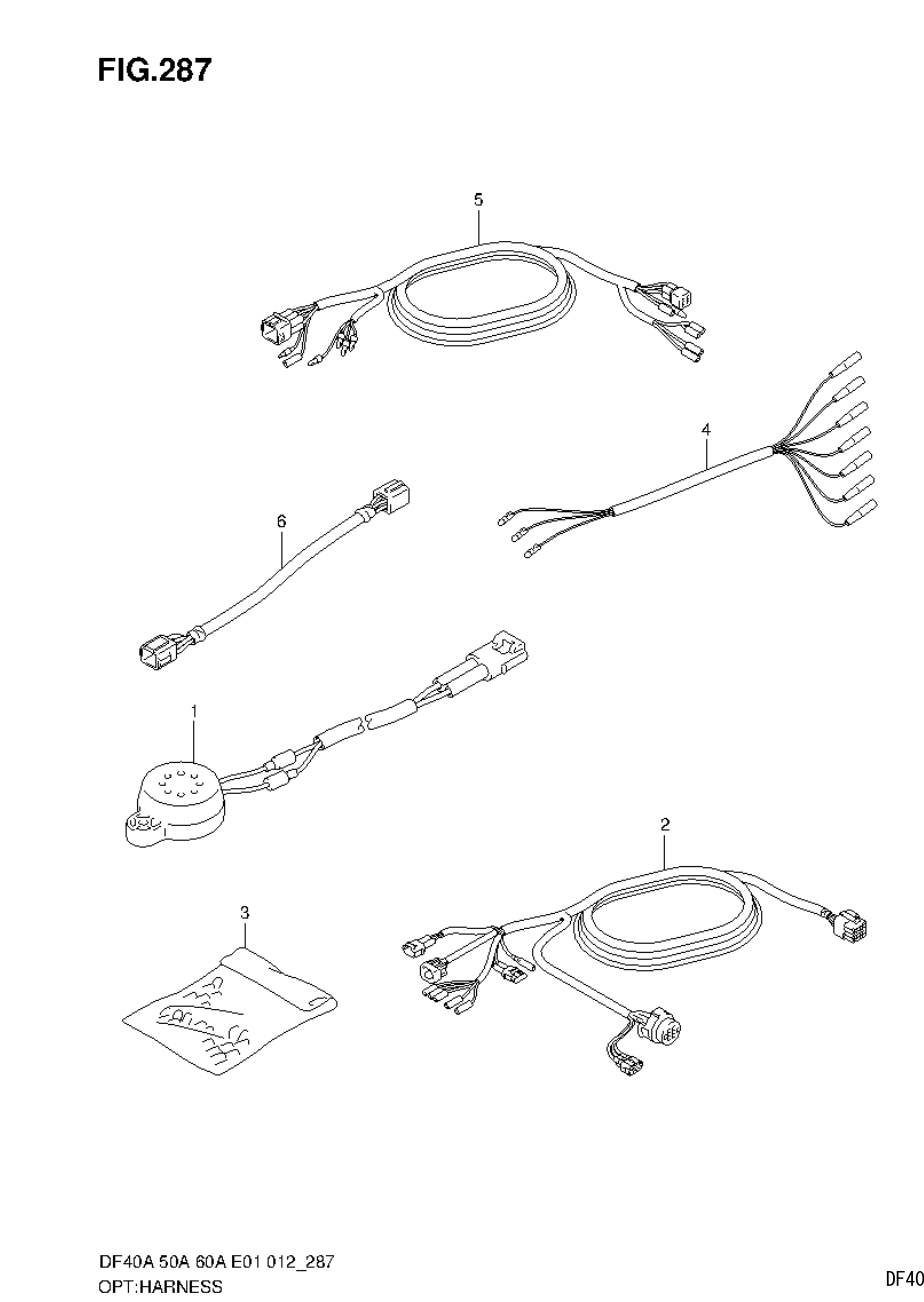

OPT:HARNESS
| Ref | Part No. / Description | Qty | Buy |
|---|---|---|---|
| 1 |
38500-93J00
BUZZER ASSY, WARNING
|
1 | |
| 1-1 |
36620-93J10
df60a-e01
WIRE ASSY, REMOCON EXTENSION
L:2000
|
1 | |
| 1-1 |
36620-93J10
df60a-e40
WIRE ASSY, REMOCON EXTENSION
L:2000
|
1 | |
| 1-2 |
36620-93J40
df60a-e01
WIRE ASSY, REMOCON EXTENSION
L:3000
|
1 | |
| 1-2 |
36620-93J40
df60a-e40
WIRE ASSY, REMOCON EXTENSION
L:3000
|
1 | |
| 2 |
36620-93J30
df60a-e01
WIRE ASSY, REMOCON ADAPTER
L:2000
|
1 | |
| 2 |
36620-93J30
df60a-e40
WIRE ASSY, REMOCON ADAPTER
L:2000
|
1 | |
| 2-1 |
36620-93J02
WIRE ASSY, REMOTE CONTROL
L:5000
|
1 | |
| 2-2 |
36620-93J52
WIRE ASSY, REMOTE CONTROL
L:3500
|
1 | |
| 2-3 |
36620-93J62
WIRE ASSY, REMOTE CONTROL
L:6500
|
1 | |
| 3 |
36990-87D00
TERMINAL & SLEEVE SET
|
1 | |
| 4 |
36630-92E00
df60aqh-e01
WIRE ASSY, INSTRUMENT
|
1 | |
| 4 |
36630-92E00
df60aqh-e40
WIRE ASSY, INSTRUMENT
|
1 | |
| 4 |
36630-92E00
df60ath-e01
WIRE ASSY, INSTRUMENT
|
1 | |
| 4 |
36630-92E00
df60ath-e40
WIRE ASSY, INSTRUMENT
|
1 | |
| 5 |
36660-94480
df60aqh-e01
WIRE, MONITOR GAUGE EXTENSION
|
1 | |
| 5 |
36660-94480
df60aqh-e40
WIRE, MONITOR GAUGE EXTENSION
|
1 | |
| 5 |
36660-94480
df60ath-e01
WIRE, MONITOR GAUGE EXTENSION
|
1 | |
| 5 |
36660-94480
df60ath-e40
WIRE, MONITOR GAUGE EXTENSION
|
1 | |
| 6 |
36682-92E00
df60aqh-e01
WIRE, MONITOR GAUGE EXTENSION
|
1 | |
| 6 |
36682-92E00
df60aqh-e40
WIRE, MONITOR GAUGE EXTENSION
|
1 | |
| 6 |
36682-92E00
df60ath-e01
WIRE, MONITOR GAUGE EXTENSION
|
1 | |
| 6 |
36682-92E00
df60ath-e40
WIRE, MONITOR GAUGE EXTENSION
|
1 |
