Suzuki DF60 – PTT SWITCH / ENGINE CONTROL UNIT
PTT SWITCH / ENGINE CONTROL UNIT (v2)
Model code: DF60
PTT SWITCH / ENGINE CONTROL UNIT
Suzuki DF60 – PTT SWITCH / ENGINE CONTROL UNIT
100%

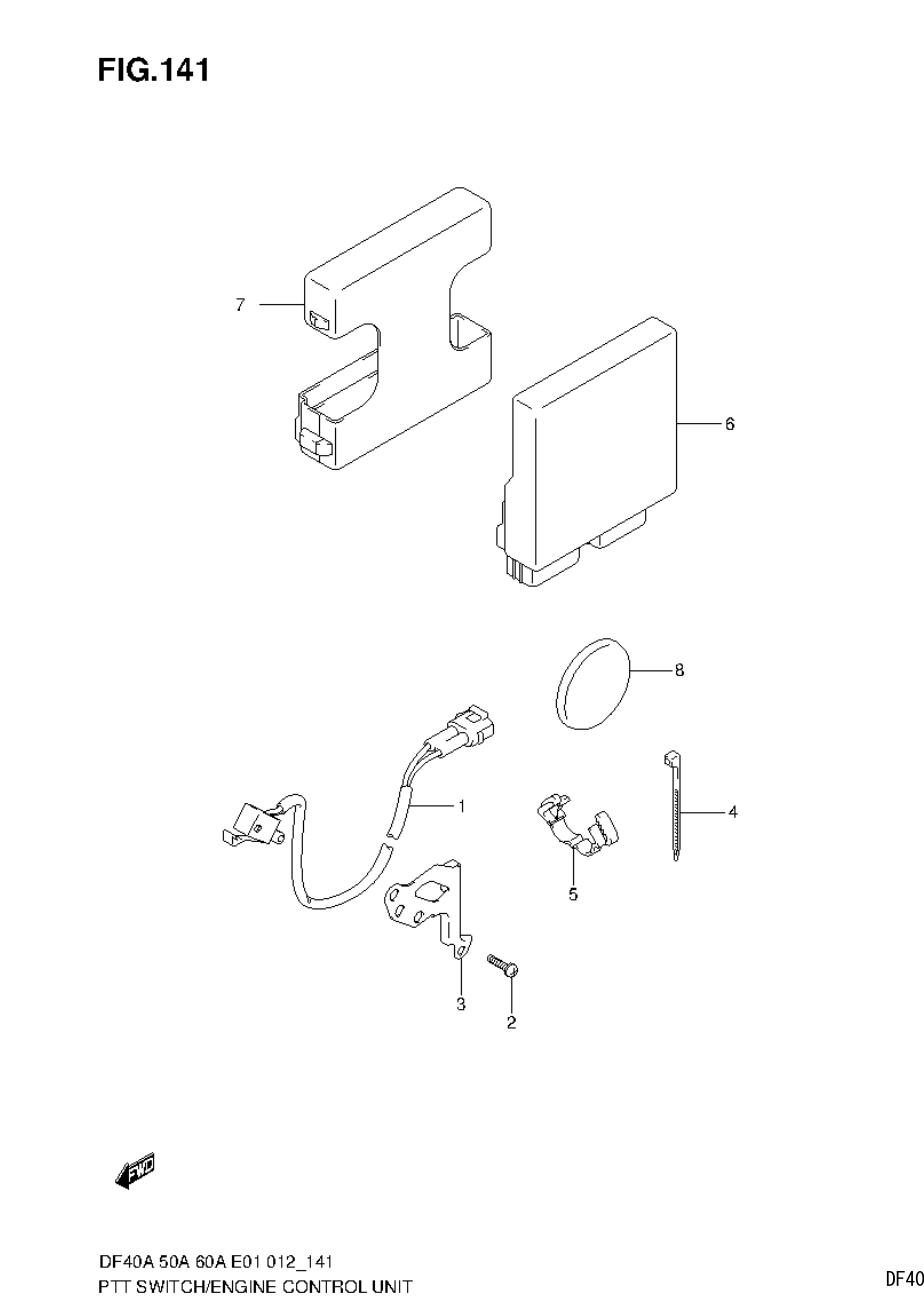

Diagram image
Open full size
Parts list
PTT SWITCH / ENGINE CONTROL UNIT
| Ref | Part No. / Description | Qty | Buy |
|---|---|---|---|
| 1 |
37721-93J00
SWITCH ASSY, NEUTRAL
|
1 |
Price: 93.11 AED
Stock: 171
|
| 2 |
09137-04004
SCREW (4X16)
|
2 | |
| 3 |
37725-88L00
BRACKET, NEUTRAL SWITCH
|
1 | |
| 4 |
09407-10404
CLAMP (L:100)
|
1 | |
| 4 |
37850-99E04
df60a-e01
SWITCH ASSY, PTT
|
1 | |
| 4 |
37850-99E04
df60a-e40
SWITCH ASSY, PTT
|
1 | |
| 4 |
37850-99E04
df60ath-e01
SWITCH ASSY, PTT
|
1 | |
| 4 |
37850-99E04
df60ath-e40
SWITCH ASSY, PTT
|
1 | |
| 5 |
09408-00184
CLAMP
|
1 | |
| 6 |
33920-88L70
df60aqh-e01
UNIT, ENGINE CONTROL
|
1 | |
| 6 |
33920-88L80
df60aqh-e40
UNIT, ENGINE CONTROL
|
1 | |
| 7 |
33925-88L00
CUSHION, ENGINE CONTROL UNIT
|
1 | |
| 7 |
38410-93J12
df60a-e01
RELAY ASSY, PTT
|
1 |
Price: 218.25 AED
Stock: 55
|
| 7 |
38410-93J12
df60a-e40
RELAY ASSY, PTT
|
1 |
Price: 218.25 AED
Stock: 55
|
| 7 |
38410-93J12
df60ath-e01
RELAY ASSY, PTT
|
1 |
Price: 218.25 AED
Stock: 55
|
| 7 |
38410-93J12
df60ath-e40
RELAY ASSY, PTT
|
1 |
Price: 218.25 AED
Stock: 55
|
| 8 |
09250-40002
df60aqh-e01
CAP
|
1 | |
| 8 |
09250-40002
df60aqh-e40
CAP
|
1 | |
| 8 |
38415-93J00
df60a-e01
HOLDER, PTT RELAY
|
1 | |
| 8 |
38415-93J00
df60a-e40
HOLDER, PTT RELAY
|
1 | |
| 8 |
38415-93J00
df60ath-e01
HOLDER, PTT RELAY
|
1 | |
| 8 |
38415-93J00
df60ath-e40
HOLDER, PTT RELAY
|
1 | |
| 9 |
01550-06127
df60a-e01
BOLT
|
1 |
Price: 3.72 AED
Stock: 0
|
| 9 |
01550-06127
df60a-e40
BOLT
|
1 |
Price: 3.72 AED
Stock: 0
|
| 9 |
01550-06127
df60ath-e01
BOLT
|
1 |
Price: 3.72 AED
Stock: 0
|
| 9 |
01550-06127
df60ath-e40
BOLT
|
1 |
Price: 3.72 AED
Stock: 0
|
| 10 |
33920-88L70
df60a-e01
UNIT, ENGINE CONTROL
|
1 | |
| 10 |
33920-88L70
df60ath-e01
UNIT, ENGINE CONTROL
|
1 | |
| 10 |
33920-88L80
df60a-e40
UNIT, ENGINE CONTROL
|
1 | |
| 10 |
33920-88L80
df60ath-e40
UNIT, ENGINE CONTROL
|
1 |
