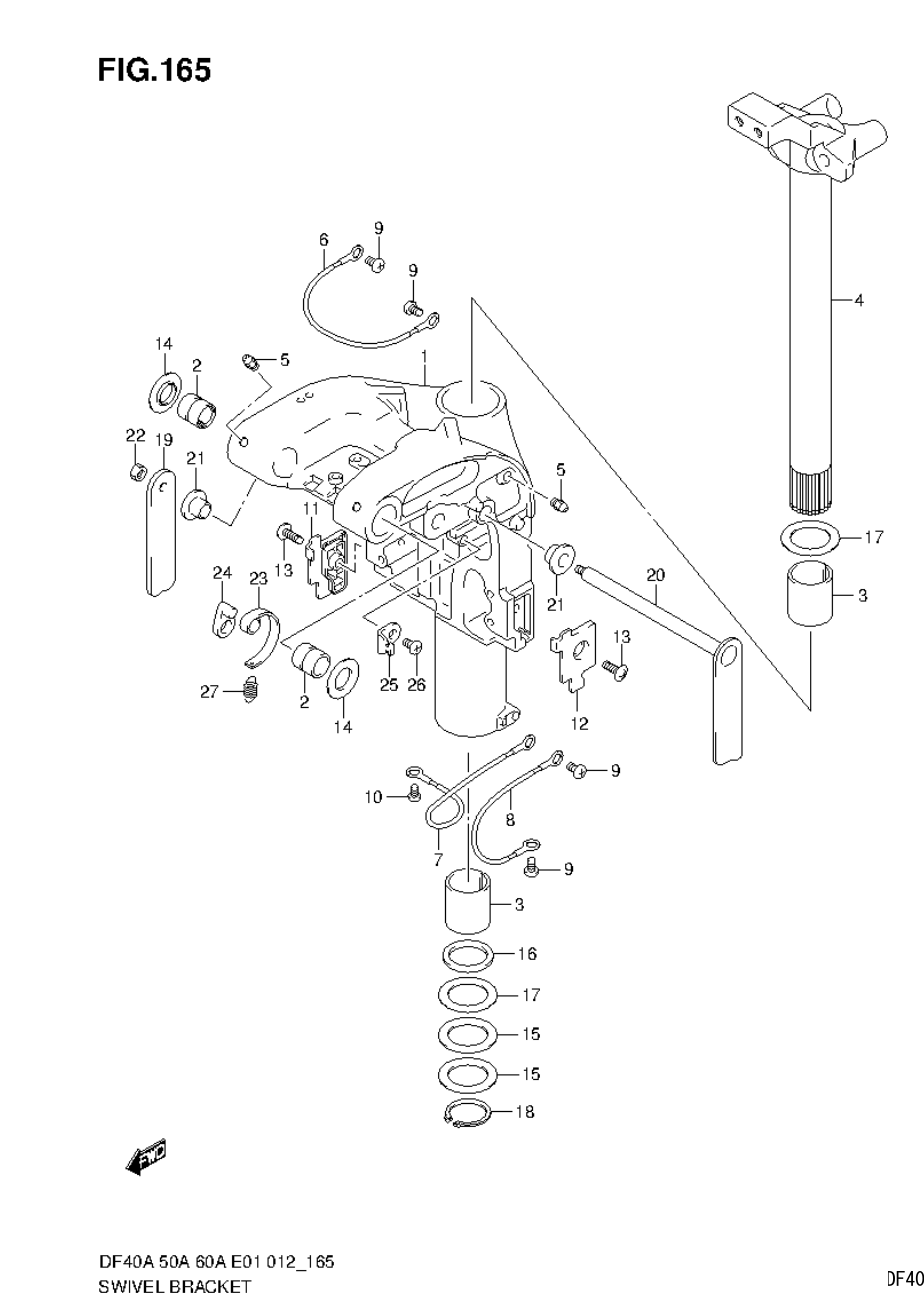

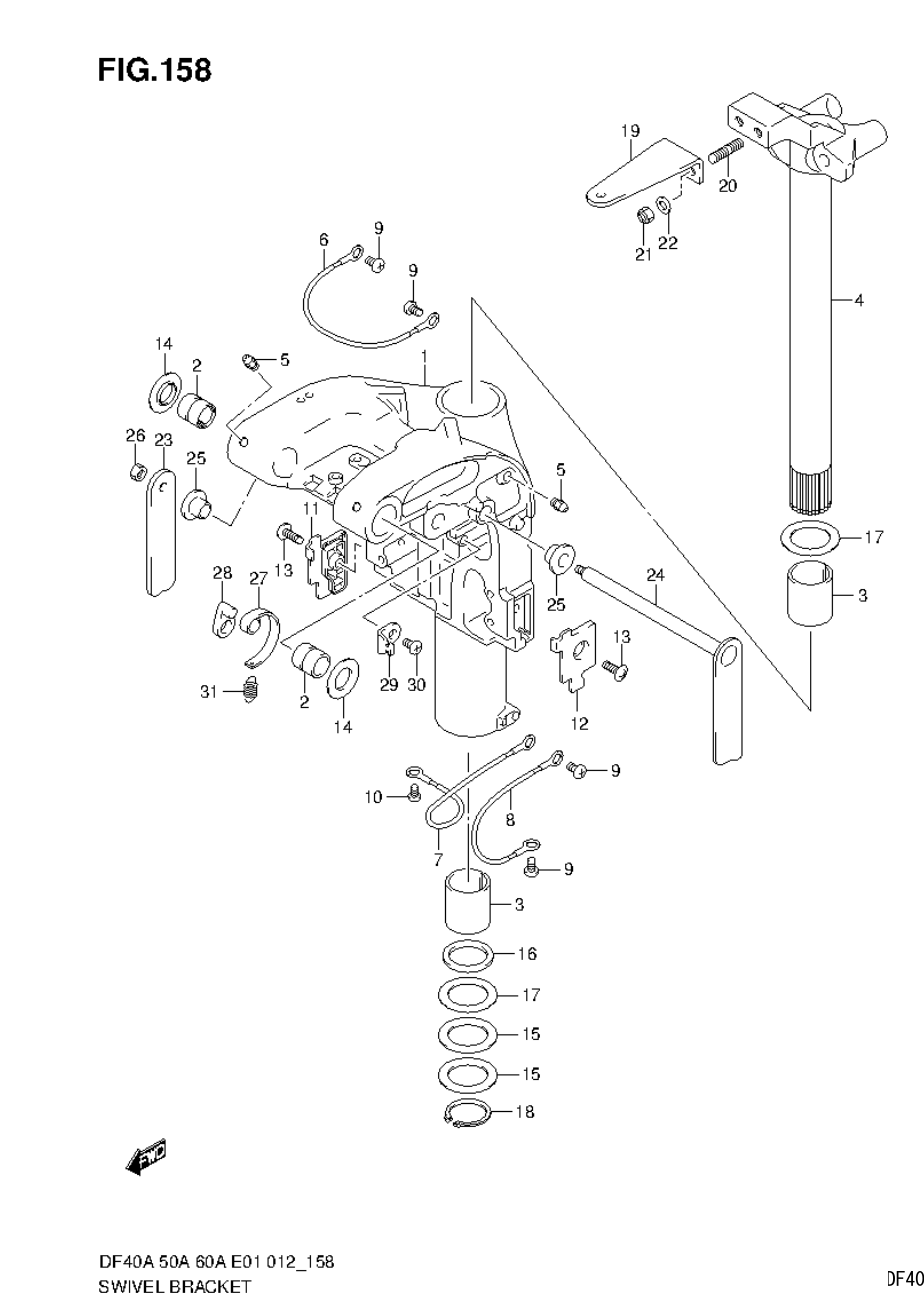

Suzuki DF60 – SWIVEL BRACKET
SWIVEL BRACKET (v2)
Model code: DF60
Parts list
SWIVEL BRACKET
| Ref | Part No. / Description | Qty | Buy |
|---|---|---|---|
| 1-1 |
43111-88L20-0EP
df60aqh-e01
BRACKET, SWIVEL (L,X) (BLACK)
W/TRANSOM(L)
|
1 | |
| 1-1 |
43111-88L20-0EP
df60aqh-e40
BRACKET, SWIVEL (L,X) (BLACK)
W/TRANSOM(L)
|
1 | |
| 1-1 |
43111-88L40-0EP
df60a-e40
BRACKET, SWIVEL (L) (BLACK)
W/TRANSOM(L)
|
1 | |
| 1-1 |
43111-88L40-0EP
df60ath-e01
BRACKET, SWIVEL (L) (BLACK)
W/TRANSOM(L)
|
1 | |
| 1-1 |
43111-88L40-0EP
df60ath-e40
BRACKET, SWIVEL (L) (BLACK)
W/TRANSOM(L)
|
1 | |
| 1-1 |
43111-88L50-0EP
df60a-e01
BRACKET, SWIVEL (S) (BLACK)
W/TRANSOM(S)
|
1 | |
| 1-2 |
43111-88L40-0EP
df60a-e01
BRACKET, SWIVEL (L,X) (BLACK)
W/TRANSOM(L)
|
1 | |
| 1-3 |
43111-88L21-0EP
df60aqh-e01
BRACKET, SWIVEL (L,X) (BLACK)
W/TRANSOM(L)
|
1 | |
| 1-3 |
43111-88L21-0EP
df60aqh-e40
BRACKET, SWIVEL (L,X) (BLACK)
W/TRANSOM(L)
|
1 | |
| 1-4 |
43111-88L40-Y5S
df60a-e01
BRACKET, SWIVEL (L) (WHITE)
W/TRANSOM(X)
|
1 | |
| 2 |
43211-87J00
df60aqh-e01
BUSH, SWIVEL BRACKET
|
2 | |
| 2 |
43211-87J00
df60aqh-e40
BUSH, SWIVEL BRACKET
|
2 | |
| 2 |
43211-88L00
df60a-e01
BUSH, SWIVEL BRACKET
|
2 | |
| 2 |
43211-88L00
df60a-e40
BUSH, SWIVEL BRACKET
|
2 | |
| 2 |
43211-88L00
df60ath-e01
BUSH, SWIVEL BRACKET
|
2 | |
| 2 |
43211-88L00
df60ath-e40
BUSH, SWIVEL BRACKET
|
2 | |
| 3 |
43711-89J10
df60aqh-e01
BUSH, STEERING
|
2 | |
| 3 |
43711-89J10
df60aqh-e40
BUSH, STEERING
|
2 | |
| 3 |
43711-97E00
df60a-e01
BUSH, STEERING
|
2 | |
| 3 |
43711-97E00
df60a-e40
BUSH, STEERING
|
2 | |
| 3 |
43711-97E00
df60ath-e01
BUSH, STEERING
|
2 | |
| 3 |
43711-97E00
df60ath-e40
BUSH, STEERING
|
2 | |
| 4-1 |
43750-88L20-0EP
BRACKET, STEERING (L) (BLACK)
W/TRANSOM(L)
|
1 | |
| 4-1 |
43750-88L30-0EP
df60a-e01
BRACKET, STEERING (S) (BLACK)
W/TRANSOM(S)
|
1 | |
| 4-4 |
43750-88L20-Y5S
df60a-e01
BRACKET, STEERING (L) (WHITE)
W/TRANSOM(L)
|
1 | |
| 5 |
22511-99011
df60a-e01
NIPPLE, GREASE
|
4 |
Price: 6.70 AED
Stock: 5
|
| 5 |
22511-99011
df60a-e40
NIPPLE, GREASE
|
4 |
Price: 6.70 AED
Stock: 5
|
| 5 |
22511-99011
df60aqh-e01
NIPPLE, GREASE
|
3 |
Price: 6.70 AED
Stock: 5
|
| 5 |
22511-99011
df60aqh-e40
NIPPLE, GREASE
|
3 |
Price: 6.70 AED
Stock: 5
|
| 5 |
22511-99011
df60ath-e01
NIPPLE, GREASE
|
4 |
Price: 6.70 AED
Stock: 5
|
| 5 |
22511-99011
df60ath-e40
NIPPLE, GREASE
|
4 |
Price: 6.70 AED
Stock: 5
|
| 6 |
36894-87D00
df60a-e01
LEAD (CLAMP TO SWIVEL)
|
1 |
Price: 47.67 AED
Stock: 3
|
| 6 |
36894-87D00
df60a-e40
LEAD (CLAMP TO SWIVEL)
|
1 |
Price: 47.67 AED
Stock: 3
|
| 6 |
36894-87D00
df60ath-e01
LEAD (CLAMP TO SWIVEL)
|
1 |
Price: 47.67 AED
Stock: 3
|
| 6 |
36894-87D00
df60ath-e40
LEAD (CLAMP TO SWIVEL)
|
1 |
Price: 47.67 AED
Stock: 3
|
| 6 |
36894-95201
df60aqh-e01
LEAD (CLAMP TO SWIVEL)
|
1 | |
| 6 |
36894-95201
df60aqh-e40
LEAD (CLAMP TO SWIVEL)
|
1 | |
| 7 |
36895-87D01
LEAD (SWIVEL TO MOUNT BRKT)
|
1 |
Price: 26.07 AED
Stock: 0
|
| 9 |
09125-06063
df60a-e01
SCREW (6X10)
|
4 |
Price: 2.98 AED
Stock: 15
|
| 9 |
09125-06063
df60a-e40
SCREW (6X10)
|
4 |
Price: 2.98 AED
Stock: 15
|
| 9 |
09125-06063
df60aqh-e01
SCREW (6X10)
|
2 |
Price: 2.98 AED
Stock: 15
|
| 9 |
09125-06063
df60aqh-e40
SCREW (6X10)
|
2 |
Price: 2.98 AED
Stock: 15
|
| 9 |
09125-06063
df60ath-e01
SCREW (6X10)
|
4 |
Price: 2.98 AED
Stock: 15
|
| 9 |
09125-06063
df60ath-e40
SCREW (6X10)
|
4 |
Price: 2.98 AED
Stock: 15
|
| 10 |
09125-05050
df60a-e01
SCREW (5X8)
|
1 | |
| 10 |
09125-05050
df60a-e40
SCREW (5X8)
|
1 | |
| 10 |
09125-05050
df60ath-e01
SCREW (5X8)
|
1 | |
| 10 |
09125-05050
df60ath-e40
SCREW (5X8)
|
1 | |
| 10 |
29125-93J10
df60aqh-e01
SCREW, LEAD (5X8)
|
3 | |
| 10 |
29125-93J10
df60aqh-e40
SCREW, LEAD (5X8)
|
3 | |
| 11 |
09160-39003
WASHER (39.5X58X0.3)
|
2 | |
| 11 |
43119-88L00
df60a-e01
PLATE, SWIVEL BRKT LWR STBD
|
1 | |
| 11 |
43119-88L00
df60a-e40
PLATE, SWIVEL BRKT LWR STBD
|
1 | |
| 11 |
43119-88L00
df60ath-e01
PLATE, SWIVEL BRKT LWR STBD
|
1 | |
| 11 |
43119-88L00
df60ath-e40
PLATE, SWIVEL BRKT LWR STBD
|
1 | |
| 12 |
09282-39001
OIL SEAL (39X51X5)
|
1 |
Price: 11.92 AED
Stock: 99
|
| 12 |
43119-88L10
df60a-e01
PLATE, SWIVEL BRKT LWR PORT
|
1 | |
| 12 |
43119-88L10
df60a-e40
PLATE, SWIVEL BRKT LWR PORT
|
1 | |
| 12 |
43119-88L10
df60ath-e01
PLATE, SWIVEL BRKT LWR PORT
|
1 | |
| 12 |
43119-88L10
df60ath-e40
PLATE, SWIVEL BRKT LWR PORT
|
1 | |
| 13 |
09125-06067
df60a-e01
SCREW (6X16)
|
2 | |
| 13 |
09125-06067
df60a-e40
SCREW (6X16)
|
2 | |
| 13 |
09125-06067
df60ath-e01
SCREW (6X16)
|
2 | |
| 13 |
09125-06067
df60ath-e40
SCREW (6X16)
|
2 | |
| 13 |
09160-39002
WASHER (39.5X58X1)
|
2 | |
| 14 |
09380-38003
CIRCLIP
|
1 |
Price: 19.37 AED
Stock: 26
|
| 14 |
43114-88L00
df60a-e01
WASHER, SWIVEL TO CLAMP BRKT
|
2 | |
| 14 |
43114-88L00
df60a-e40
WASHER, SWIVEL TO CLAMP BRKT
|
2 | |
| 14 |
43114-88L00
df60ath-e01
WASHER, SWIVEL TO CLAMP BRKT
|
2 | |
| 14 |
43114-88L00
df60ath-e40
WASHER, SWIVEL TO CLAMP BRKT
|
2 | |
| 15 |
41226-97E00
df60aqh-e01
BUSH, TILT LOCK LEVER
|
2 | |
| 15 |
41226-97E00
df60aqh-e40
BUSH, TILT LOCK LEVER
|
2 | |
| 16 |
41270-89J10
df60aqh-e01
LEVER, TILT LOCK STBD
|
1 | |
| 16 |
41270-89J10
df60aqh-e40
LEVER, TILT LOCK STBD
|
1 | |
| 17 |
41280-89J04
df60aqh-e01
LEVER, TILT LOCK PORT
|
1 | |
| 17 |
41280-89J04
df60aqh-e40
LEVER, TILT LOCK PORT
|
1 | |
| 18 |
45731-96312
BRACKET, SPRING
|
1 | |
| 19 |
09116-06094
df60aqh-e01
BOLT (6X15)
|
1 | |
| 19 |
09116-06094
df60aqh-e40
BOLT (6X15)
|
1 | |
| 19 |
41221-88L00
df60ath-e01
LEVER, TILT LOCK STBD
|
1 | |
| 19 |
41221-88L00
df60ath-e40
LEVER, TILT LOCK STBD
|
1 | |
| 19 |
43755-88L00-0EP
df60a-e01
ATTACHMENT, STEERING BRKT
|
1 | |
| 19 |
43755-88L00-0EP
df60a-e40
ATTACHMENT, STEERING BRKT
|
1 | |
| 20 |
09108-10161
df60a-e01
STUD BOLT
|
2 | |
| 20 |
09108-10161
df60a-e40
STUD BOLT
|
2 | |
| 20 |
41230-97E10
df60aqh-e01
SPRING, TILT LOCK
|
1 | |
| 20 |
41230-97E10
df60aqh-e40
SPRING, TILT LOCK
|
1 | |
| 20 |
41280-88L10
df60ath-e01
LEVER, TILT LOCK PORT
|
1 | |
| 20 |
41280-88L10
df60ath-e40
LEVER, TILT LOCK PORT
|
1 | |
| 21 |
09159-10050
df60a-e01
NUT
|
2 | |
| 21 |
09159-10050
df60a-e40
NUT
|
2 | |
| 21 |
09205-03012
df60aqh-e01
SPRING
|
1 | |
| 21 |
09205-03012
df60aqh-e40
SPRING
|
1 | |
| 21 |
41224-88L00
df60ath-e01
BUSH, TILT LOCK LEVER
|
2 | |
| 21 |
41224-88L00
df60ath-e40
BUSH, TILT LOCK LEVER
|
2 | |
| 22 |
09160-10141
df60a-e01
WASHER (10.5X19X2)
|
2 |
Price: 5.96 AED
Stock: 37
|
| 22 |
09160-10141
df60a-e40
WASHER (10.5X19X2)
|
2 |
Price: 5.96 AED
Stock: 37
|
| 22 |
29141-93J00
df60ath-e01
NUT, TILT LOCK LEVER STBD
|
1 | |
| 22 |
29141-93J00
df60ath-e40
NUT, TILT LOCK LEVER STBD
|
1 | |
| 22 |
43755-87L12-0EP
df60aqh-e01
EXTENSION, STRG BRKT (BLACK)
|
1 | |
| 22 |
43755-87L12-0EP
df60aqh-e40
EXTENSION, STRG BRKT (BLACK)
|
1 | |
| 23 |
09116-10150
df60aqh-e01
BOLT (10X55)
|
2 |
Price: 20.11 AED
Stock: 45
|
| 23 |
09116-10150
df60aqh-e40
BOLT (10X55)
|
2 |
Price: 20.11 AED
Stock: 45
|
| 23 |
41221-88L00
df60a-e01
LEVER, TILT LOCK STBD
|
1 | |
| 23 |
41221-88L00
df60a-e40
LEVER, TILT LOCK STBD
|
1 | |
| 23 |
41231-88L01
df60ath-e01
LINK, TILT LOCK LEVER
|
1 | |
| 23 |
41231-88L01
df60ath-e40
LINK, TILT LOCK LEVER
|
1 | |
| 24 |
41234-88L00
df60ath-e01
ARM, TILT LOCK LINK
|
1 | |
| 24 |
41234-88L00
df60ath-e40
ARM, TILT LOCK LINK
|
1 | |
| 24 |
41280-88L10
df60a-e01
LEVER, TILT LOCK PORT
|
1 | |
| 24 |
41280-88L10
df60a-e40
LEVER, TILT LOCK PORT
|
1 | |
| 24 |
43411-88L00
df60aqh-e01
ADJUSTER, STEERING
|
1 | |
| 24 |
43411-88L00
df60aqh-e40
ADJUSTER, STEERING
|
1 | |
| 25 |
41224-88L00
df60a-e01
BUSH, TILT LOCK LEVER
|
2 | |
| 25 |
41224-88L00
df60a-e40
BUSH, TILT LOCK LEVER
|
2 | |
| 25 |
43415-88L00
df60aqh-e01
PLATE, STEERING ADJUSTER
|
1 | |
| 25 |
43415-88L00
df60aqh-e40
PLATE, STEERING ADJUSTER
|
1 | |
| 26 |
09125-06063
df60ath-e01
SCREW (6X10)
|
1 |
Price: 2.98 AED
Stock: 15
|
| 26 |
09125-06063
df60ath-e40
SCREW (6X10)
|
1 |
Price: 2.98 AED
Stock: 15
|
| 26 |
29141-93J00
df60a-e01
NUT, TILT LOCK LEVER STBD
|
1 | |
| 26 |
29141-93J00
df60a-e40
NUT, TILT LOCK LEVER STBD
|
1 | |
| 26 |
43512-88L00
df60aqh-e01
SHAFT, STRG ADJ THREAD
|
1 | |
| 26 |
43512-88L00
df60aqh-e40
SHAFT, STRG ADJ THREAD
|
1 | |
| 27 |
09443-10043
df60ath-e01
SPRING
|
1 |
Price: 6.70 AED
Stock: 9
|
| 27 |
09443-10043
df60ath-e40
SPRING
|
1 |
Price: 6.70 AED
Stock: 9
|
| 27 |
41231-88L01
df60a-e01
LINK, TILT LOCK LEVER
|
1 | |
| 27 |
41231-88L01
df60a-e40
LINK, TILT LOCK LEVER
|
1 | |
| 27 |
43513-88L00
df60aqh-e01
BOLT, STEERING ADJUSTER
|
1 | |
| 27 |
43513-88L00
df60aqh-e40
BOLT, STEERING ADJUSTER
|
1 | |
| 28 |
41234-88L00
df60a-e01
ARM, TILT LOCK LINK
|
1 | |
| 28 |
41234-88L00
df60a-e40
ARM, TILT LOCK LINK
|
1 | |
| 28 |
43514-88L00
df60aqh-e01
PLATE, STRG ADJ FRICTION
|
2 | |
| 28 |
43514-88L00
df60aqh-e40
PLATE, STRG ADJ FRICTION
|
2 | |
| 29 |
43515-88L00
df60aqh-e01
WASHER, STRG ADJ FRICTION
|
2 | |
| 29 |
43515-88L00
df60aqh-e40
WASHER, STRG ADJ FRICTION
|
2 | |
| 30 |
09125-06063
df60a-e01
SCREW (6X10)
|
1 |
Price: 2.98 AED
Stock: 15
|
| 30 |
09125-06063
df60a-e40
SCREW (6X10)
|
1 |
Price: 2.98 AED
Stock: 15
|
| 30 |
43516-88L00
df60aqh-e01
WASHER, STRG ADJ FRICTION
|
1 | |
| 30 |
43516-88L00
df60aqh-e40
WASHER, STRG ADJ FRICTION
|
1 | |
| 31 |
09443-10043
df60a-e01
SPRING
|
1 |
Price: 6.70 AED
Stock: 9
|
| 31 |
09443-10043
df60a-e40
SPRING
|
1 |
Price: 6.70 AED
Stock: 9
|
| 31 |
43517-88L00
df60aqh-e01
SPACER, STEERING ADJUSTER
|
1 | |
| 31 |
43517-88L00
df60aqh-e40
SPACER, STEERING ADJUSTER
|
1 | |
| 32 |
09116-06094
df60aqh-e01
BOLT (6X15)
|
2 | |
| 32 |
09116-06094
df60aqh-e40
BOLT (6X15)
|
2 | |
| 33 |
09159-08059
df60aqh-e01
NUT
|
1 | |
| 33 |
09159-08059
df60aqh-e40
NUT
|
1 | |
| 34 |
09161-08011
df60aqh-e01
WASHER (8.2X18X1.2)
|
2 | |
| 34 |
09161-08011
df60aqh-e40
WASHER (8.2X18X1.2)
|
2 | |
| 35 |
22511-99011
df60aqh-e01
NIPPLE, GREASE
FROM VIN.212190
|
1 |
Price: 6.70 AED
Stock: 5
|
| 35 |
22511-99011
df60aqh-e40
NIPPLE, GREASE
FROM VIN.212190
|
1 |
Price: 6.70 AED
Stock: 5
|
