Suzuki DF60 – SIDE COVER
SIDE COVER (v2)
Model code: DF60
Parts list

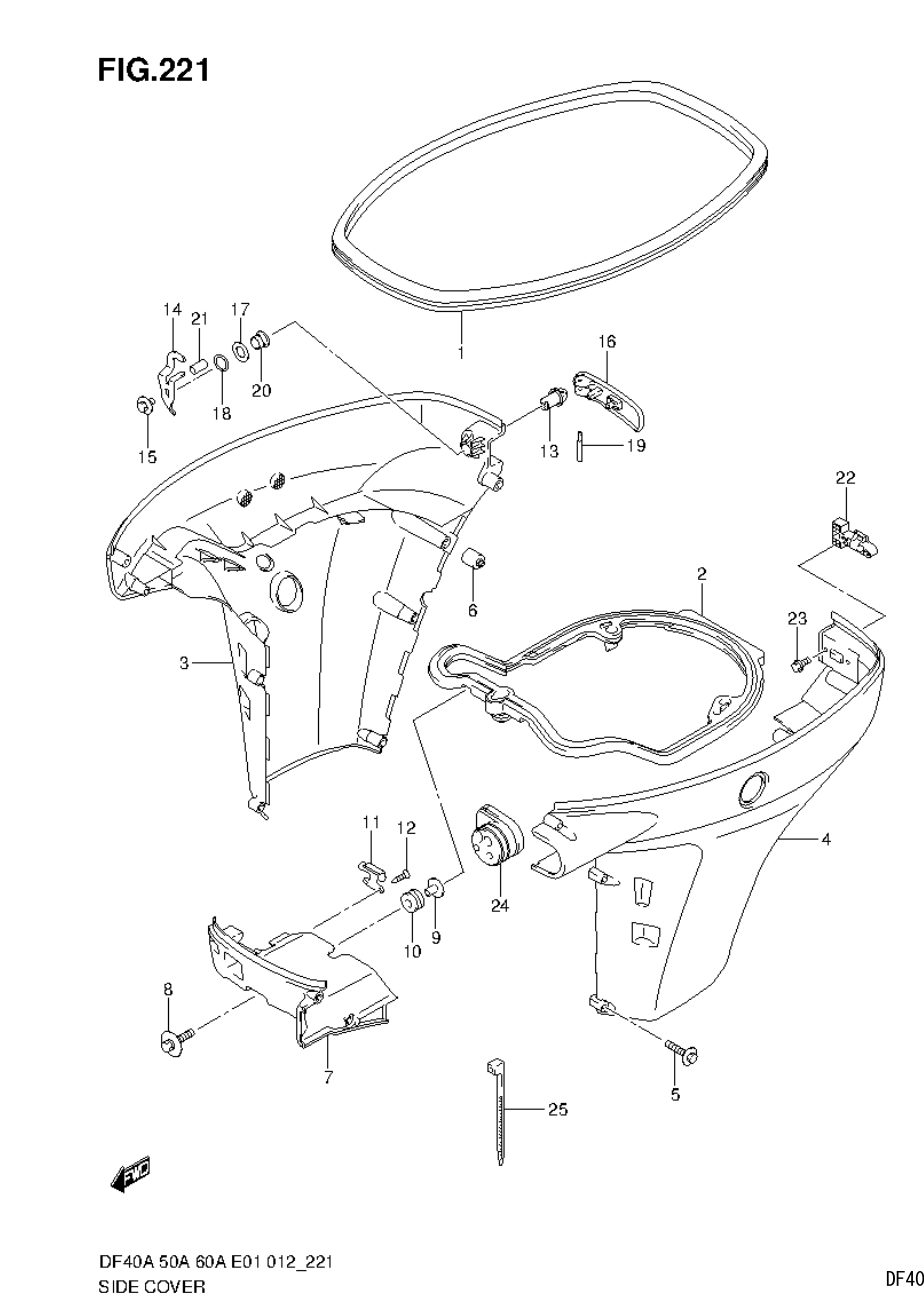

SIDE COVER
| Ref | Part No. / Description | Qty | Buy |
|---|---|---|---|
| 1 |
61112-88L10
RUBBER, SIDE COVER
|
1 | |
| 2 |
61134-88L00
SEAL, SIDE COVER
|
1 | |
| 3-1 |
61811-88L01-0EP
COVER, SIDE STBD (BLACK)
W/TRANSOM(L)
|
1 | |
| 3-1 |
61811-88L11-0EP
df60a-e01
COVER, SIDE STBD (BLACK)
W/TRANSOM(S)
|
1 | |
| 3-4 |
61811-88L01-Y5S
df60a-e01
COVER, SIDE STBD (WHITE)
W/TRANSOM(L)
|
1 | |
| 4-1 |
61821-88L01-0EP
COVER, SIDE PORT (BLACK)
W/TRANSOM(L)
|
1 | |
| 4-1 |
61821-88L11-0EP
df60a-e01
COVER, SIDE PORT (S) (BLACK)
W/TRANSOM(S)
|
1 | |
| 4-4 |
61821-88L01-Y5S
df60a-e01
COVER, SIDE PORT (WHITE)
W/TRANSOM(L)
|
1 | |
| 5-1 |
61815-99J00
SCREW, SIDE COVER
W/TRANSOM(L)
|
10 | |
| 5-1 |
61815-99J00
df60a-e01
SCREW, SIDE COVER
W/TRANSOM(S)
|
9 | |
| 5-2 |
09136-06148
SCREW (6X35)
W/TRANSOM(L)
|
10 | |
| 5-2 |
09136-06148
df60a-e01
SCREW (6X35)
W/TRANSOM(S)
|
9 | |
| 6 |
61151-88L00
CUSHION, SIDE COVER
|
1 | |
| 7 |
61831-88L00-0EP
PANEL, FRONT (BLACK)
|
1 | |
| 7-2 |
61831-88L00-Y5S
df60a-e01
PANEL, FRONT (WHITE)
|
1 | |
| 8 |
09118-08127
BOLT (8X40)
|
2 | |
| 9 |
09169-08039
WASHER
|
2 | |
| 10 |
09320-11013
CUSHION
|
2 | |
| 11 |
61412-88L00
HOOK, FRONT PANEL
|
1 | |
| 12 |
03542-05169
SCREW
|
2 |
Price: 3.72 AED
Stock: 8
|
| 13 |
61632-93J00
SHAFT, ENGINE COVER HOOK
|
1 |
Price: 95.34 AED
Stock: 0
|
| 14 |
61641-88L00
HOOK, ENGINE COVER
|
1 | |
| 15 |
09116-06127
BOLT (6X12)
|
1 |
Price: 5.96 AED
Stock: 9
|
| 16 |
61633-88L00
LEVER, HOOK REAR
|
1 | |
| 17 |
09160-13014
WASHER (13.2X25X1)
|
1 |
Price: 5.96 AED
Stock: 9
|
| 18 |
09164-14008
WASHER
|
1 |
Price: 7.45 AED
Stock: 10
|
| 19 |
09202-04022
PIN
|
1 |
Price: 6.70 AED
Stock: 0
|
| 20 |
09306-13007
BUSH
|
1 |
Price: 5.96 AED
Stock: 10
|
| 21 |
09352-50901-600
HOSE (5X9X600)
L:600->20
|
1 | |
| 22 |
61673-93J10
LATCH, HOOK LEVER
|
1 | |
| 23 |
01550-05107
BOLT
|
2 |
Price: 4.42 AED
Stock: 0
|
| 24 |
61124-88L10
GROMMET, REMOCON CABLE
|
1 | |
| 25 |
09407-25402
CLAMP (L:248)
|
1 |
