Suzuki DF60 – GEAR CASE
GEAR CASE (v2)
Model code: DF60
Parts list

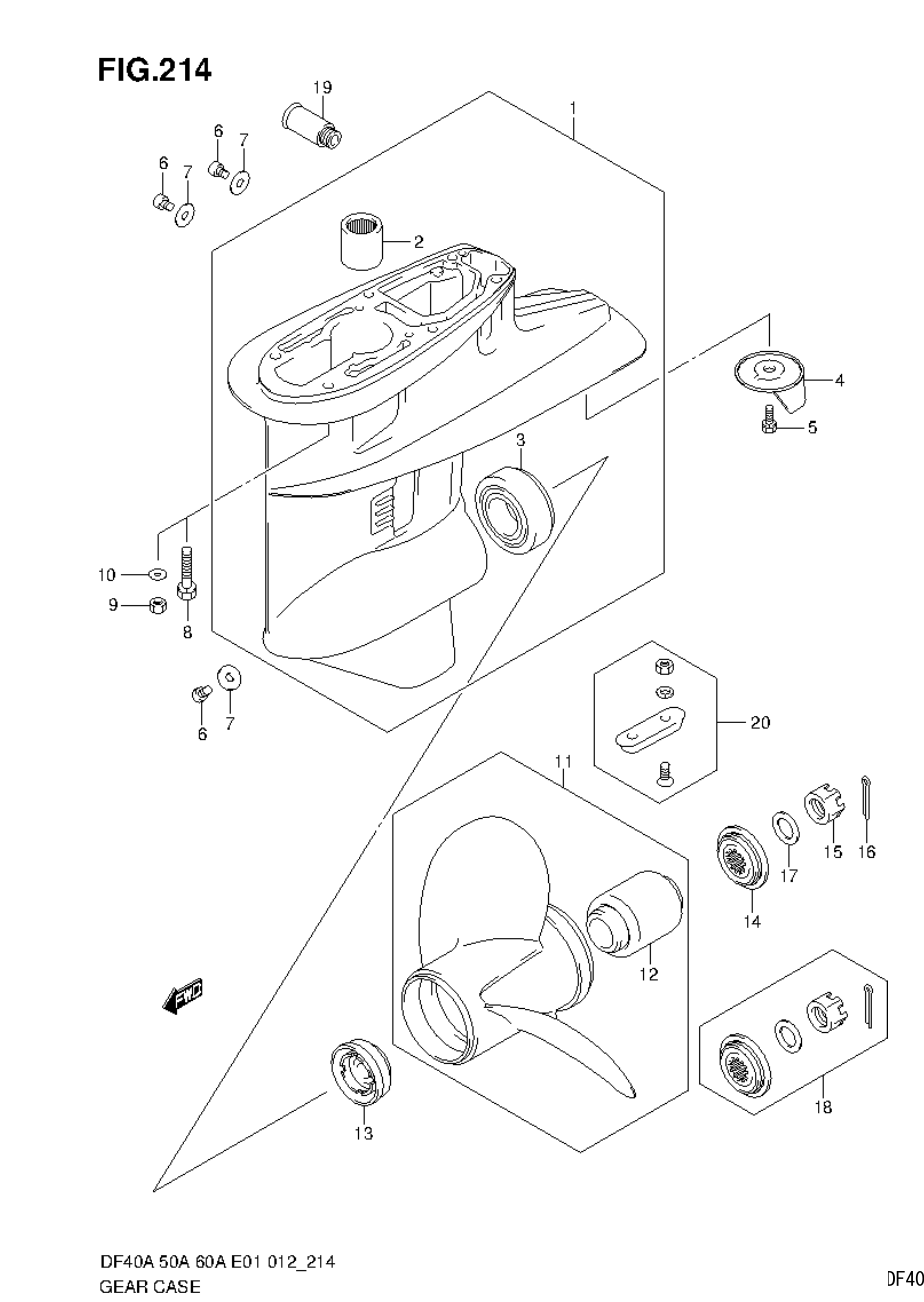

GEAR CASE
| Ref | Part No. / Description | Qty | Buy |
|---|---|---|---|
| 1 |
55100-87J50-0EP
CASE ASSY, GEAR (BLACK)
|
1 | |
| 1-2 |
55100-87J50-Y5S
df60a-e01
CASE ASSY, GEAR (WHITE)
|
1 | |
| 2 |
09263-22039
.BEARING (22X30X30)
|
1 |
Price: 154.19 AED
Stock: 5
|
| 3 |
09265-30004
.BEARING (30X62X17.25)
|
1 | |
| 4 |
55125-95500
TAB, TRIM
|
1 | |
| 5 |
09117-08037
BOLT (8X16)
|
1 | |
| 6 |
09248-10008
PLUG
|
3 |
Price: 10.43 AED
Stock: 43
|
| 7 |
09168-10022
GASKET (10X17X1.5)
|
3 |
Price: 2.98 AED
Stock: 2
|
| 8 |
09116-08131
BOLT (8X45)
W/TRANSOM(L)
|
6 |
Price: 8.19 AED
Stock: 30
|
| 9 |
09140-08023-XC0
NUT
W/TRANSOM(X)
|
6 | |
| 10 |
09160-08082
WASHER (8.5X16X1.2)
W/TRANSOM(X)
|
6 | |
| 11-1 |
58100-88L03-019
PROPELLER (3X11-1/2X9) (BLACK)
|
1 | |
| 11-2 |
58100-88L13-019
PROPELLER (3X11-1/2X10)
|
1 | |
| 11-3 |
58100-88L23-019
PROPELLER (3X11-1/2X11)
|
1 | |
| 11-4 |
58100-88LA0-019
PROPELLER (3X11-5/8X12)
|
1 | |
| 11-5 |
58100-88LB0-019
PROPELLER (3X11-1/2X13)
|
1 |
Price: 449.16 AED
Stock: 7
|
| 11-6 |
58100-88L52-019
PROPELLER (3X11-3/8X14)
|
1 | |
| 11-7 |
58100-88L62-019
PROPELLER (3X11-1/4X15)
|
1 | |
| 11-8 |
58100-88L72-019
PROPELLER (3X11-1/8X16)
|
1 | |
| 11-9 |
58100-88L83-019
PROPELLER (3X11X17)
|
1 | |
| 12 |
58120-88L01
.BUSH, PROPELLER
|
1 | |
| 13 |
57632-95320
STOPPER, PROPELLER BUSH
|
1 | |
| 14 |
57633-94300
SPACER, PROPELLER NUT
|
1 | |
| 15 |
09141-18005
NUT
|
1 |
Price: 14.90 AED
Stock: 35
|
| 16 |
09204-03003
PIN
|
1 |
Price: 4.47 AED
Stock: 474
|
| 17 |
09160-18028
WASHER (18.5X31X1)
|
1 |
Price: 5.96 AED
Stock: 30
|
| 18 |
57630-94300
KIT, PROPELLER NUT
OPT
|
1 | |
| 19 |
55181-95200
ATTACHMENT, FLUSH HOSE
OPT
|
1 | |
| 20 |
55300-95500
ZINK ASSY, PROTECTION
OPT
|
1 |
Price: 35.75 AED
Stock: 8
|
| 21 |
25700-88L00
SEALING KIT, GEAR CASE
OPT
|
1 | |
| 22 |
55321-87J10
df60a-e01
ANODE(MAGNESIUM)
OPT
|
1 | |
| 22 |
55321-87J10
df60aqh-e01
ANODE(MAGNESIUM)
OPT
|
1 | |
| 22 |
55321-87J10
df60aqh-e40
ANODE(MAGNESIUM)
OPT
|
1 | |
| 22 |
55321-87J10
df60ath-e40
ANODE(MAGNESIUM)
OPT
|
1 |
