bf225a6
Section E-20-10: ELECTRONIC CONTROL UNIT (v2)

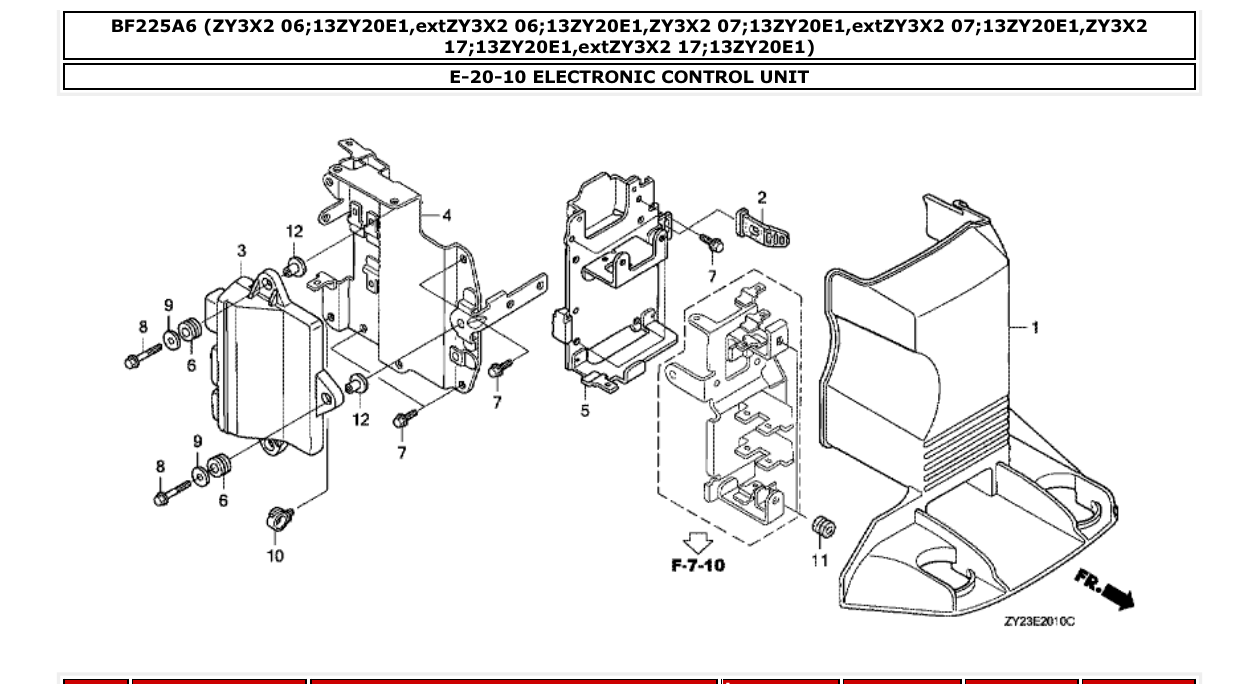

Diagram for section E-20-10: ELECTRONIC CONTROL UNIT.
| Ref | Part No. | Qty | Buy |
|---|---|---|---|
| 3 |
34750ZY3A01
CONTROL UNIT, ELECTRONIC
|
1 | Ask on WhatsApp |
| 3 |
34750ZY3A02
CONTROL UNIT, ELECTRONIC
|
1 | Ask on WhatsApp |
| 3 |
34750ZY3A03
CONTROL UNIT, ELECTRONIC
|
1 | Ask on WhatsApp |
| 4 |
34754ZY3000
BRACKET, ECU
|
1 | Ask on WhatsApp |
| 6 |
38551ZY3000
RUBBER, UNIT
|
3 | Ask on WhatsApp |
| 7 |
90011ZW9000
BOLT, FLANGE, 6X14 (CT200)
|
8 | Ask on WhatsApp |
| 8 |
90016ZY3000
BOLT, FLANGE, 6X28
|
3 | Ask on WhatsApp |
| 9 |
90404ZY3000
WASHER, PLAIN, 22X6X1.6
|
3 | Ask on WhatsApp |
| 10 |
90683SA0003
CLIP, WIRE HARNESS, 25MM
|
1 | Ask on WhatsApp |
| 12 |
91503ZY3000
COLLAR, UNIT
|
3 | Ask on WhatsApp |
| 13 |
34750ZY3A01
CONTROL UNIT, ELECTRONIC
|
1 | Ask on WhatsApp |
| 13 |
34750ZY3A02
CONTROL UNIT, ELECTRONIC -- 26 --
|
1 | Ask on WhatsApp |
