bf225a6
Section FOP-7: WATER PUMP IMPELLER SET (v2)

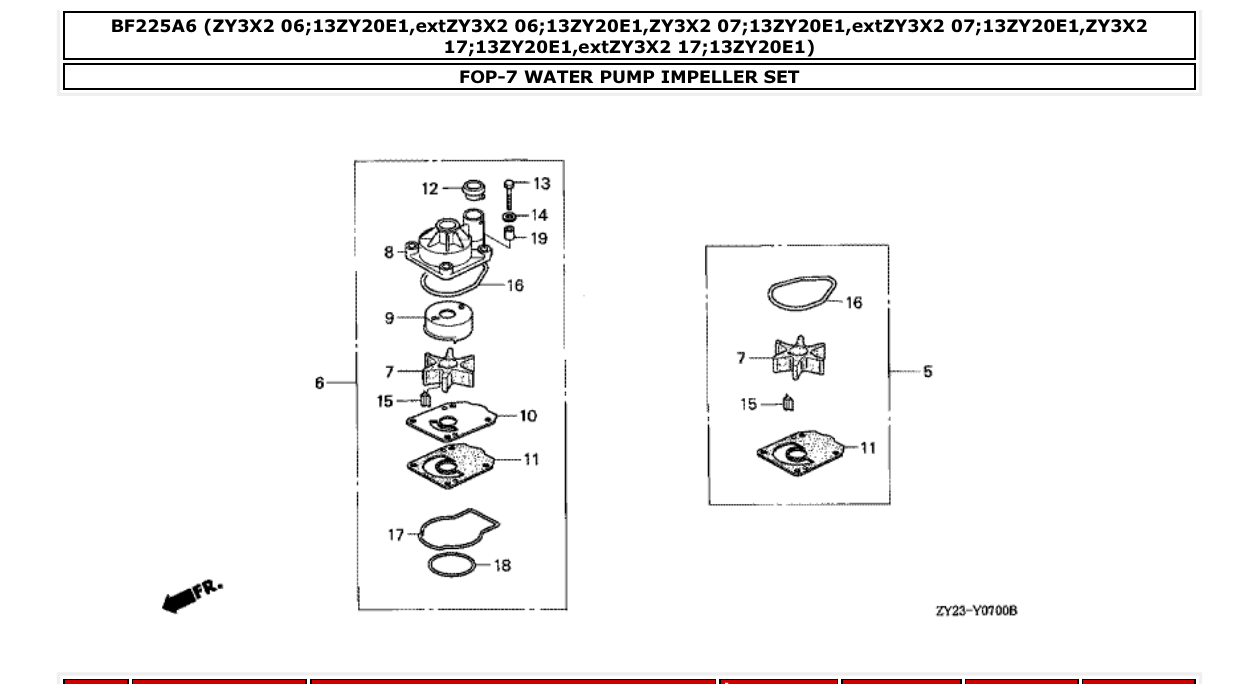

Diagram for section FOP-7: WATER PUMP IMPELLER SET.
| Ref | Part No. | Qty | Buy |
|---|---|---|---|
| 5 |
06192ZY3000
PUMP KIT, IMPELLER
|
1 | Ask on WhatsApp |
| 6 |
06193ZY3000
PUMP KIT, IMPELLER
|
1 | Ask on WhatsApp |
| 7 |
19210ZY3003
IMPELLER, PUMP
|
1 | Ask on WhatsApp |
| 8 |
19221ZY3000
HOUSING, IMPELLER
|
1 | Ask on WhatsApp |
| 9 |
19223ZY3000
LINER, PUMP
|
1 | Ask on WhatsApp |
| 10 |
19231ZY3000
COVER, IMPELLER
|
1 | Ask on WhatsApp |
| 11 |
19234ZY3000
GASKET B, IMPELLER
|
1 | Ask on WhatsApp |
| 12 |
19253ZY3000
RING, WATER TUBE SEAL
|
1 | Ask on WhatsApp |
| 13 |
90116ZY3000
BOLT, HEX., 8X60
|
4 | Ask on WhatsApp |
| 14 |
90514921000
WASHER, 8MM
|
4 | Ask on WhatsApp |
| 15 |
90752ZY3003
KEY, WOODRUFF
|
1 | Ask on WhatsApp |
| 16 |
91356ZY3003
O-RING, WATER PUMP
|
1 | Ask on WhatsApp |
| 17 |
91358ZY3003
O-RING, WATER PUMP HOUSING
|
1 | Ask on WhatsApp |
| 18 |
91359ZY3003
O-RING, 69.1X2.4
|
1 | Ask on WhatsApp |
| 19 |
91551ZY3000
COLLAR, DISTANCE -- 83 --
|
4 | Ask on WhatsApp |
