Section F-9: MOUNT CASE (v2)

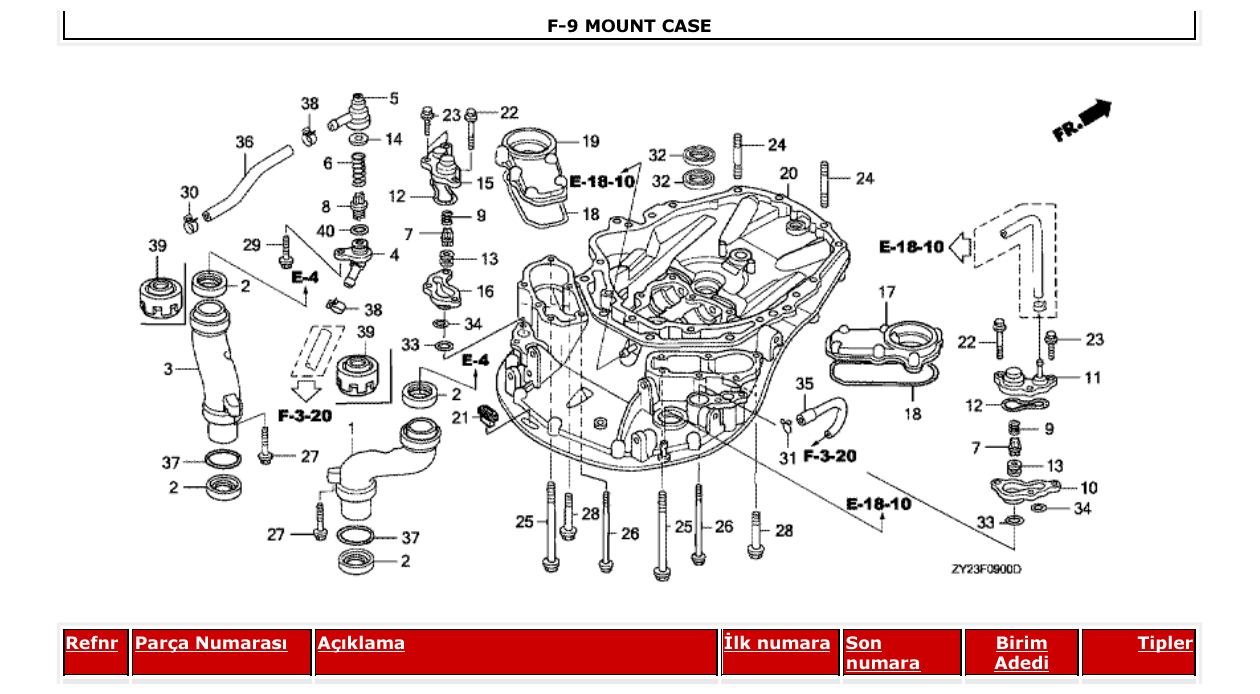

Diagram for section F-9: MOUNT CASE.
| Ref | Part No. | Qty | Buy |
|---|---|---|---|
| 1 |
18141ZY3A00ZA
GUIDE, R. EX. *TGRAY *
|
1 | Ask on WhatsApp |
| 2 |
18148ZY3003
SEAL, EXHAUST GUIDE
|
2 | Ask on WhatsApp |
| 3 |
18151ZY3A00ZA
GUIDE, L. EX. *TGRAY *
|
1 | Ask on WhatsApp |
| 4 |
19277ZY3000ZA
COVER, FLUSH VALVE *NH8 *
|
1 | Ask on WhatsApp |
| 5 |
19278ZY3000
CASE, FLUSH VALVE
|
1 | Ask on WhatsApp |
| 6 |
19279ZW9000
SPRING, FLUSH VALVE
|
1 | Ask on WhatsApp |
| 7 |
19291ZW5000
VALVE, RELIEF
|
2 | Ask on WhatsApp |
| 8 |
19291ZW9000
VALVE, FLASH
|
1 | Ask on WhatsApp |
| 9 |
19292ZW5000
SPRING, RELIEF VALVE
|
2 | Ask on WhatsApp |
| 10 |
19294ZY3000ZB
SPACER, R. RELIEF VALVE *TGRAY *
|
1 | Ask on WhatsApp |
| 11 |
19295ZY3000
COVER, R. RELIEF VALVE
|
1 | Ask on WhatsApp |
| 12 |
19296ZY3000
PACKING, RELIEF VALVE COVER
|
2 | Ask on WhatsApp |
| 13 |
19297ZW5000
PACKING, RELIEF VALVE
|
2 | Ask on WhatsApp |
| 14 |
19297ZW9000
PACKING, FLASH VALVE
|
1 | Ask on WhatsApp |
| 15 |
19297ZY3000
COVER, L. RELIEF VALVE
|
1 | Ask on WhatsApp |
| 16 |
19298ZY3000ZA
SPACER, L. RELIEF VALVE *NH8 *
|
1 | Ask on WhatsApp |
| 16 |
19298ZY3000ZB
SPACER, L. RELIEF VALVE *TGRAY *
|
1 | Ask on WhatsApp |
| 17 |
19361ZY3000ZA
COVER, R. WATER JACKET *NH8 *
|
1 | Ask on WhatsApp |
| 18 |
19362ZY3000
PACKING, WATER JACKET COVER
|
2 | Ask on WhatsApp |
| 19 |
19366ZY3000ZA
COVER, L. WATER JACKET *NH8 *
|
1 | Ask on WhatsApp |
| 20 |
23170ZY3010ZA
CASE COMP., MOUNT *NH8 *
|
1 | Ask on WhatsApp |
| 20 |
23170ZY3020ZA
CASE COMP., MOUNT *NH8 *
|
1 | Ask on WhatsApp |
| 20 |
23170ZY3030ZA
CASE COMP., MOUNT *NH8*
|
1 | Ask on WhatsApp |
| 21 |
23173ZY3000
RUBBER, MOUNT CASE SEAL
|
1 | Ask on WhatsApp |
| 22 |
90025ZY3000
BOLT, FLANGE, 6X22
|
2 | Ask on WhatsApp |
| 22 |
90030ZY3000
BOLT, FLANGE, 6X22
|
2 | Ask on WhatsApp |
| 23 |
90031ZY3000
BOLT, FLANGE, 6X32
|
4 | Ask on WhatsApp |
| 24 |
90045ZY3000
BOLT, STUD, 10X45
|
2 | Ask on WhatsApp |
| 25 |
90046ZY3000
BOLT, FLANGE, 8X100
|
2 | Ask on WhatsApp |
| 26 |
90047ZY3000
BOLT-WASHER, 6X121
|
6 | Ask on WhatsApp |
| 27 |
90048ZY3000
BOLT, FLANGE, 6X40
|
2 | Ask on WhatsApp |
| 27 |
90207HW1671
BOLT, FLANGE, 6X40
|
2 | Ask on WhatsApp |
| 28 |
90049ZY3000
BOLT, FLANGE, 8X30
|
4 | Ask on WhatsApp |
| 29 |
90059ZY3000
BOLT-WASHER, 6X29
|
1 | Ask on WhatsApp |
| 30 |
16163GHB610
CLIP, TUBE
|
1 | Ask on WhatsApp |
| 31 |
90603ZV4000
CLIP, TUBE (B10)
|
1 | Ask on WhatsApp |
| 32 |
91202ZW5003
SEAL, WATER, 22X35X7
|
2 | Ask on WhatsApp |
| 33 |
91305ZY3003
O-RING, 33.5X2 -- 50 --
|
2 | Ask on WhatsApp |
