bf225a6
Section F-4: WATER PUMP/VERTICAL SHAFT (v2)

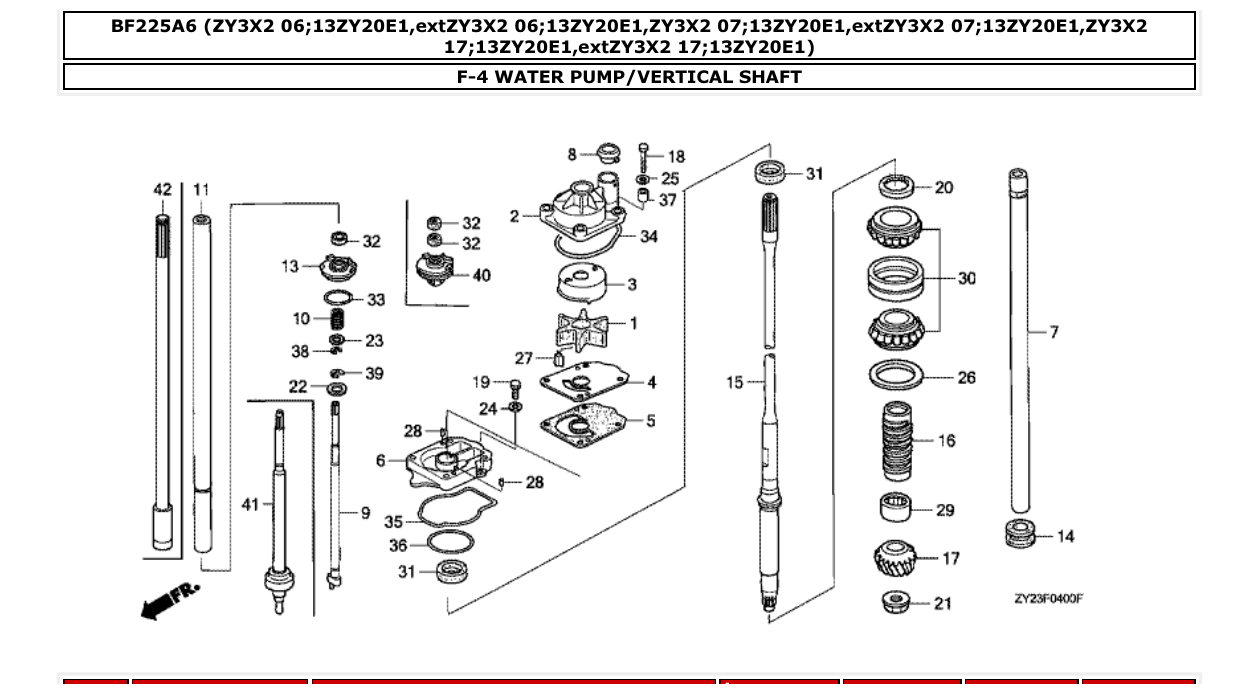

Diagram for section F-4: WATER PUMP/VERTICAL SHAFT.
| Ref | Part No. | Qty | Buy |
|---|---|---|---|
| 1 |
19210ZY3003
IMPELLER, PUMP
|
1 | Ask on WhatsApp |
| 2 |
19221ZY3000
HOUSING, IMPELLER
|
1 | Ask on WhatsApp |
| 3 |
19223ZY3000
LINER, PUMP
|
1 | Ask on WhatsApp |
| 4 |
19231ZY3000
COVER, IMPELLER
|
1 | Ask on WhatsApp |
| 5 |
19234ZY3000
GASKET B, IMPELLER
|
1 | Ask on WhatsApp |
| 6 |
19241ZY3000
HOUSING, WATER PUMP
|
1 | Ask on WhatsApp |
| 7 |
19251ZY3000
TUBE, WATER (L)
|
1 | Ask on WhatsApp |
| 7 |
19251ZY3610
TUBE, WATER (XL)
|
1 | Ask on WhatsApp |
| 8 |
19253ZY3000
RING, WATER TUBE SEAL
|
1 | Ask on WhatsApp |
| 10 |
24318ZY3000
SPRING, SHIFT ROD
|
1 | Ask on WhatsApp |
| 14 |
40204ZY3000
GROMMET, EXTENSION CASE
|
1 | Ask on WhatsApp |
| 15 |
41112ZY3000
SHAFT, VERTICAL (L)
|
1 | Ask on WhatsApp |
| 15 |
41112ZY3610
SHAFT, VERTICAL (XL)
|
1 | Ask on WhatsApp |
| 16 |
41116ZY3000
SLINGER, OIL
|
1 | Ask on WhatsApp |
| 17 |
41131ZY3A00
GEAR, PINION
|
1 | Ask on WhatsApp |
| 18 |
90116ZY3000
BOLT, HEX., 8X60
|
4 | Ask on WhatsApp |
| 19 |
90127ZV4000
BOLT, HEX., 6X16
|
1 | Ask on WhatsApp |
| 20 |
90242ZW1000
NUT, LOCK, 64MM
|
1 | Ask on WhatsApp |
| 21 |
90303ZY3000
NUT, HEX., 18MM
|
1 | Ask on WhatsApp |
| 23 |
90472723000
WASHER, PLAIN, 12MM
|
1 | Ask on WhatsApp |
| 24 |
90506ZV4000
WASHER, PLAIN, 6MM
|
1 | Ask on WhatsApp |
| 25 |
90514921000
WASHER, 8MM
|
4 | Ask on WhatsApp |
| 26 |
90518ZW1B00
SHIM A, GEAR (0.10)
|
1 | Ask on WhatsApp |
| 26 |
90519ZW1B00
SHIM B, GEAR (0.15)
|
1 | Ask on WhatsApp |
| 26 |
90520ZW1B00
SHIM C, GEAR (0.30)
|
1 | Ask on WhatsApp |
| 26 |
90521ZW1B00
SHIM D, GEAR (0.50)
|
1 | Ask on WhatsApp |
| 27 |
90752ZY3003
KEY, WOODRUFF
|
1 | Ask on WhatsApp |
| 28 |
90756ZV5000
DOWEL PIN, 6X10
|
2 | Ask on WhatsApp |
| 29 |
91053ZY3003
BEARING, NEEDLE, 32X46X37
|
1 | Ask on WhatsApp |
| 30 |
91054ZW1B31
BEARING, TAPER ROLLER, 30X62X40
|
1 | Ask on WhatsApp |
| 31 |
91251ZY3003
SEAL, WATER, 26X42X7
|
2 | Ask on WhatsApp |
| 32 |
91254ZY3003
SEAL, WATER, 12X21X6
|
2 | Ask on WhatsApp |
| 33 |
91308MJ0003
O-RING
|
1 | Ask on WhatsApp |
| 34 |
91356ZY3003
O-RING, WATER PUMP
|
1 | Ask on WhatsApp |
| 35 |
91358ZY3003
O-RING, WATER PUMP HOUSING
|
1 | Ask on WhatsApp |
| 36 |
91359ZY3003
O-RING, 69.1X2.4 -- 34 --
|
1 | Ask on WhatsApp |
