Section F-15: REMOTE CONTROL (v2)

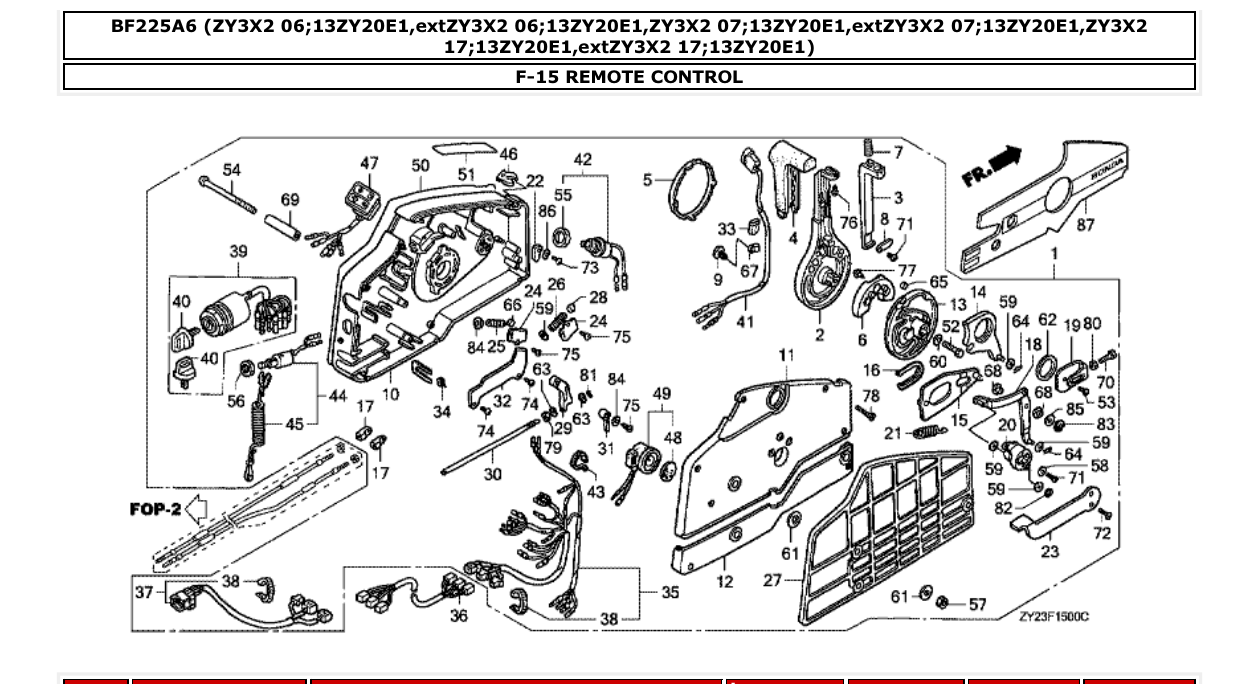

Diagram for section F-15: REMOTE CONTROL.
| Ref | Part No. | Qty | Buy |
|---|---|---|---|
| 1 |
24800ZW4H11
BOX ASSY., REMOTE CONTROL (P/T)
|
1 | Ask on WhatsApp |
| 1 |
24800ZW4H12
BOX ASSY., REMOTE CONTROL (P/T)
|
1 | Ask on WhatsApp |
| 1 |
24800ZW4H13
BOX ASSY., REMOTE CONTROL (P/T)
|
1 | Ask on WhatsApp |
| 1 |
24800ZW4H14
BOX ASSY., REMOTE CONTROL (P/T) (2-LED)
|
1 | Ask on WhatsApp |
| 1 |
24800ZY3010
BOX ASSY., REMOTE CONTROL
|
1 | Ask on WhatsApp |
| 2 |
24811ZV5000
HANDLE, REMOTE CONTROL
|
1 | Ask on WhatsApp |
| 2 |
24811ZV5010
HANDLE, REMOTE CONTROL
|
1 | Ask on WhatsApp |
| 3 |
24812ZV5000
LEVER, HANDLE LOCK
|
1 | Ask on WhatsApp |
| 4 |
24813ZV5000
GRIP, REMOTE CONTROL HANDLE
|
1 | Ask on WhatsApp |
| 5 |
24814ZV5010
CAP, HANDLE
|
1 | Ask on WhatsApp |
| 6 |
24815ZV5000
BLOCK, NEUTRAL LOCK
|
1 | Ask on WhatsApp |
| 6 |
24815ZV5010
BLOCK, NEUTRAL LOCK
|
1 | Ask on WhatsApp |
| 7 |
24816ZV5000
SPRING, REMOTE CONTROL HANDLE
|
1 | Ask on WhatsApp |
| 8 |
24817ZV5000
PLATE, LEVER SETTING
|
1 | Ask on WhatsApp |
| 9 |
24818ZV5003
CLAMP, HARNESS
|
1 | Ask on WhatsApp |
| 10 |
24820ZV5000
HOUSING COMP., REMOTE CONTROL BOX (A)
|
1 | Ask on WhatsApp |
| 10 |
24820ZV5010
HOUSING COMP., REMOTE CONTROL BOX (A)
|
1 | Ask on WhatsApp |
| 11 |
24830ZV5010
HOUSING COMP., REMOTE CONTROL BOX (B)
|
1 | Ask on WhatsApp |
| 12 |
24836ZV5000
HOUSING, REMOTE CONTROL BOX (C)
|
1 | Ask on WhatsApp |
| 13 |
24841ZV5000
WHEEL, CONTROL
|
1 | Ask on WhatsApp |
| 14 |
24845ZV5000
ARM COMP., SHIFT LINK
|
1 | Ask on WhatsApp |
| 15 |
24850ZV5000
PLATE COMP., SLIDING
|
1 | Ask on WhatsApp |
| 16 |
24854ZV5000
COLLAR, SLIDING PLATE
|
1 | Ask on WhatsApp |
| 17 |
24855ZV5000
PIVOT, SHIFT
|
2 | Ask on WhatsApp |
| 18 |
24860ZV5000
ARM COMP., LINK JOINT
|
1 | Ask on WhatsApp |
| 19 |
24865ZV5000
BRACKET, LINK JOINT
|
1 | Ask on WhatsApp |
| 20 |
24875ZV5000
WHEEL, ACCELERATOR
|
1 | Ask on WhatsApp |
| 21 |
24876ZV5000
SPRING, ACCELERATOR WHEEL
|
1 | Ask on WhatsApp |
| 22 |
24877ZV5000
CAM, STARTER SWITCH
|
1 | Ask on WhatsApp |
| 23 |
24878ZV5000
LEVER, IDLE
|
1 | Ask on WhatsApp |
| 24 |
24881ZV5000
PLATE, SPRING SETTING
|
2 | Ask on WhatsApp |
| 25 |
24883ZV5000
SPRING, SHIFT CLICK
|
1 | Ask on WhatsApp |
| 26 |
24884ZV5000
SPRING, CHOKE RETURN
|
1 | Ask on WhatsApp |
| 27 |
24885ZV5000
SPACER, REMOTE CONTROL BOX
|
1 | Ask on WhatsApp |
| 28 |
24887ZV5000
SPACER, CLICK SPRING
|
1 | Ask on WhatsApp |
| 29 |
24891ZV5000
BLOCK, THROTTLE FRICTION -- 60 --
|
1 | Ask on WhatsApp |
