bf225a6
Section F-8: ENGINE COVER (v2)

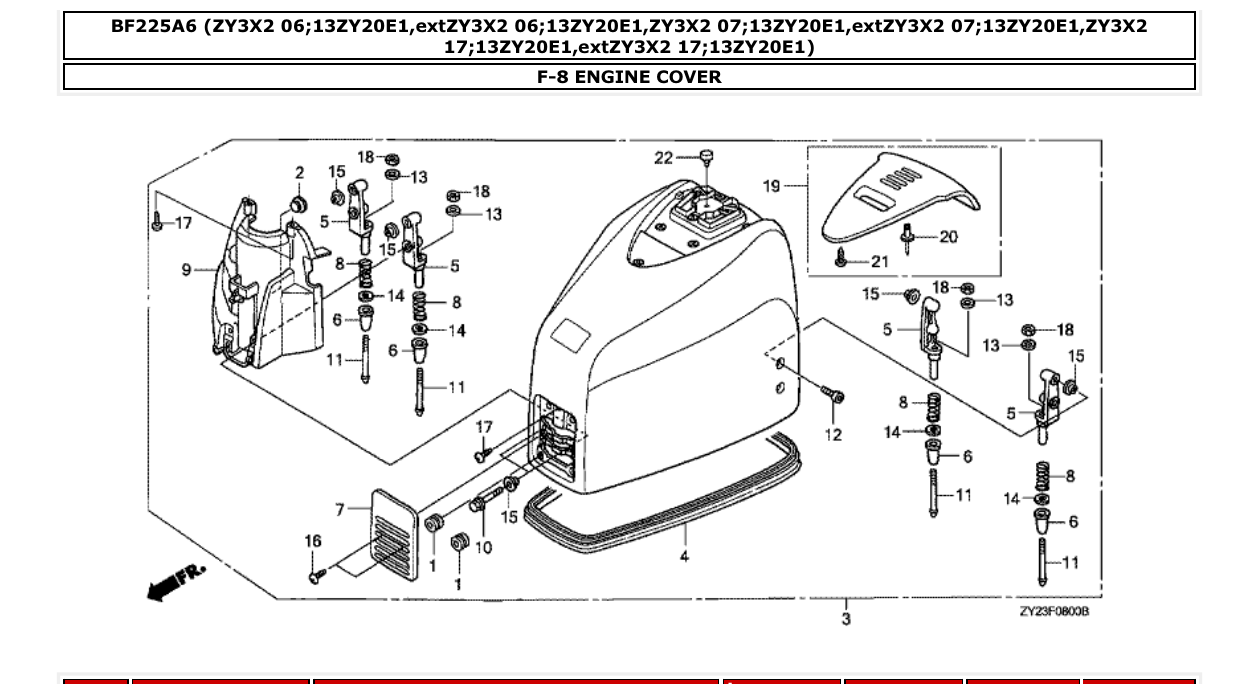

Diagram for section F-8: ENGINE COVER.
| Ref | Part No. | Qty | Buy |
|---|---|---|---|
| 1 |
17251KE8690
GROMMET, AIR CLEANER CASE
|
4 | Ask on WhatsApp |
| 1 |
88163ZY3U00
COVER, ENGINE -- 86 --
|
1 | Ask on WhatsApp |
| 2 |
32104538308
GROMMET, WIRE CORD
|
1 | Ask on WhatsApp |
| 3 |
63100ZY3010ZA
COVER ASSY., ENGINE *NH282MU *
|
1 | Ask on WhatsApp |
| 3 |
63100ZY3020ZA
COVER ASSY., ENGINE *NH282MU *
|
1 | Ask on WhatsApp |
| 3 |
63100ZY3030ZA
COVER ASSY., ENGINE *NH282MU *
|
1 | Ask on WhatsApp |
| 3 |
63100ZY3040ZA
COVER ASSY., ENGINE *NH282MU*
|
1 | Ask on WhatsApp |
| 3 |
63100ZY3050ZA
COVER ASSY., ENGINE *NH282MU*
|
1 | Ask on WhatsApp |
| 4 |
63102ZY3000
SEAL, ENGINE COVER
|
1 | Ask on WhatsApp |
| 4 |
63102ZY3010
SEAL, ENGINE COVER
|
1 | Ask on WhatsApp |
| 5 |
63107ZY3000
BRACKET, HOOK
|
4 | Ask on WhatsApp |
| 6 |
63108ZY3000
DAMPER, HOOK
|
4 | Ask on WhatsApp |
| 7 |
63111ZY3300ZA
COVER, FR. *NH282MU *
|
1 | Ask on WhatsApp |
| 7 |
63111ZY3310ZA
COVER,FRONT *NH282MU*
|
1 | Ask on WhatsApp |
| 8 |
63119ZY3000
SPRING, LOCK ADJUSTER
|
4 | Ask on WhatsApp |
| 9 |
63143ZY3000
DUCT, ENGINE COVER
|
1 | Ask on WhatsApp |
| 10 |
90105ZW9000
BOLT, FLANGE, 6X20
|
4 | Ask on WhatsApp |
| 11 |
90109ZY3000
BOLT, COVER LOCK
|
4 | Ask on WhatsApp |
| 12 |
90133ZY3000
BOLT, SOCKET, 6X16
|
4 | Ask on WhatsApp |
| 13 |
90504921010
WASHER, PLAIN, 6MM
|
4 | Ask on WhatsApp |
| 14 |
90507ZY3000
WASHER, PLAIN, 12MM
|
4 | Ask on WhatsApp |
| 15 |
91556ZY3000
COLLAR, DISTANCE, 6.5X9X3
|
12 | Ask on WhatsApp |
| 16 |
93911141J0
SCREW, TAPPING, 4X10
|
2 | Ask on WhatsApp |
| 17 |
93913141J0
SCREW, TAPPING, 4X10
|
3 | Ask on WhatsApp |
| 18 |
94002064900S
NUT, HEX., 6MM
|
4 | Ask on WhatsApp |
| 19 |
06631ZY3305ZA
COVER KIT, TOP *NH282MU *
|
1 | Ask on WhatsApp |
| 20 |
90852ZY3300
RIVET (4.1X27.7)
|
7 | Ask on WhatsApp |
| 21 |
93913141J0
SCREW, TAPPING, 4X10
|
1 | Ask on WhatsApp |
| 22 |
9501162000
RUBBER B, STAND STOPPER -- 46 --
|
1 | Ask on WhatsApp |
