bf225a6
Section E-6: OIL PAN (v2)

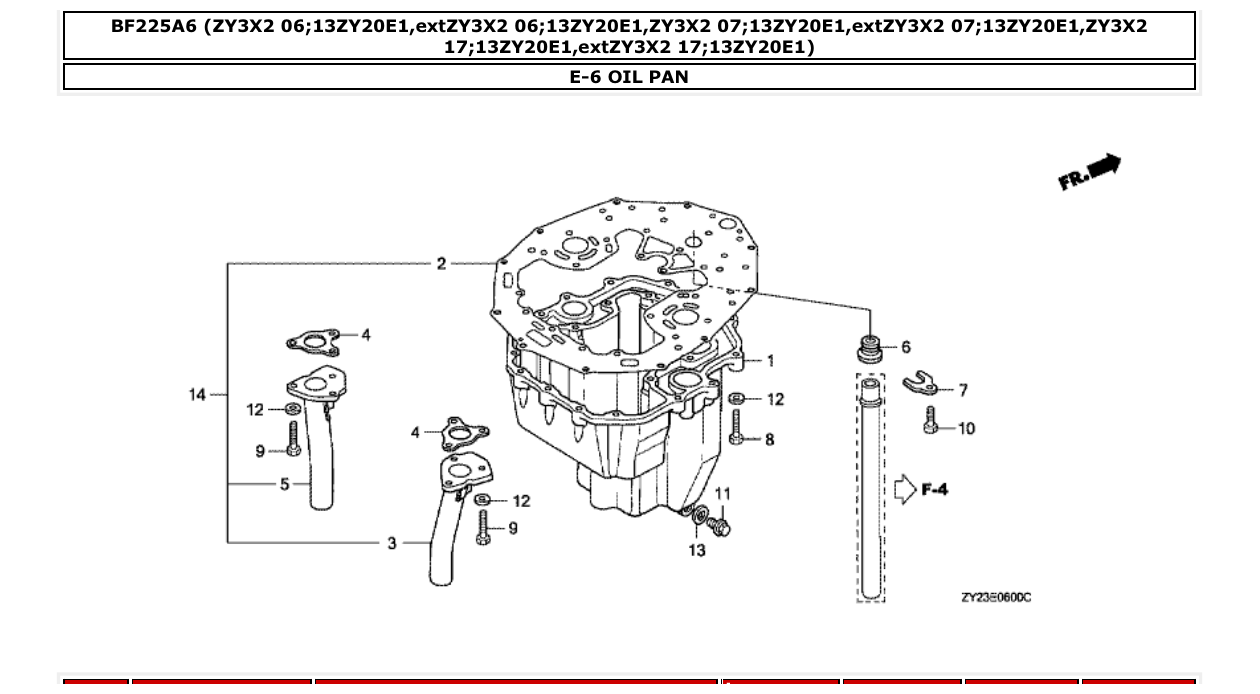

Diagram for section E-6: OIL PAN.
| Ref | Part No. | Qty | Buy |
|---|---|---|---|
| 1 |
11311ZY3000ZA
PAN, OIL *TGRAY *
|
1 | Ask on WhatsApp |
| 1 |
11311ZY3010ZA
PAN, OIL *TGRAY *
|
1 | Ask on WhatsApp |
| 2 |
11381ZY3003
PACKING, OIL PAN
|
1 | Ask on WhatsApp |
| 2 |
11381ZY3013
PACKING, OIL PAN
|
1 | Ask on WhatsApp |
| 3 |
18330ZY3020
PIPE COMP., R. EX.
|
1 | Ask on WhatsApp |
| 4 |
18333ZY3003
GASKET, EX. PIPE
|
2 | Ask on WhatsApp |
| 5 |
18340ZY3020
PIPE COMP., L. EX.
|
1 | Ask on WhatsApp |
| 6 |
19252ZY3000
GROMMET, WATER TUBE
|
1 | Ask on WhatsApp |
| 7 |
19254ZY3000
PLATE, WATER TUBE
|
1 | Ask on WhatsApp |
| 8 |
90009ZV5000
BOLT, HEX., 8X35
|
21 | Ask on WhatsApp |
| 9 |
90053ZY3010
BOLT, HEX., 8X28
|
6 | Ask on WhatsApp |
| 10 |
90127ZV4000
BOLT, HEX., 6X16
|
1 | Ask on WhatsApp |
| 11 |
90131ZV5000
BOLT, DRAIN PLUG
|
1 | Ask on WhatsApp |
| 12 |
90401ZW1000
WASHER, PLAIN, 8MM
|
27 | Ask on WhatsApp |
| 13 |
90601ZE2000
WASHER, DRAIN PLUG, 12MM
|
1 | Ask on WhatsApp |
| 14 |
04101ZY3000
PIPE COMP. KIT, EXHAUST -- 9 --
|
1 | Ask on WhatsApp |
