bf90av
Section E-2: CYLINDER HEAD (v2)

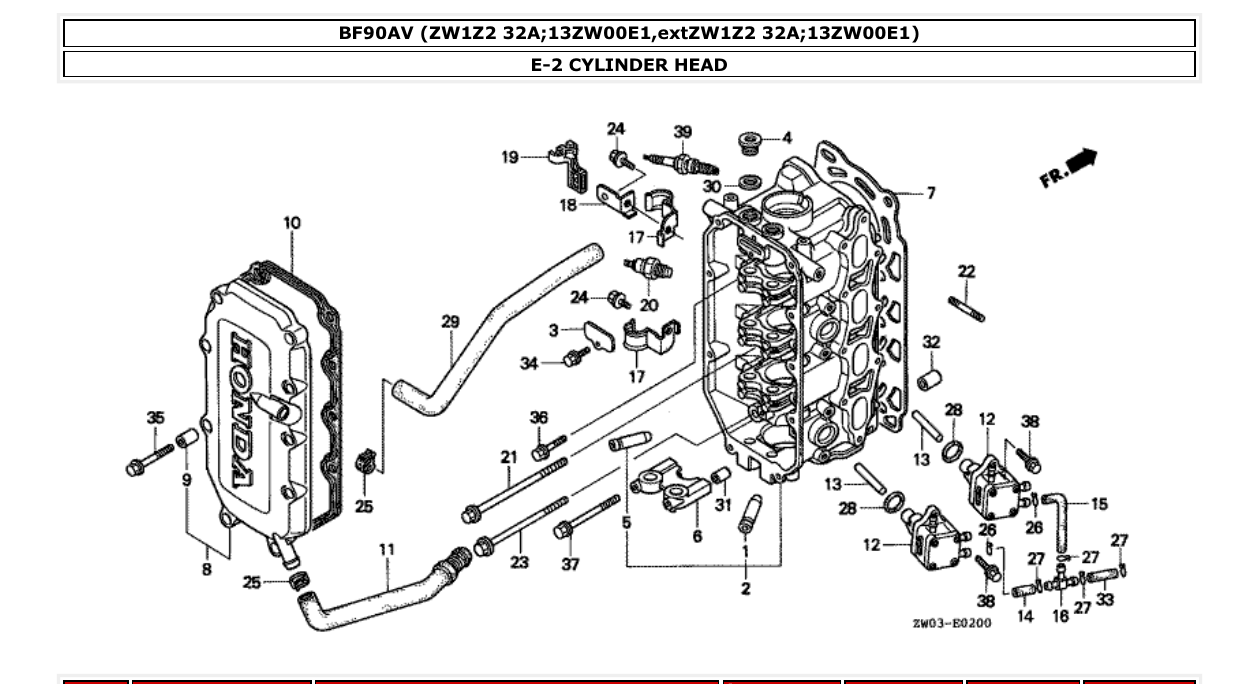

Diagram for section E-2: CYLINDER HEAD.
| Ref | Part No. | Qty | Buy |
|---|---|---|---|
| 1 |
12204ZW1305
GUIDE, IN. VALVE (OS)
|
8 | Ask on WhatsApp |
| 2 |
12210ZW1010ZA
HEAD COMP., CYLINDER *NH8 *
|
1 | Ask on WhatsApp |
| 3 |
12212ZW1000
PLATE, OIL CHAMBER
|
1 | Ask on WhatsApp |
| 4 |
12217ZW1000
BOLT, SEALING, 20MM
|
2 | Ask on WhatsApp |
| 5 |
12233MG8305
GUIDE, EX. VALVE (OS)
|
4 | Ask on WhatsApp |
| 6 |
12237ZW1000
HOLDER, CAM THRUST
|
1 | Ask on WhatsApp |
| 7 |
12251ZW1014
GASKET, CYLINDER HEAD
|
1 | Ask on WhatsApp |
| 8 |
12310ZW1000
COVER, CYLINDER HEAD
|
1 | Ask on WhatsApp |
| 9 |
12314ZV5300
COLLAR, HEAD COVER
|
9 | Ask on WhatsApp |
| 10 |
12391ZW1000
PACKING, HEAD COVER
|
1 | Ask on WhatsApp |
| 11 |
15422ZW1000
TUBE, OIL
|
1 | Ask on WhatsApp |
| 12 |
16700ZV5003
PUMP ASSY., FUEL
|
2 | Ask on WhatsApp |
| 13 |
16717ZW1000
LIFTER, FUEL PUMP
|
2 | Ask on WhatsApp |
| 14 |
16861ZW1000
TUBE B, FUEL
|
1 | Ask on WhatsApp |
| 15 |
16871ZW1000
TUBE C, FUEL
|
1 | Ask on WhatsApp |
| 16 |
17195MN5000
T-JOINT
|
1 | Ask on WhatsApp |
| 17 |
19416ZW1000
CLAMP, HOSE
|
2 | Ask on WhatsApp |
| 18 |
32761PM3000
STAY A, HIGH TENSION CORD CLAMP
|
1 | Ask on WhatsApp |
| 19 |
32765PM3000
CLAMP A, HIGH TENSION CORD
|
1 | Ask on WhatsApp |
| 20 |
35670ZW1013
SWITCH ASSY., THERMOSTAT
|
1 | Ask on WhatsApp |
| 21 |
90005PM3003
BOLT-WASHER, 10X140 (SAGA)
|
8 | Ask on WhatsApp |
| 22 |
90006ZW1000
BOLT, STUD, 8X22
|
2 | Ask on WhatsApp |
| 23 |
90008PZ1003
BOLT-WASHER, 10X120.5 (SAGA)
|
2 | Ask on WhatsApp |
| 24 |
90013ZV0000
BOLT, FLANGE, 6X12
|
2 | Ask on WhatsApp |
| 25 |
90602ZV5013
CLAMP, TUBE (D22)
|
1 | Ask on WhatsApp |
| 26 |
90603ZV4000
CLIP, TUBE (B10)
|
2 | Ask on WhatsApp |
| 27 |
90604881000
CLIP, TUBE (B12)
|
4 | Ask on WhatsApp |
| 28 |
91306921000
O-RING, 20.8X2.4
|
2 | Ask on WhatsApp |
| 29 |
91401ZW1000
TUBE, BREATHER
|
1 | Ask on WhatsApp |
| 30 |
9410920000
WASHER, DRAIN PLUG, 20MM
|
2 | Ask on WhatsApp |
| 31 |
9430108140
DOWEL PIN, 8X14
|
2 | Ask on WhatsApp |
| 32 |
9430112160
PIN A, DOWEL, 12X16
|
2 | Ask on WhatsApp |
| 33 |
950017505540
TUBE, FUEL, 7.3X55 (95001-75001-60M)
|
1 | Ask on WhatsApp |
| 34 |
957010601209
BOLT, FLANGE, 6X12
|
1 | Ask on WhatsApp |
| 35 |
957010603502
BOLT, FLANGE, 6X35
|
9 | Ask on WhatsApp |
| 36 |
957010804002
BOLT, FLANGE, 8X40
|
4 | Ask on WhatsApp |
