bf90av
Section F-15-3: REMOTE CONTROL (PANEL MOUNT) (v2)

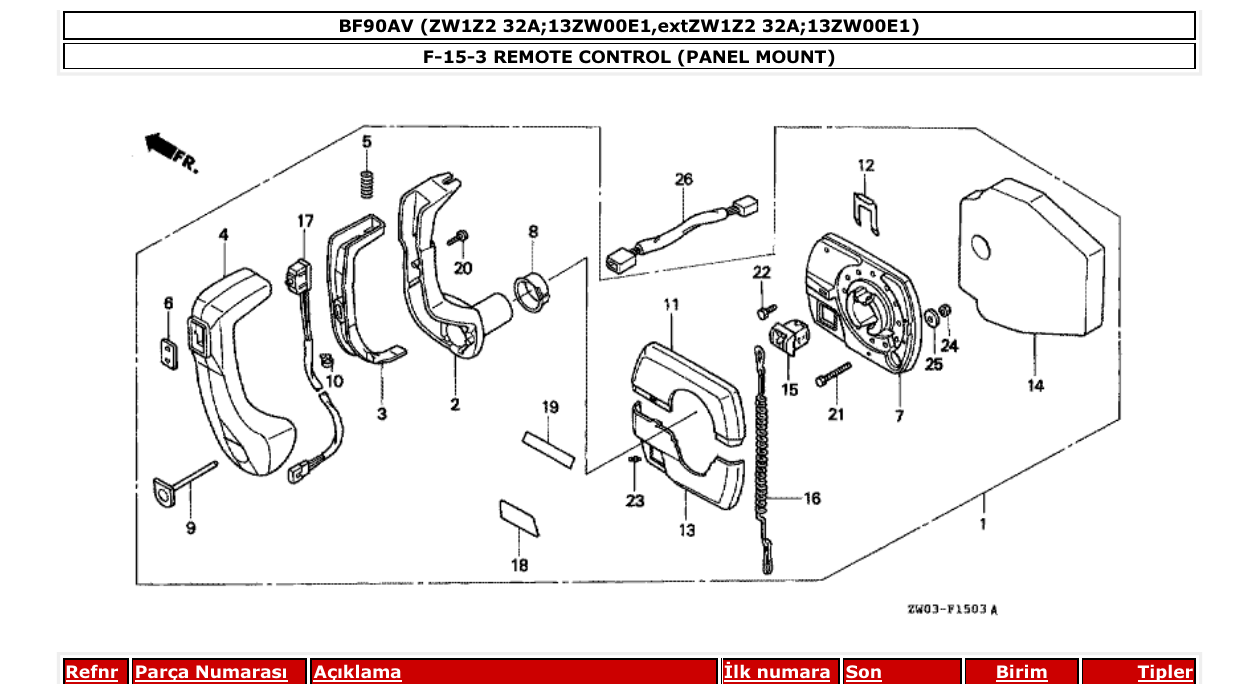

Diagram for section F-15-3: REMOTE CONTROL (PANEL MOUNT).
| Ref | Part No. | Qty | Buy |
|---|---|---|---|
| 1 |
24800ZW1V21
BOX ASSY., REMOTE CONTROL (PANEL MOUNT)
|
1 | Ask on WhatsApp |
| 2 |
24811ZW1V21
HANDLE, REMOTE CONTROL
|
1 | Ask on WhatsApp |
| 3 |
24812ZW1V21
LEVER, HANDLE LOCK
|
1 | Ask on WhatsApp |
| 4 |
24813ZW1V21
GRIP, REMOTE CONTROL HANDLE
|
1 | Ask on WhatsApp |
| 5 |
24816ZW1V21
SPRING, REMOTE CONTROL HANDLE
|
1 | Ask on WhatsApp |
| 6 |
24819ZW1V21
COVER, GRIP
|
1 | Ask on WhatsApp |
| 7 |
24820ZW1V21
HOUSING ASSY., REMOTE CONTROL BOX (A)
|
1 | Ask on WhatsApp |
| 8 |
24821ZW1003
BUSHING
|
1 | Ask on WhatsApp |
| 9 |
24822ZW1V21
BUTTON, THROTTLE
|
1 | Ask on WhatsApp |
| 10 |
24829ZW1003
BAND, CABLE (B)
|
1 | Ask on WhatsApp |
| 11 |
24830ZW1V21
HOUSING, REMOTE CONTROL BOX (B)
|
1 | Ask on WhatsApp |
| 12 |
24834ZW1003
RETAINER
|
1 | Ask on WhatsApp |
| 13 |
24836ZW1V21
HOUSING, REMOTE CONTROL BOX (C)
|
1 | Ask on WhatsApp |
| 14 |
24870ZW1V21
HOUSING ASSY., INNER (PANEL MOUNT)
|
1 | Ask on WhatsApp |
| 15 |
35180ZW1003
SWITCH ASSY., EMERGENCY STOP
|
1 | Ask on WhatsApp |
| 16 |
35182ZW1003
CORD COMP., EMERGENCY
|
1 | Ask on WhatsApp |
| 17 |
35370ZW1V01
SWITCH ASSY., POWER TRIM-TILT (A)
|
1 | Ask on WhatsApp |
| 18 |
87705ZW1003
MARK, REMOTE CONTROL (A) (PANEL)
|
1 | Ask on WhatsApp |
| 19 |
87706ZW1003
MARK, REMOTE CONTROL (B) (FOR STARBOARD)
|
1 | Ask on WhatsApp |
| 19 |
87707ZW1003
MARK, REMOTE CONTROL (C) (FOR PORT)
|
1 | Ask on WhatsApp |
| 20 |
90136ZW1003
SCREW A
|
1 | Ask on WhatsApp |
| 21 |
90137ZW1003
SCREW B
|
3 | Ask on WhatsApp |
| 22 |
90138ZW1003
SCREW C
|
3 | Ask on WhatsApp |
| 23 |
90139ZW1003
SCREW, FRICTION
|
1 | Ask on WhatsApp |
| 24 |
90314ZW1003
NUT (1/4X20)
|
3 | Ask on WhatsApp |
| 25 |
90551ZW1003
WASHER
|
3 | Ask on WhatsApp |
