Section F-15-2: REMOTE CONTROL (TOP MOUNT DUAL TYPE) (v2)

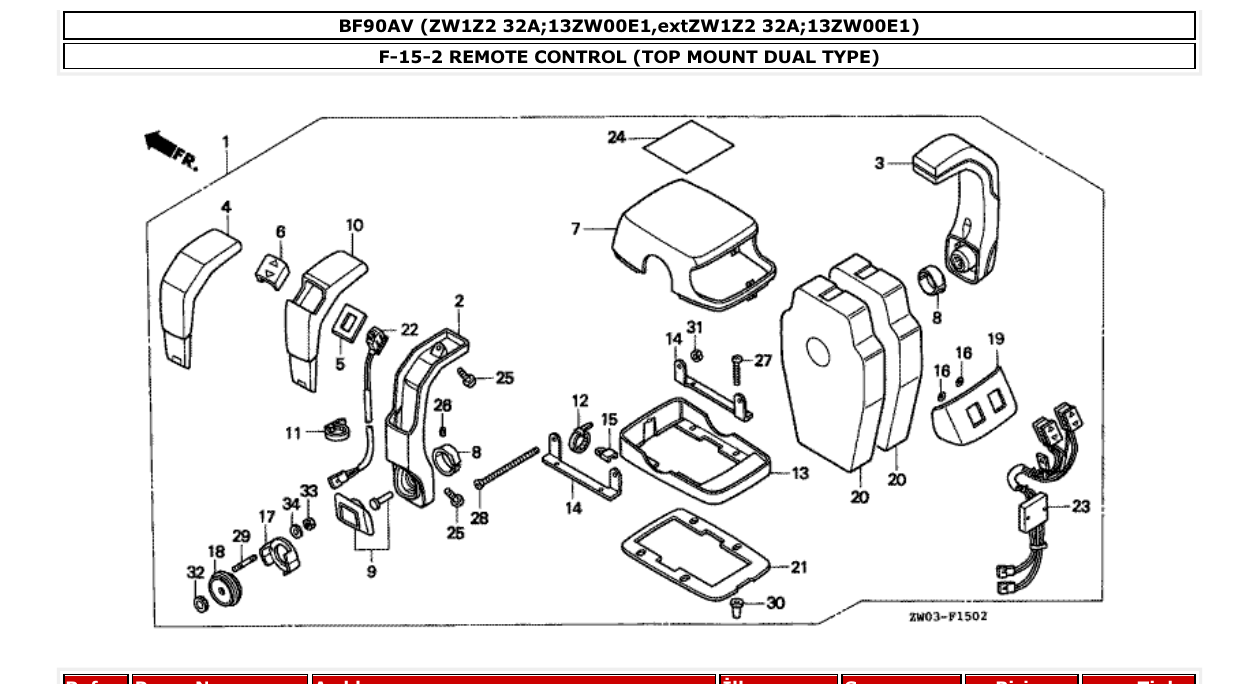

Diagram for section F-15-2: REMOTE CONTROL (TOP MOUNT DUAL TYPE).
| Ref | Part No. | Qty | Buy |
|---|---|---|---|
| 1 |
24800ZW1V11
BOX ASSY., REMOTE CONTROL (TOP MOUNT DUAL)
|
1 | Ask on WhatsApp |
| 2 |
24810ZW1V11
HANDLE ASSY., REMOTE CONTROL
|
1 | Ask on WhatsApp |
| 3 |
24811ZW1V11
HANDLE, REMOTE CONTROL
|
1 | Ask on WhatsApp |
| 4 |
24813ZW1V11
GRIP, REMOTE CONTROL HANDLE
|
1 | Ask on WhatsApp |
| 5 |
24817ZW1003
PLATE, SWITCH SETTING
|
1 | Ask on WhatsApp |
| 6 |
24819ZW1003
COVER, GRIP
|
1 | Ask on WhatsApp |
| 7 |
24820ZW1V11
HOUSING ASSY., REMOTE CONTROL BOX (A)
|
1 | Ask on WhatsApp |
| 8 |
24821ZW1003
BUSHING
|
2 | Ask on WhatsApp |
| 9 |
24822ZW1003
BUTTON ASSY.
|
2 | Ask on WhatsApp |
| 10 |
24823ZW1V11
GRIP, REMOTE CONTROL HANDLE (L)
|
1 | Ask on WhatsApp |
| 11 |
24824ZW1003
BAND, CABLE (A)
|
1 | Ask on WhatsApp |
| 12 |
24829ZW1003
BAND, CABLE (B)
|
3 | Ask on WhatsApp |
| 13 |
24830ZW1V11
HOUSING ASSY., REMOTE CONTROL BOX (B)
|
1 | Ask on WhatsApp |
| 14 |
24832ZW1003
BRACKET, REMOTE CONTROL HOUSING
|
2 | Ask on WhatsApp |
| 15 |
24833ZW1003
ANCHOR
|
1 | Ask on WhatsApp |
| 16 |
24835ZW1003
RING
|
2 | Ask on WhatsApp |
| 17 |
24837ZW1003
BRACKET, SWITCH MOUNTING
|
1 | Ask on WhatsApp |
| 18 |
24838ZW1003
PLATE ASSY., SWITCH MOUNTING
|
1 | Ask on WhatsApp |
| 19 |
24849ZW1003
MARK, REMOTE CONTROL HOUSING
|
1 | Ask on WhatsApp |
| 20 |
24870ZW1V01
HOUSING ASSY., INNER (TOP MOUNT)
|
2 | Ask on WhatsApp |
| 21 |
28434ZW1V11
GASKET
|
1 | Ask on WhatsApp |
| 22 |
35370ZW1V01
SWITCH ASSY., POWER TRIM-TILT (A)
|
1 | Ask on WhatsApp |
| 23 |
35390ZW1003
SWITCH ASSY., POWER TRIM-TILT (B)
|
1 | Ask on WhatsApp |
| 24 |
87704ZW1003
MARK, REMOTE CONTROL (DUAL)
|
1 | Ask on WhatsApp |
| 25 |
90130ZW1003
"SCREW (10-32X1"")"
|
4 | Ask on WhatsApp |
| 26 |
90131ZW1003
"SCREW SET (1/4-20X16"")"
|
2 | Ask on WhatsApp |
| 27 |
90132ZW1003
"SCREW (10-32X1-1/2"")"
|
4 | Ask on WhatsApp |
| 28 |
90133ZW1003
"SCREW (10-32X4"")"
|
2 | Ask on WhatsApp |
| 29 |
90134ZW1003
"STUD (10-32X2"")"
|
2 | Ask on WhatsApp |
| 30 |
90321ZW1003
NUT, WELDING, 10-32
|
4 | Ask on WhatsApp |
| 31 |
90322ZW1003
NUT (10-32)
|
2 | Ask on WhatsApp |
| 32 |
90323ZW1003
NUT, LOCK (15/32-32)
|
1 | Ask on WhatsApp |
| 33 |
90324ZW1003
NUT (10-32)
|
2 | Ask on WhatsApp |
| 34 |
90550ZW1003
WASHER
|
2 | Ask on WhatsApp |
