bf90av
Section E-20: IGNITION COIL/C.D.I. UNIT (v2)

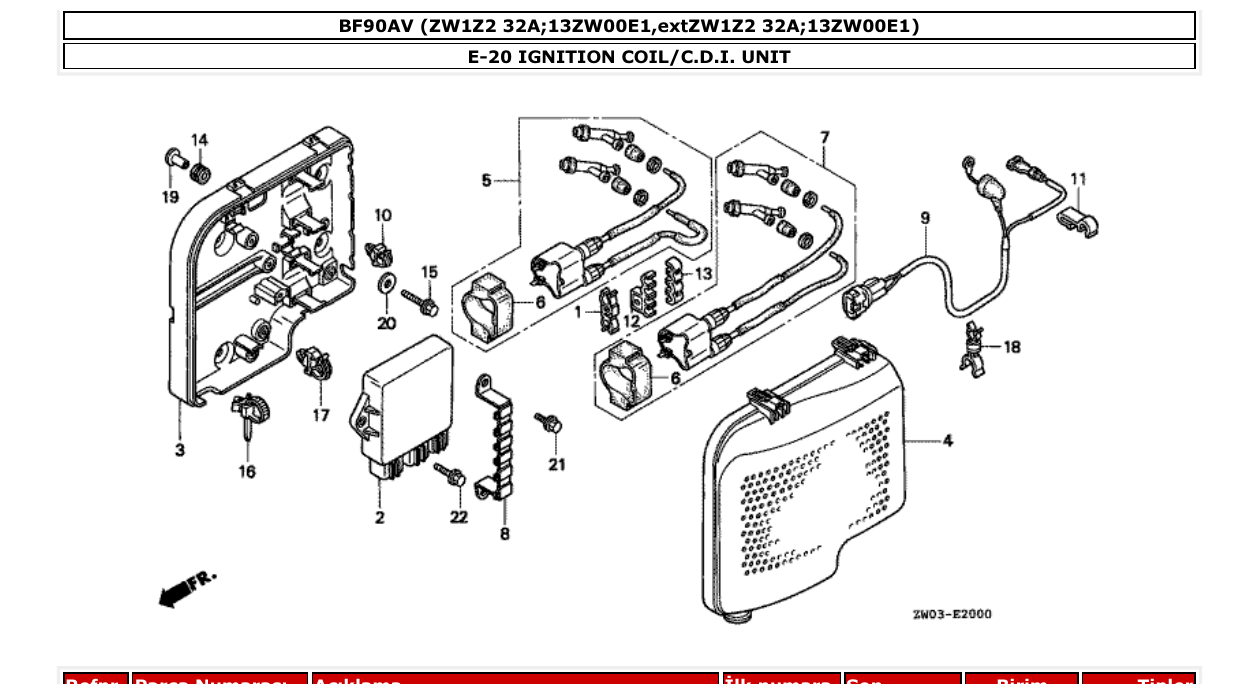

Diagram for section E-20: IGNITION COIL/C.D.I. UNIT.
| Ref | Part No. | Qty | Buy |
|---|---|---|---|
| 1 |
19786PP8003
CLAMP, INTERCOOLER RESERVE TANK TUBE
|
1 | Ask on WhatsApp |
| 2 |
30400ZW1013
C.D.I. UNIT
|
1 | Ask on WhatsApp |
| 3 |
30416ZW1000
CASE, C.D.I. UNIT
|
1 | Ask on WhatsApp |
| 4 |
30421ZW1000
COVER, C.D.I. UNIT
|
1 | Ask on WhatsApp |
| 5 |
30500ZW1004
COIL ASSY., IGNITION (1)
|
1 | Ask on WhatsApp |
| 6 |
30506ML4003
SUSPENSION, IGNITION COIL
|
2 | Ask on WhatsApp |
| 7 |
30550ZW1004
COIL ASSY., IGNITION (2)
|
1 | Ask on WhatsApp |
| 8 |
32108ZW1000
BRACKET COMP., COUPLER
|
1 | Ask on WhatsApp |
| 9 |
32193ZW1000
CORD, SWITCH
|
1 | Ask on WhatsApp |
| 10 |
32660MJ6710
CLAMPER, CORD
|
3 | Ask on WhatsApp |
| 11 |
32763PA0000
CLAMP, CORD
|
1 | Ask on WhatsApp |
| 12 |
32766PM3000
CLAMP B, HIGH TENSION CORD
|
1 | Ask on WhatsApp |
| 13 |
32777695000
CLAMP, HIGH TENSION CORD
|
1 | Ask on WhatsApp |
| 14 |
40102ZV5000
GROMMET, UNDER CASE
|
4 | Ask on WhatsApp |
| 15 |
90121ZV0000
BOLT, FLANGE, 6X25
|
4 | Ask on WhatsApp |
| 16 |
90672SA0003
STRAP, CABLE, 118MM (BLACK)
|
1 | Ask on WhatsApp |
| 17 |
90682ZV5003
CLIP, WIRE HARNESS
|
3 | Ask on WhatsApp |
| 18 |
91402ZW1003
CLIP, SWITCH CORD
|
1 | Ask on WhatsApp |
| 19 |
91553ZV5000
COLLAR, C.D.I. UNIT CASE
|
4 | Ask on WhatsApp |
| 20 |
9410306200
WASHER, PLAIN, 6MM
|
4 | Ask on WhatsApp |
| 21 |
957010601202
BOLT, FLANGE, 6X12
|
2 | Ask on WhatsApp |
| 22 |
957010601602
BOLT, FLANGE, 6X16
|
2 | Ask on WhatsApp |
