bf90av
Section F-3: GEAR CASE/EXTENSION CASE (v2)

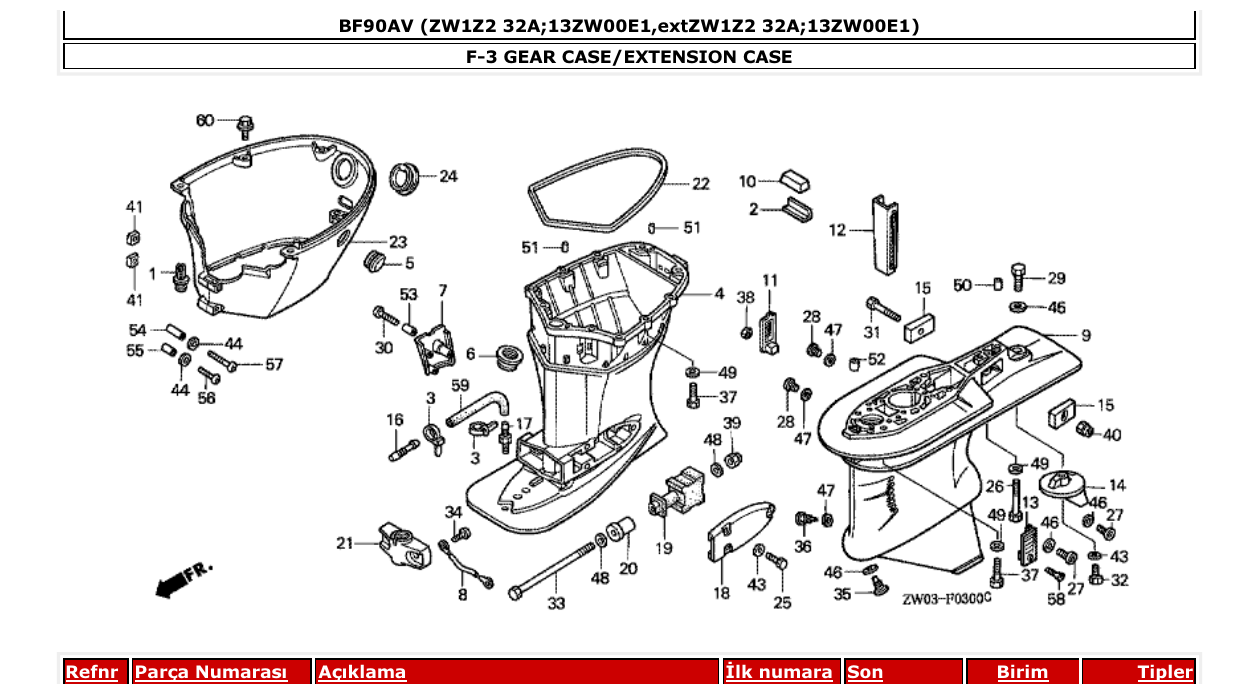

Diagram for section F-3: GEAR CASE/EXTENSION CASE.
| Ref | Part No. | Qty | Buy |
|---|---|---|---|
| 1 |
17738SP0003
CLIP, FUEL PIPE (BLACK)
|
2 | Ask on WhatsApp |
| 2 |
19286ZW1B00
PLATE, RUBBER SETTING
|
1 | Ask on WhatsApp |
| 3 |
32161KM3003
BAND, WIRE
|
2 | Ask on WhatsApp |
| 4 |
40201ZW1000ZA
CASE, EXTENSION (L) *NH282MU *
|
1 | Ask on WhatsApp |
| 4 |
40201ZW1010ZA
CASE, EXTENSION (L) *NH282MU *
|
1 | Ask on WhatsApp |
| 6 |
40209ZW1000
RUBBER, DRAIN PLUG
|
1 | Ask on WhatsApp |
| 7 |
40212ZW1000ZA
COVER, DRAIN PLUG *NH282MU *
|
1 | Ask on WhatsApp |
| 8 |
40219ZV5003
WIRE, LEAD (1.2X116MM)
|
1 | Ask on WhatsApp |
| 9 |
41101ZW1B01ZA
CASE, GEAR *NH282MU *
|
1 | Ask on WhatsApp |
| 10 |
41102ZW1B00
GROMMET, GEAR CASE
|
1 | Ask on WhatsApp |
| 11 |
41104ZV5000
SCREEN, R. WATER
|
1 | Ask on WhatsApp |
| 13 |
41105ZV5000
SCREEN, L. WATER
|
1 | Ask on WhatsApp |
| 14 |
41107ZW1B00ZA
TAB, TRIM *NH282MU *
|
1 | Ask on WhatsApp |
| 15 |
41109ZW1B00
METAL COMP., ANODE
|
2 | Ask on WhatsApp |
| 16 |
41171ZV5000
END, NIPPLE
|
1 | Ask on WhatsApp |
| 17 |
41172ZV5000
NIPPLE, SENSOR
|
1 | Ask on WhatsApp |
| 18 |
50111ZW1000ZA
HOUSING, LOWER MOUNTING *NH282MU *
|
2 | Ask on WhatsApp |
| 18 |
50111ZW1010ZA
HOUSING, LOWER MOUNTING *NH282MU *
|
2 | Ask on WhatsApp |
| 19 |
50155ZW1000
RUBBER COMP., LOWER MOUNT
|
2 | Ask on WhatsApp |
| 20 |
50156ZW1010
COLLAR, LOWER MOUNTING
|
2 | Ask on WhatsApp |
| 21 |
50161ZW1000ZA
HOUSING, LOWER CENTER MOUNTING *NH282MU *
|
1 | Ask on WhatsApp |
| 21 |
50161ZW1010ZA
HOUSING, LOWER CENTER MOUNTING *NH282MU*
|
1 | Ask on WhatsApp |
| 22 |
63702ZW1000
RUBBER, UNDER COVER
|
1 | Ask on WhatsApp |
| 23 |
63710ZW1000ZA
COVER COMP., UNDER *NH282MU *
|
1 | Ask on WhatsApp |
| 24 |
63719ZW1000
GROMMET, UNDER COVER
|
1 | Ask on WhatsApp |
| 25 |
90102ZV4000
BOLT, HEX., 8X30
|
6 | Ask on WhatsApp |
| 26 |
90104ZW1900
BOLT, HEX., 10X80
|
1 | Ask on WhatsApp |
| 27 |
90105ZV4650
BOLT, OIL CHECK, 8X8
|
2 | Ask on WhatsApp |
| 30 |
90110ZV5000
SCREW, SPECIAL, 6X35
|
1 | Ask on WhatsApp |
| 31 |
90111881000
BOLT, HEX., 6X32
|
1 | Ask on WhatsApp |
| 32 |
90115ZV5000
BOLT, HEX., 8X25
|
1 | Ask on WhatsApp |
| 33 |
90118ZW1000
BOLT, HEX., 12X225
|
2 | Ask on WhatsApp |
| 34 |
90119ZV5000
SCREW, PAN, 6X8
|
2 | Ask on WhatsApp |
| 35 |
90120ZV5003
BOLT, DRAIN PLUG, 8MM
|
1 | Ask on WhatsApp |
| 37 |
90123ZV5010
BOLT, HEX., 10X40
|
10 | Ask on WhatsApp |
