bf90av
Section E-14-10: THROTTLE CAM (v2)

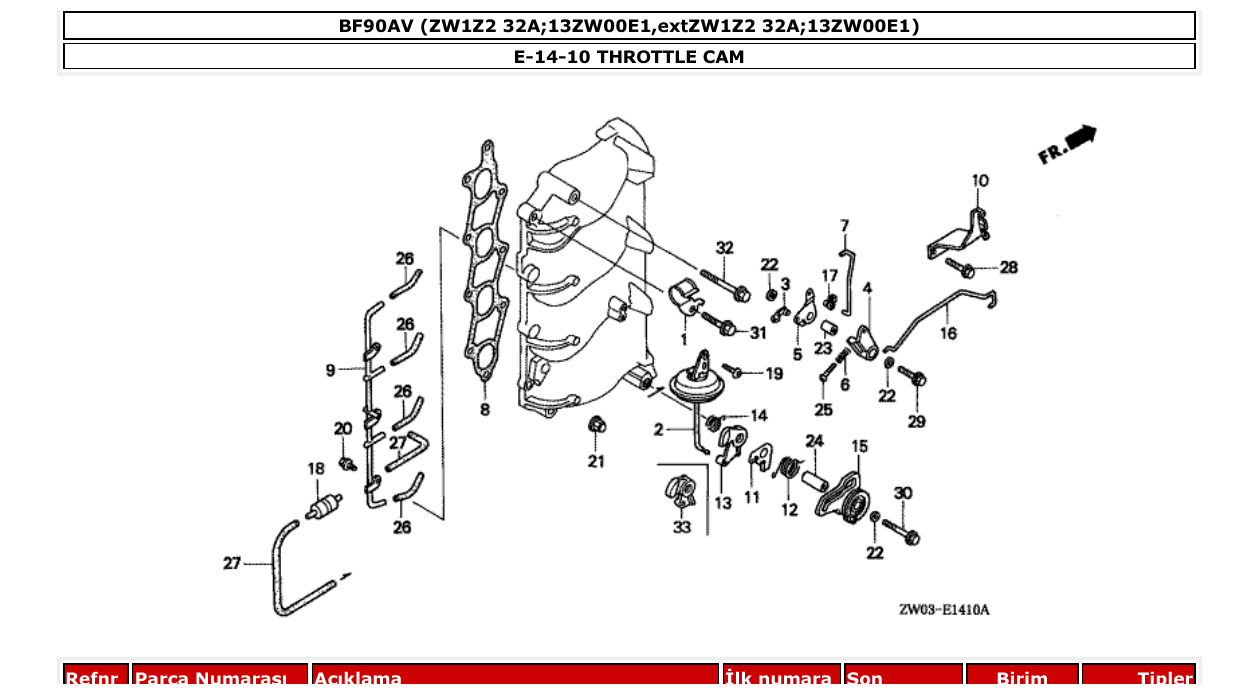

Diagram for section E-14-10: THROTTLE CAM.
| Ref | Part No. | Qty | Buy |
|---|---|---|---|
| 1 |
12328ZW1000
CLAMP, TUBE
|
1 | Ask on WhatsApp |
| 2 |
16240ZW1003
DIAPHRAGM ASSY.
|
1 | Ask on WhatsApp |
| 3 |
16263ZA0000
JOINT, ROD
|
1 | Ask on WhatsApp |
| 4 |
16574ZV5000
ARM, CHOKE (A)
|
1 | Ask on WhatsApp |
| 5 |
16575ZW1000
ARM, CHOKE (B)
|
1 | Ask on WhatsApp |
| 6 |
16659ZV5000
SPRING, CHOKE ARM ADJUSTING
|
1 | Ask on WhatsApp |
| 7 |
16674ZW1000
ROD, CHOKE
|
1 | Ask on WhatsApp |
| 8 |
17151ZW1000
PACKING, INTAKE MANIFOLD
|
1 | Ask on WhatsApp |
| 9 |
17881ZW1000
PIPE, INSTALL
|
1 | Ask on WhatsApp |
| 10 |
17926ZW1000
STAY, THROTTLE CABLE
|
1 | Ask on WhatsApp |
| 11 |
17927ZV5000
PLATE, ASSIST
|
1 | Ask on WhatsApp |
| 12 |
17928ZW1000
SPRING, ASSIST
|
1 | Ask on WhatsApp |
| 13 |
17937ZW1000
CAM, THROTTLE OPENER
|
1 | Ask on WhatsApp |
| 14 |
17938ZV5000
SPRING, OPENER CAM RETURN
|
1 | Ask on WhatsApp |
| 15 |
17946ZW1000
CAM, THROTTLE
|
1 | Ask on WhatsApp |
| 16 |
17955ZW1000
ROD, CHOKE KNOB
|
1 | Ask on WhatsApp |
| 17 |
17957ZV4000
BUSH, LINKAGE
|
1 | Ask on WhatsApp |
| 18 |
36135ZW1004
VALVE, DASHPOT SOLENOID
|
1 | Ask on WhatsApp |
| 19 |
90011ZV5003
BOLT, TORX, 6X14
|
2 | Ask on WhatsApp |
| 20 |
90019ZV1000
BOLT, FLANGE, 5X10
|
3 | Ask on WhatsApp |
| 21 |
90208438000
NUT, CAP, 8MM
|
2 | Ask on WhatsApp |
| 22 |
90511ZV4000
WASHER, PLAIN, 6MM
|
3 | Ask on WhatsApp |
| 23 |
91503ZV5000
COLLAR, DISTANCE, 6.5X10.5X16
|
1 | Ask on WhatsApp |
| 24 |
91504ZW1000
COLLAR, 6.7X12.5X31.5
|
1 | Ask on WhatsApp |
| 25 |
93500040160B
SCREW, PAN, 4X16
|
1 | Ask on WhatsApp |
| 26 |
950013505040
TUBE, FUEL, 3.5X50 (95001-35001-60M)
|
4 | Ask on WhatsApp |
| 27 |
950013508040
TUBE, FUEL, 3.5X80 (95001-35001-60M)
|
2 | Ask on WhatsApp |
| 28 |
957010601602
BOLT, FLANGE, 6X16
|
2 | Ask on WhatsApp |
| 29 |
957010603002
BOLT, FLANGE, 6X30
|
1 | Ask on WhatsApp |
| 30 |
957010604502
BOLT, FLANGE, 6X45
|
1 | Ask on WhatsApp |
| 31 |
957010803502
BOLT, FLANGE, 8X35
|
6 | Ask on WhatsApp |
| 32 |
957010807002
BOLT, FLANGE, 8X70 BF90AV (ZW1Z2 32A;13ZW00E1,extZW1Z2 32A;13ZW00E1)
|
1 | Ask on WhatsApp |
