E15DMH ’03 – section 13 BRACKET 1 parts diagram

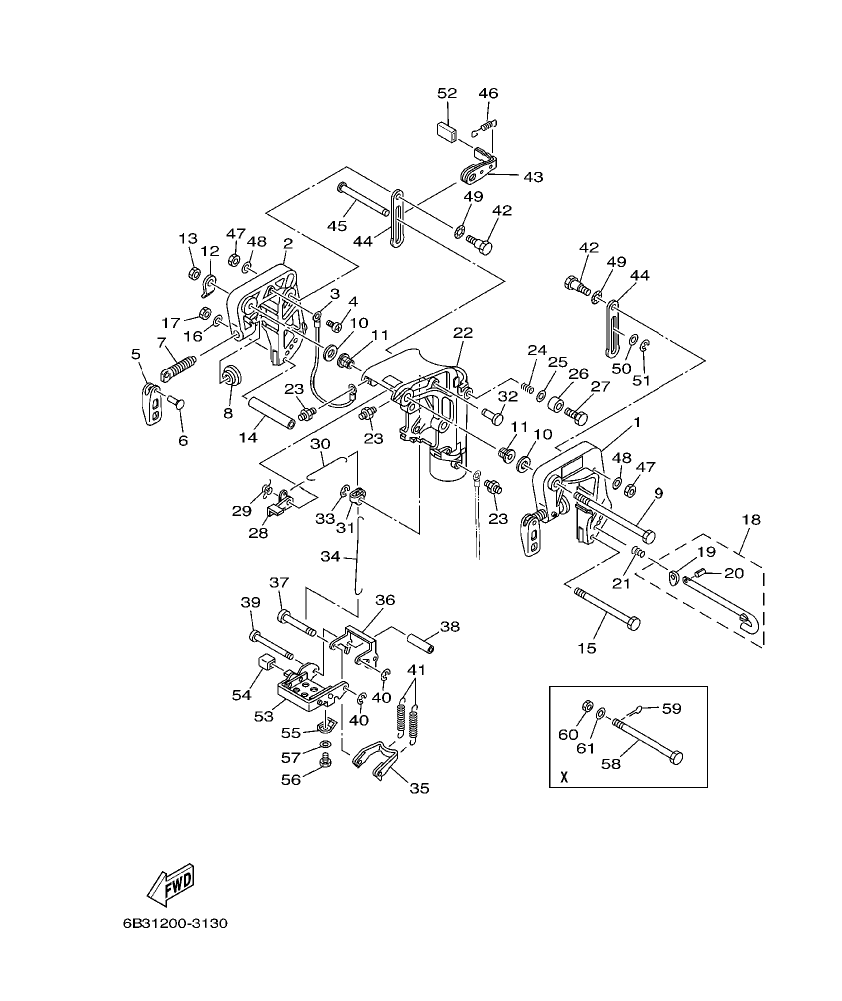

Diagram for section 13: BRACKET 1.

Ref Part No. Qty Buy
1
682-43111-05-4D
BRACKET, CLAMP
 1 Ask on WhatsApp
1
682-43111-05-4D
BRACKET, CLAMP
 1 Ask on WhatsApp
2
682-43112-05-4D
BRACKET, CLAMP
 1 Ask on WhatsApp
2
682-43112-05-4D
BRACKET, CLAMP
 1 Ask on WhatsApp
3
6E5-82148-00
WIRE, LEAD 4
 1 Ask on WhatsApp
3
6E5-82148-00
WIRE, LEAD 4
 1 Ask on WhatsApp
4
97885-06008
SCREW, PAN HEAD
 1 Ask on WhatsApp
4
97885-06008
SCREW, PAN HEAD
 1 Ask on WhatsApp
5
663-43118-01-4D
HANDLE, TRANSOM CLAMP
 2 Ask on WhatsApp
5
663-43118-01-4D
HANDLE, TRANSOM CLAMP
 2 Ask on WhatsApp
6
90243-04007
PIN
 2
Price: 6.70 AED
In stock (24 pcs)
6
90243-04007
PIN
 2
Price: 6.70 AED
In stock (24 pcs)
7
6E7-43116-00
SCREW, TRANSOM CLAMP
 2 Ask on WhatsApp
7
6E7-43116-00
SCREW, TRANSOM CLAMP
 2 Ask on WhatsApp
8
648-43114-01
PAD, TRANSOM CLAMP
 2
Price: 11.92 AED
In stock (71 pcs)
8
648-43114-01
PAD, TRANSOM CLAMP
 2
Price: 11.92 AED
In stock (71 pcs)
9
90101-12013
BOLT
 1 Ask on WhatsApp
9
90101-12013
BOLT
 1 Ask on WhatsApp
10
90201-12018
WASHER, PLATE
 2 Ask on WhatsApp
10
90201-12018
WASHER, PLATE
 2 Ask on WhatsApp
11
90381-12001
BUSH, SOLID
 2
Price: 7.45 AED
In stock (403 pcs)
11
90381-12001
BUSH, SOLID
 2
Price: 7.45 AED
In stock (403 pcs)
12
6B4-43113-00
PLATE, CLAMP BRACKET
 1 Ask on WhatsApp
12
6B4-43113-00
PLATE, CLAMP BRACKET
 1 Ask on WhatsApp
13
95780-12300
NUT, FLANGE
 1
Price: 24.58 AED
In stock (2 pcs)
13
95780-12300
NUT, FLANGE
 1
Price: 24.58 AED
In stock (2 pcs)
14
90387-06M13
COLLAR
 1 Ask on WhatsApp
14
90387-06M13
COLLAR
 1 Ask on WhatsApp
15
90101-06M29
BOLT
 1 Ask on WhatsApp
15
90101-06M29
BOLT
 1 Ask on WhatsApp
16
92990-06600
WASHER, PLATE
 1
Price: 2.98 AED
In stock (27 pcs)
16
92990-06600
WASHER, PLATE
 1
Price: 2.98 AED
In stock (27 pcs)
17
95380-06700
NUT
 1
Price: 2.98 AED
In stock (5 pcs)
17
95380-06700
NUT
 1
Price: 2.98 AED
In stock (5 pcs)
18
689-43160-00
TILT ROD ASSY
 1
Price: 45.44 AED
In stock (168 pcs)
18
689-43160-00
TILT ROD ASSY
 1
Price: 45.44 AED
In stock (168 pcs)
19
689-43165-00
.PLATE, TILT LOCK
 1 Ask on WhatsApp
19
689-43165-00
.PLATE, TILT LOCK
 1 Ask on WhatsApp
20
91690-30008
.PIN, SPRING
 1 Ask on WhatsApp
20
91690-30008
.PIN, SPRING
 1 Ask on WhatsApp
21
90502-10M07
SPRING, CONICAL
 1 Ask on WhatsApp
21
90502-10M07
SPRING, CONICAL
 1 Ask on WhatsApp
22
682-43311-06-4D
BRACKET, SWIVEL 1
 1 Ask on WhatsApp
22
682-43311-06-4D
BRACKET, SWIVEL 1
 1 Ask on WhatsApp
23
93700-06M03
NIPPLE, GREASE
 3 Ask on WhatsApp
23
93700-06M03
NIPPLE, GREASE
 3 Ask on WhatsApp
24
90501-18M00
SPRING, COMPRESSION
 1 Ask on WhatsApp
24
90501-18M00
SPRING, COMPRESSION
 1 Ask on WhatsApp
25
92995-08600
WASHER
 1 Ask on WhatsApp
25
92995-08600
WASHER
 1 Ask on WhatsApp
26
676-43373-00
SEAL, DAMPER
 1 Ask on WhatsApp
26
676-43373-00
SEAL, DAMPER
 1 Ask on WhatsApp
27
97075-08025
BOLT
 1 Ask on WhatsApp
27
97075-08025
BOLT
 1 Ask on WhatsApp
28
6B4-43631-00
LEVER, TILT
 1 Ask on WhatsApp
28
6B4-43631-00
LEVER, TILT
 1 Ask on WhatsApp
29
90508-14018
SPRING, TORSION
 1 Ask on WhatsApp
29
90508-14018
SPRING, TORSION
 1 Ask on WhatsApp
30
682-43616-00
ROD, TILT LOCK
 1 Ask on WhatsApp
30
682-43616-00
ROD, TILT LOCK
 1 Ask on WhatsApp
31
682-43641-01
LEVER, TILT
 1 Ask on WhatsApp
31
682-43641-01
LEVER, TILT
 1 Ask on WhatsApp
32
90249-06M23
PIN
 1 Ask on WhatsApp
32
90249-06M23
PIN
 1 Ask on WhatsApp
33
99080-05600
CIRCLIP
 1 Ask on WhatsApp
33
99080-05600
CIRCLIP
 1 Ask on WhatsApp
34
682-43617-00
ROD, TILT LOCK
 1 Ask on WhatsApp
34
682-43617-00
ROD, TILT LOCK
 1 Ask on WhatsApp
35
682-43614-01
PLATE, TILT LOCK
 1 Ask on WhatsApp
35
682-43614-01
PLATE, TILT LOCK
 1 Ask on WhatsApp
36
682-43615-02
PLATE, TILT LOCK
 1 Ask on WhatsApp
36
682-43615-02
PLATE, TILT LOCK
 1 Ask on WhatsApp
37
682-43611-01
SHAFT, TILT LOCK
 1 Ask on WhatsApp
37
682-43611-01
SHAFT, TILT LOCK
 1 Ask on WhatsApp
38
90387-06M20
COLLAR
 1 Ask on WhatsApp
38
90387-06M20
COLLAR
 1 Ask on WhatsApp
39
682-43659-01
SHAFT, REVERSE LOCK
 1 Ask on WhatsApp
39
682-43659-01
SHAFT, REVERSE LOCK
 1 Ask on WhatsApp
40
99080-05600
CIRCLIP
 2 Ask on WhatsApp
40
99080-05600
CIRCLIP
 2 Ask on WhatsApp
41
90506-26M01
SPRING, TENSION
 2 Ask on WhatsApp
41
90506-26M01
SPRING, TENSION
 2 Ask on WhatsApp
42
90109-06M05
BOLT
 2 Ask on WhatsApp
42
90109-06M05
BOLT
 2 Ask on WhatsApp
43
6B4-43181-00
LEVER, TILT STOP
 1 Ask on WhatsApp
43
6B4-43181-00
LEVER, TILT STOP
 1 Ask on WhatsApp
44
6B4-43627-00
STOPPER
 2 Ask on WhatsApp
44
6B4-43627-00
STOPPER
 2 Ask on WhatsApp
45
90249-10003
PIN
 1 Ask on WhatsApp
45
90249-10003
PIN
 1 Ask on WhatsApp
46
90506-12002
SPRING, TENSION
 1 Ask on WhatsApp
46
90506-12002
SPRING, TENSION
 1 Ask on WhatsApp
47
95680-06100
NUT, U
 2 Ask on WhatsApp
47
95680-06100
NUT, U
 2 Ask on WhatsApp
48
92990-06600
WASHER, PLATE
 2
Price: 2.98 AED
In stock (27 pcs)
48
92990-06600
WASHER, PLATE
 2
Price: 2.98 AED
In stock (27 pcs)
49
90206-10M24
WASHER, WAVE
 2 Ask on WhatsApp
49
90206-10M24
WASHER, WAVE
 2 Ask on WhatsApp
50
90202-10M56
WASHER, PLATE
 1 Ask on WhatsApp
50
90202-10M56
WASHER, PLATE
 1 Ask on WhatsApp
51
99080-09600
CIRCLIP
 1
Price: 2.98 AED
In stock (1 pcs)
51
99080-09600
CIRCLIP
 1
Price: 2.98 AED
In stock (1 pcs)
52
682-43318-01
COVER
 1 Ask on WhatsApp
52
682-43318-01
COVER
 1 Ask on WhatsApp
53
6B4-43681-00
LEVER, SHALLOW WATER DRIVE 1
 1 Ask on WhatsApp
53
6B4-43681-00
LEVER, SHALLOW WATER DRIVE 1
 1 Ask on WhatsApp
54
682-43318-01
1 Ask on WhatsApp
55
682-43643-00
1 Ask on WhatsApp
56
97095-06008
1 Ask on WhatsApp
57
92990-06600
1
Price: 2.98 AED
In stock (27 pcs)
90506
90506-26M07
SPRING, TENSION
 2 Ask on WhatsApp
