E15DMH ’03 – section 3 CRANKSHAFT. PISTON parts diagram

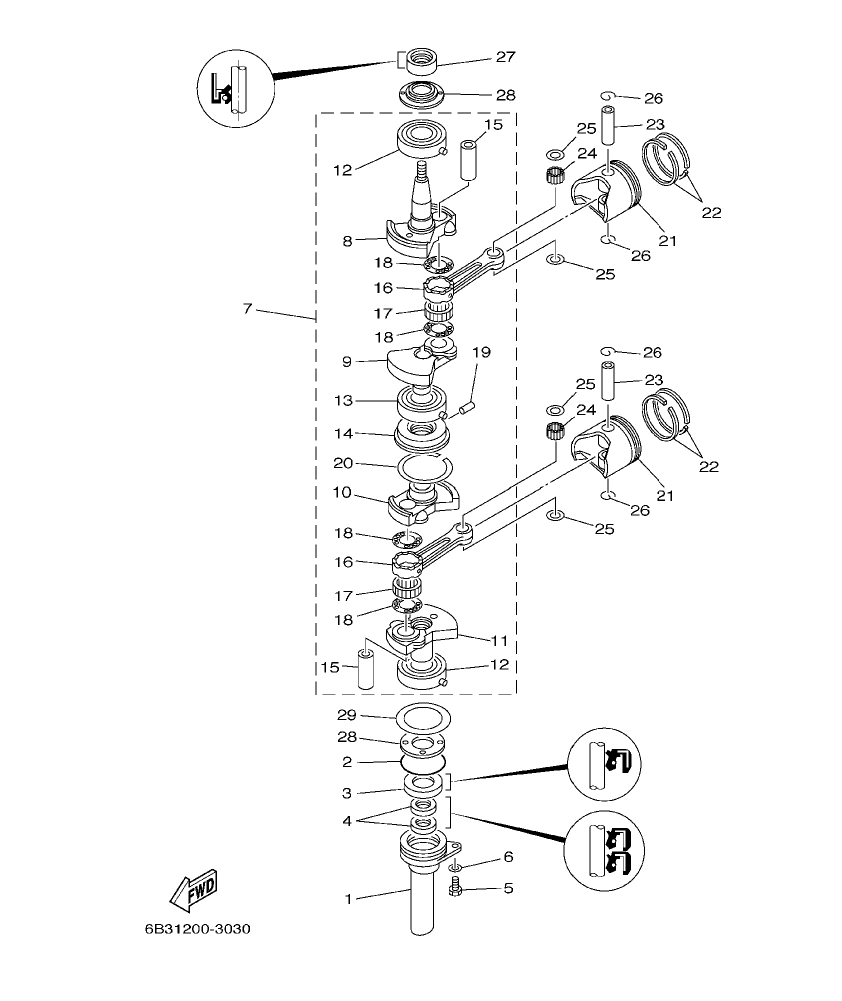

Diagram for section 3: CRANKSHAFT. PISTON.

Ref Part No. Qty Buy
1
6B4-15396-00-94
HOUSING, OIL SEAL
 1 Ask on WhatsApp
1
6B4-15396-00-94
HOUSING, OIL SEAL
 1 Ask on WhatsApp
2
93210-46M16
O-RING
 1 Ask on WhatsApp
2
93210-46M16
O-RING
 1 Ask on WhatsApp
3
93102-25010
OIL SEAL
 1
Price: 31.28 AED
In stock (45 pcs)
3
93102-25010
OIL SEAL
 1
Price: 31.28 AED
In stock (45 pcs)
4
93101-13M27
OIL SEAL
 2 Ask on WhatsApp
4
93101-13M27
OIL SEAL
 2 Ask on WhatsApp
5
97095-06016
BOLT
 1 Ask on WhatsApp
5
97095-06016
BOLT
 1 Ask on WhatsApp
6
6E7-11635-00
PISTON (0.25MM O/S)
 2 Ask on WhatsApp
6
6E7-11635-00
PISTON (0.25MM O/S)
 2 Ask on WhatsApp
6
6E7-11636-00
PISTON (0.50MM O/S)
 2 Ask on WhatsApp
6
6E7-11636-00
PISTON (0.50MM O/S)
 2 Ask on WhatsApp
6
92995-06600
WASHER
 1 Ask on WhatsApp
6
92995-06600
WASHER
 1 Ask on WhatsApp
7
6B4-11400-00
CRANKSHAFT ASSY
 1 Ask on WhatsApp
7
6B4-11400-00
CRANKSHAFT ASSY
 1 Ask on WhatsApp
8
63V-11412-00
.CRANK 1
 1 Ask on WhatsApp
8
63V-11412-00
.CRANK 1
 1 Ask on WhatsApp
9
63V-11422-00
.CRANK 2
 1 Ask on WhatsApp
9
63V-11422-00
.CRANK 2
 1 Ask on WhatsApp
10
63V-11432-00
.CRANK 3
 1 Ask on WhatsApp
10
63V-11432-00
.CRANK 3
 1 Ask on WhatsApp
11
63V-11442-00
.CRANK 4
 1 Ask on WhatsApp
11
63V-11442-00
.CRANK 4
 1 Ask on WhatsApp
12
93306-205A1
.BEARING
 2 Ask on WhatsApp
12
93306-205A1
.BEARING
 2 Ask on WhatsApp
13
93390-00029
.BEARING
 1
Price: 265.92 AED
In stock (13 pcs)
13
93390-00029
.BEARING
 1
Price: 265.92 AED
In stock (13 pcs)
14
63V-11515-02
.SEAL, LABYRINTH 1
 1 Ask on WhatsApp
14
63V-11515-02
.SEAL, LABYRINTH 1
 1 Ask on WhatsApp
15
682-11681-00
.PIN, CRANK 1
 2
Price: 26.82 AED
In stock (53 pcs)
15
682-11681-00
.PIN, CRANK 1
 2
Price: 26.82 AED
In stock (53 pcs)
16
6K4-11651-00
.ROD, CONNECTING
 2 Ask on WhatsApp
16
6K4-11651-00
.ROD, CONNECTING
 2 Ask on WhatsApp
17
93310-620W5
.BEARING
 2 Ask on WhatsApp
17
93310-620W5
.BEARING
 2 Ask on WhatsApp
18
90209-20M23
.WASHER
 4 Ask on WhatsApp
18
90209-20M23
.WASHER
 4 Ask on WhatsApp
19
91609-20008
.PIN, SPRING
 1 Ask on WhatsApp
19
91609-20008
.PIN, SPRING
 1 Ask on WhatsApp
20
93440-52009
.CIRCLIP
 1
Price: 8.94 AED
In stock (2 pcs)
20
93440-52009
.CIRCLIP
 1
Price: 8.94 AED
In stock (2 pcs)
21
6E7-11631-00-97
PISTON (STD)
 2 Ask on WhatsApp
21
6E7-11631-00-97
PISTON (STD)
 2 Ask on WhatsApp
22
682-11610-01
PISTON RING SET (STD)
 2
Price: 24.58 AED
In stock (1 pcs)
22
682-11610-01
PISTON RING SET (STD)
 2
Price: 24.58 AED
In stock (1 pcs)
23
634-11633-00
PIN, PISTON
 2
Price: 15.64 AED
In stock (290 pcs)
23
634-11633-00
PIN, PISTON
 2
Price: 15.64 AED
In stock (290 pcs)
682
682-11610-11
PISTON RING SET (0.25MM O/S)
 2
Price: 30.54 AED
In stock (78 pcs)
682
682-11610-11
PISTON RING SET (0.25MM O/S)
 2
Price: 30.54 AED
In stock (78 pcs)
682
682-11610-21
PISTON RING SET (0.50MM O/S)
 2
Price: 29.80 AED
In stock (30 pcs)
682
682-11610-21
PISTON RING SET (0.50MM O/S)
 2
Price: 29.80 AED
In stock (30 pcs)
