E15DMH ’03
Section 8: GENERATOR (v2)
Engine sections in this catalog

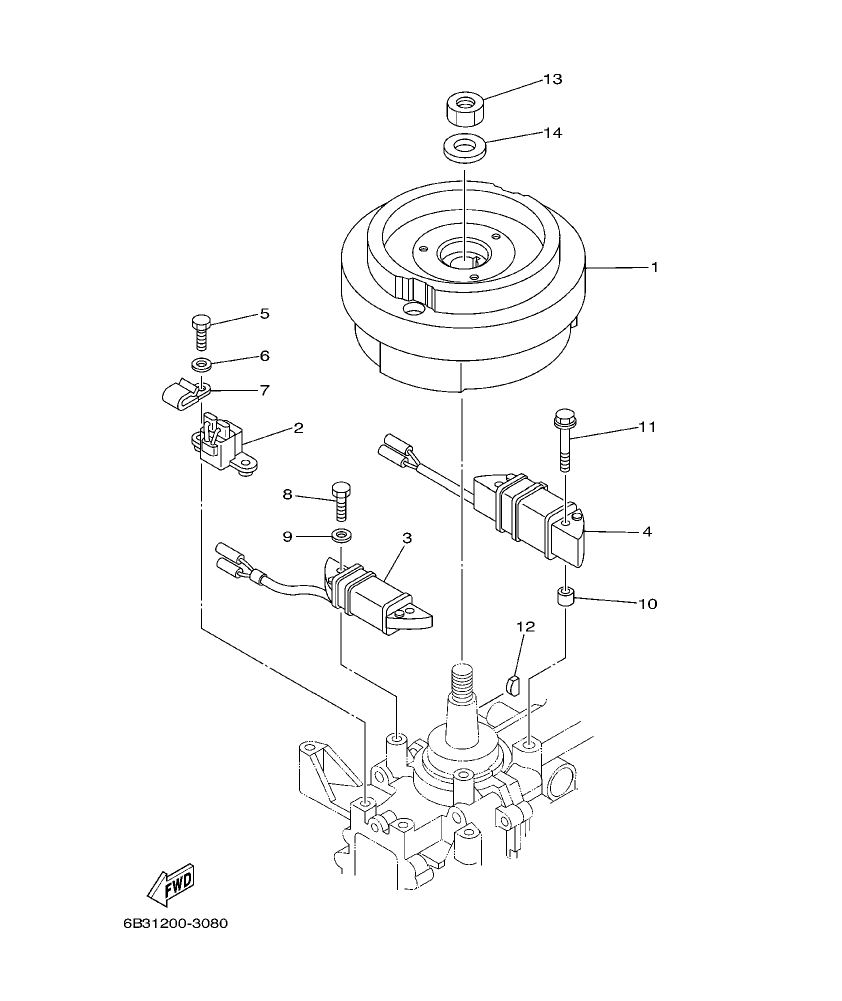

Diagram for section 8: GENERATOR.
| Ref | Part No. | Qty | Buy |
|---|---|---|---|
| 1 |
6B4-85550-00
ROTOR ASSY
|
1 | Ask on WhatsApp |
| 1 |
6B4-85550-00
ROTOR ASSY
|
1 | Ask on WhatsApp |
| 2 |
6B4-85580-00
COIL, PULSER
|
1 | Ask on WhatsApp |
| 2 |
6B4-85580-00
COIL, PULSER
|
1 | Ask on WhatsApp |
| 3 |
6B4-85520-00
COIL, CHARGE
|
1 | Ask on WhatsApp |
| 3 |
6B4-85520-00
COIL, CHARGE
|
1 | Ask on WhatsApp |
| 4 |
63V-85533-00
COIL, LIGHTING
|
1 | Ask on WhatsApp |
| 4 |
63V-85533-00
COIL, LIGHTING
|
1 | Ask on WhatsApp |
| 5 |
97095-06016
BOLT
|
2 | Ask on WhatsApp |
| 5 |
97095-06016
BOLT
|
2 | Ask on WhatsApp |
| 6 |
92995-06600
WASHER
|
2 | Ask on WhatsApp |
| 6 |
92995-06600
WASHER
|
2 | Ask on WhatsApp |
| 7 |
90465-06M90
CLAMP
|
1 | Ask on WhatsApp |
| 7 |
90465-06M90
CLAMP
|
1 | Ask on WhatsApp |
| 8 |
97095-06020
BOLT
|
2 | Ask on WhatsApp |
| 8 |
97095-06020
BOLT
|
2 | Ask on WhatsApp |
| 9 |
92995-06600
WASHER
|
2 | Ask on WhatsApp |
| 9 |
92995-06600
WASHER
|
2 | Ask on WhatsApp |
| 10 |
90387-06M24
COLLAR
|
2 | Ask on WhatsApp |
| 10 |
90387-06M24
COLLAR
|
2 | Ask on WhatsApp |
| 11 |
90119-06M40
BOLT, WITH WASHER
|
2 | Ask on WhatsApp |
| 11 |
90119-06M40
BOLT, WITH WASHER
|
2 | Ask on WhatsApp |
| 12 |
90280-05013
KEY, WOODRUFF
|
1 | Ask on WhatsApp |
| 12 |
90280-05013
KEY, WOODRUFF
|
1 | Ask on WhatsApp |
| 13 |
90170-12066
NUT
|
1 | Ask on WhatsApp |
| 13 |
90170-12066
NUT
|
1 | Ask on WhatsApp |
| 14 |
90201-12472
WASHER, PLATE
|
1 | Ask on WhatsApp |
| 14 |
90201-12472
WASHER, PLATE
|
1 | Ask on WhatsApp |
