E15DMH ’03
Section 4: INTAKE (v2)
Engine sections in this catalog

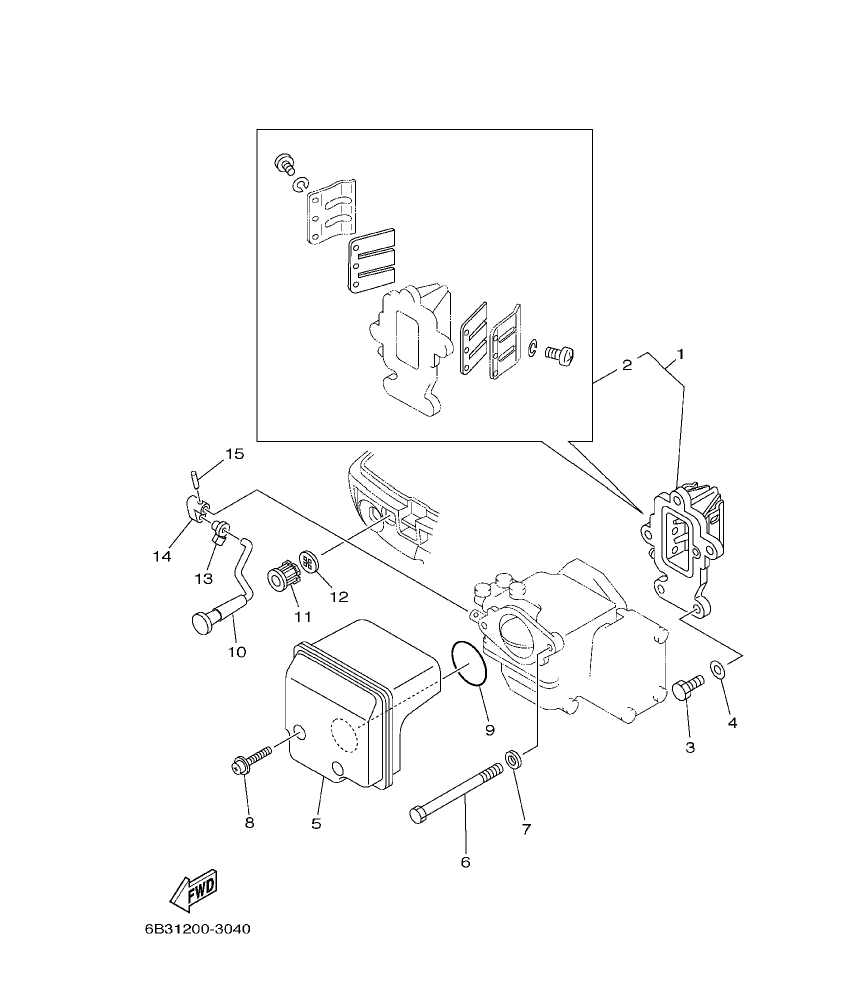

Diagram for section 4: INTAKE.
| Ref | Part No. | Qty | Buy |
|---|---|---|---|
| 1 |
63V-13610-10
REED VALVE ASSY
|
1 | Ask on WhatsApp |
| 2 |
682-W0004-00
.REED SET
|
1 | Ask on WhatsApp |
| 2 |
682-W0004-00
.REED SET
|
1 | Ask on WhatsApp |
| 3 |
97095-06020
BOLT
|
3 | Ask on WhatsApp |
| 3 |
97095-06020
BOLT
|
3 | Ask on WhatsApp |
| 4 |
92995-06600
WASHER
|
3 | Ask on WhatsApp |
| 4 |
92995-06600
WASHER
|
3 | Ask on WhatsApp |
| 5 |
6B4-14440-00
SILENCER ASSY, INTAKE
|
1 | Ask on WhatsApp |
| 5 |
6B4-14440-00
SILENCER ASSY, INTAKE
|
1 | Ask on WhatsApp |
| 6 |
97095-06095
BOLT
|
2 | Ask on WhatsApp |
| 6 |
97095-06095
BOLT
|
2 | Ask on WhatsApp |
| 7 |
92995-06600
WASHER
|
2 | Ask on WhatsApp |
| 7 |
92995-06600
WASHER
|
2 | Ask on WhatsApp |
| 8 |
90159-05007
SCREW, WITH WASHER
|
2 | Ask on WhatsApp |
| 8 |
90159-05007
SCREW, WITH WASHER
|
2 | Ask on WhatsApp |
| 9 |
93210-35M86
O-RING
|
1 | Ask on WhatsApp |
| 9 |
93210-35M86
O-RING
|
1 | Ask on WhatsApp |
| 10 |
6B4-41271-00
KNOB, CHOKE
|
1 | Ask on WhatsApp |
| 10 |
6B4-41271-00
KNOB, CHOKE
|
1 | Ask on WhatsApp |
| 11 |
6B4-41273-00
GROMMET
|
1 | Ask on WhatsApp |
| 11 |
6B4-41273-00
GROMMET
|
1 | Ask on WhatsApp |
| 12 |
6B4-41274-00
GROMMET 2
|
1 | Ask on WhatsApp |
| 12 |
6B4-41274-00
GROMMET 2
|
1 | Ask on WhatsApp |
| 13 |
6B4-41262-00
JOINT, CHOKE LEVER
|
1 | Ask on WhatsApp |
| 13 |
6B4-41262-00
JOINT, CHOKE LEVER
|
1 | Ask on WhatsApp |
| 14 |
6B4-41252-00
LEVER, CHOKE 1
|
1 | Ask on WhatsApp |
| 14 |
6B4-41252-00
LEVER, CHOKE 1
|
1 | Ask on WhatsApp |
| 15 |
91690-20010
PIN, SPRING
|
1 |
Price:
3.72 AED
In stock
(1 pcs)
|
| 15 |
91690-20010
PIN, SPRING
|
1 |
Price:
3.72 AED
In stock
(1 pcs)
|
| 63 |
63W-13610-00
REED VALVE ASSY
|
1 | Ask on WhatsApp |
