E15DMH ’03
Section 7: STARTER (v2)
Engine sections in this catalog

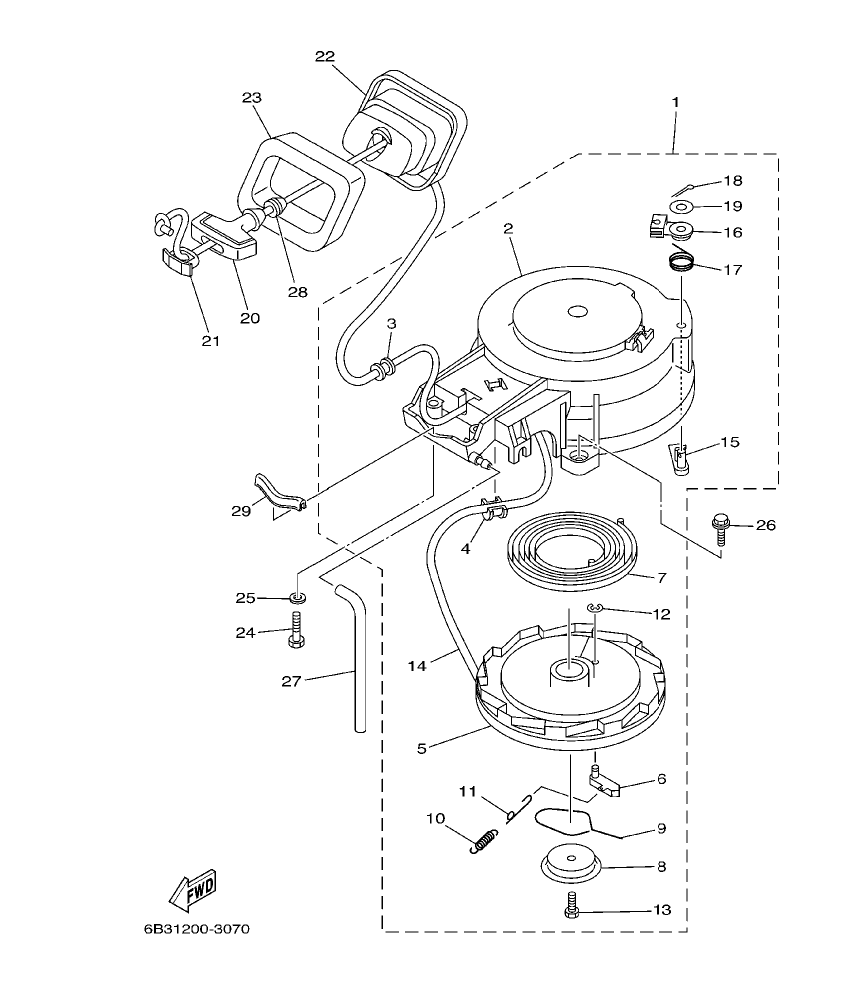

Diagram for section 7: STARTER.
| Ref | Part No. | Qty | Buy |
|---|---|---|---|
| 1 |
6B4-15710-00
STARTER ASSY
|
1 | Ask on WhatsApp |
| 1 |
6B4-15710-00
STARTER ASSY
|
1 | Ask on WhatsApp |
| 2 |
6B4-15711-00
.CASE, STARTER
|
1 | Ask on WhatsApp |
| 2 |
6B4-15711-00
.CASE, STARTER
|
1 | Ask on WhatsApp |
| 3 |
63V-15764-00
.COLLAR 1
|
1 | Ask on WhatsApp |
| 3 |
63V-15764-00
.COLLAR 1
|
1 | Ask on WhatsApp |
| 4 |
68T-15764-00
.COLLAR 1
|
1 | Ask on WhatsApp |
| 4 |
68T-15764-00
.COLLAR 1
|
1 | Ask on WhatsApp |
| 5 |
63V-15714-00
.DRUM, SHEAVE
|
1 | Ask on WhatsApp |
| 5 |
63V-15714-00
.DRUM, SHEAVE
|
1 | Ask on WhatsApp |
| 6 |
63V-15741-00
.PAWL, DRIVE
|
1 | Ask on WhatsApp |
| 6 |
63V-15741-00
.PAWL, DRIVE
|
1 | Ask on WhatsApp |
| 7 |
63V-15713-00
.SPRING, STARTER
|
1 | Ask on WhatsApp |
| 7 |
63V-15713-00
.SPRING, STARTER
|
1 | Ask on WhatsApp |
| 8 |
63V-15716-00
.PLATE, DRIVE
|
1 | Ask on WhatsApp |
| 8 |
63V-15716-00
.PLATE, DRIVE
|
1 | Ask on WhatsApp |
| 9 |
63V-15705-01
.SPRING, DRIVE PAWL
|
1 | Ask on WhatsApp |
| 9 |
63V-15705-01
.SPRING, DRIVE PAWL
|
1 | Ask on WhatsApp |
| 10 |
63V-15767-01
.SPRING
|
1 | Ask on WhatsApp |
| 10 |
63V-15767-01
.SPRING
|
1 | Ask on WhatsApp |
| 11 |
68T-15784-00
.SPRING, RETURN
|
1 | Ask on WhatsApp |
| 11 |
68T-15784-00
.SPRING, RETURN
|
1 | Ask on WhatsApp |
| 12 |
63V-15744-00
.CIRCLIP
|
1 | Ask on WhatsApp |
| 12 |
63V-15744-00
.CIRCLIP
|
1 | Ask on WhatsApp |
| 13 |
63V-15768-00
.BOLT
|
1 | Ask on WhatsApp |
| 13 |
63V-15768-00
.BOLT
|
1 | Ask on WhatsApp |
| 15 |
63V-15794-00
.STOPPER
|
1 | Ask on WhatsApp |
| 15 |
63V-15794-00
.STOPPER
|
1 | Ask on WhatsApp |
| 16 |
63V-15748-00
.PLUNGER, STARTER STOP
|
1 | Ask on WhatsApp |
| 16 |
63V-15748-00
.PLUNGER, STARTER STOP
|
1 | Ask on WhatsApp |
| 17 |
63V-15734-00
.SPRING, RETURN
|
1 | Ask on WhatsApp |
| 17 |
63V-15734-00
.SPRING, RETURN
|
1 | Ask on WhatsApp |
| 18 |
91490-16018
.PIN, COTTER
|
1 | Ask on WhatsApp |
| 18 |
91490-16018
.PIN, COTTER
|
1 | Ask on WhatsApp |
| 19 |
63V-15726-00
.WASHER, FLAT
|
1 | Ask on WhatsApp |
| 19 |
63V-15726-00
.WASHER, FLAT
|
1 | Ask on WhatsApp |
| 20 |
6G1-15755-00
HANDLE, STARTER
|
1 | Ask on WhatsApp |
| 20 |
6G1-15755-00
HANDLE, STARTER
|
1 | Ask on WhatsApp |
| 21 |
6G1-15779-00
COVER
|
1 | Ask on WhatsApp |
| 21 |
6G1-15779-00
COVER
|
1 | Ask on WhatsApp |
| 22 |
6B4-15758-00-4D
GUIDE, ROPE
|
1 | Ask on WhatsApp |
| 22 |
6B4-15758-00-4D
GUIDE, ROPE
|
1 | Ask on WhatsApp |
| 23 |
6B4-15762-00
SEAL, RUBBER 2
|
1 | Ask on WhatsApp |
| 23 |
6B4-15762-00
SEAL, RUBBER 2
|
1 | Ask on WhatsApp |
| 24 |
97095-06030
BOLT
|
2 | Ask on WhatsApp |
| 24 |
97095-06030
BOLT
|
2 | Ask on WhatsApp |
| 25 |
92995-06600
WASHER
|
2 | Ask on WhatsApp |
| 25 |
92995-06600
WASHER
|
2 | Ask on WhatsApp |
| 26 |
90119-06M82
BOLT, WITH WASHER
|
3 | Ask on WhatsApp |
| 26 |
90119-06M82
BOLT, WITH WASHER
|
3 | Ask on WhatsApp |
| 27 |
6J8-24311-00
PIPE, FUEL 1
|
1 | Ask on WhatsApp |
| 27 |
6J8-24311-00
PIPE, FUEL 1
|
1 | Ask on WhatsApp |
| 28 |
6A0-15789-00
DAMPER
|
1 | Ask on WhatsApp |
| 28 |
6A0-15789-00
DAMPER
|
1 | Ask on WhatsApp |
| 29 |
6B4-15663-00
SEAL
|
1 | Ask on WhatsApp |
| 29 |
6B4-15663-00
SEAL
|
1 | Ask on WhatsApp |
