YP20G

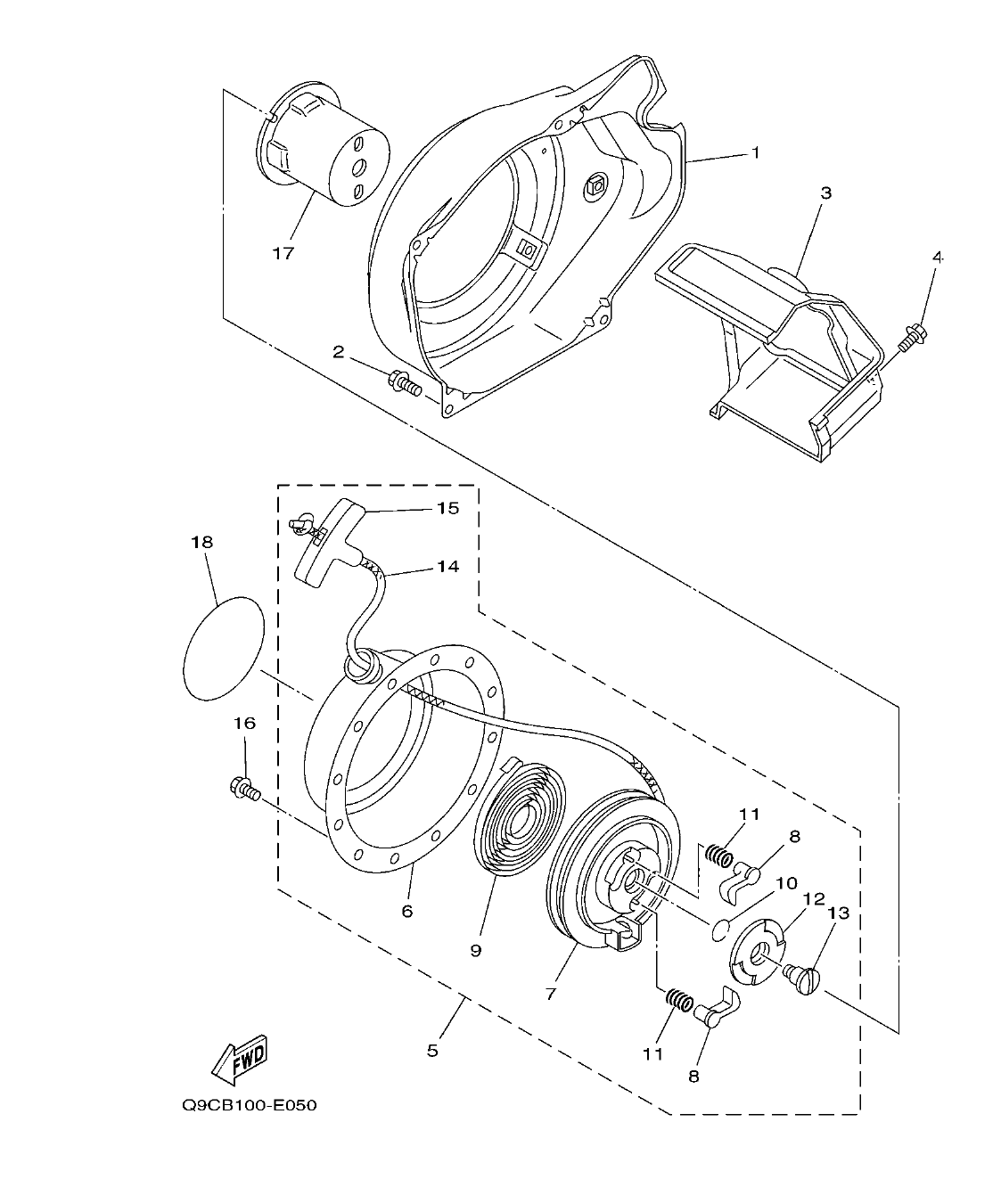

Section 5: AIR SHROUD & FAN (v2)
Model code: Q9CB
Parts list
Section 5
| Ref | Part No. / Description | Qty | Buy |
|---|---|---|---|
| 1 |
7CN-E2621-00
CASE, FAN
|
1 | |
| 2 |
95807-06012
BOLT, FLANGE
|
4 | |
| 3 |
7CN-E2651-00
AIR SHROUD, CYLINDER 1
|
1 | |
| 4 |
95807-06012
BOLT, FLANGE
|
1 | |
| 5 |
7CN-E5710-00
STARTER ASSY
|
1 | |
| 6 |
7CN-E5711-00
.CASE, STARTER
|
1 | |
| 7 |
7CN-E5714-00
.DRUM, SHEAVE
|
1 | |
| 8 |
7CN-E5741-00
.PAWL, DRIVE
|
2 | |
| 9 |
7CN-E5713-00
.SPRING, STARTER
|
1 | |
| 10 |
7CN-E5715-00
.SPRING, FRICTION
|
1 | |
| 11 |
7CN-E5743-00
.SPRING, RETURN
|
2 | |
| 12 |
7CN-E5716-00
.PLATE, DRIVE
|
1 | |
| 13 |
7CN-E5793-00
.SCREW
|
1 | |
| 14 |
7CN-E5751-00
.WIRE, STARTER
|
1 | |
| 15 |
7CN-E5755-00
.HANDLE, STARTER
|
1 | |
| 16 |
95807-06008
BOLT, FLANGE
|
3 | |
| 17 |
7CN-E5723-00
PULLEY, STARTER
|
1 |
