YP20G

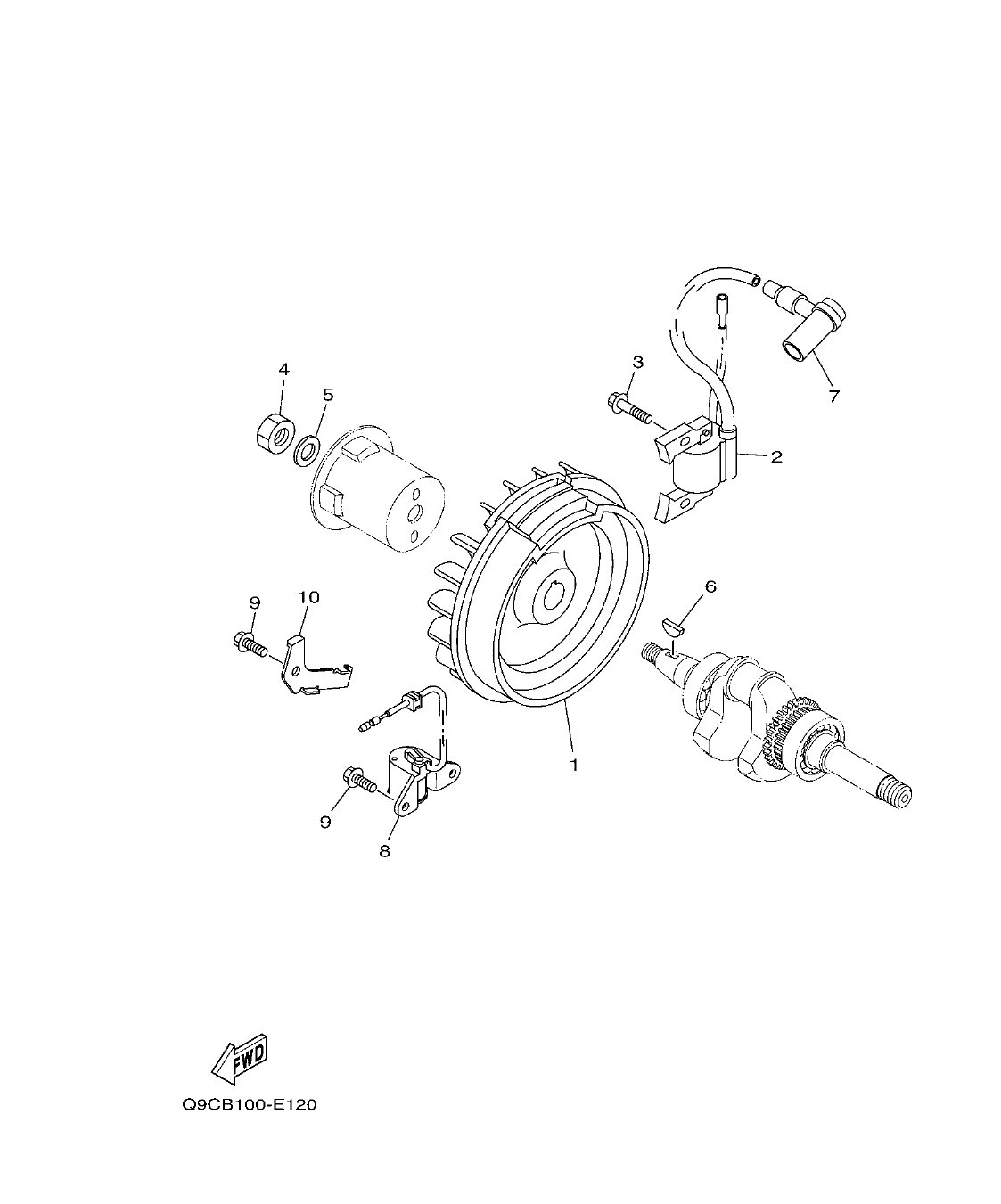

Section 12: GENERATOR 1 (v2)
Model code: Q9CB
Parts list
Section 12
| Ref | Part No. / Description | Qty | Buy |
|---|---|---|---|
| 1 |
7CN-H5650-00
ROTOR ASSY
|
1 | |
| 2 |
7CN-H5640-00
T.C.I. UNIT ASSY
|
1 | |
| 3 |
95827-06020
BOLT, FLANGE
|
2 | |
| 4 |
90170-14800
NUT
|
1 | |
| 5 |
92907-14200
WASHER
|
1 | |
| 6 |
90280-04801
KEY, WOODRUFF
|
1 | |
| 7 |
7CN-H2370-00
PLUG CAP ASSY
|
1 | |
| 8 |
7CN-H5720-00
OIL LEVEL GAUGE ASSY
|
1 | |
| 9 |
95827-06012
BOLT, FLANGE
|
3 | |
| 10 |
7CN-H5724-00
CLAMP
|
1 |
