YP20G

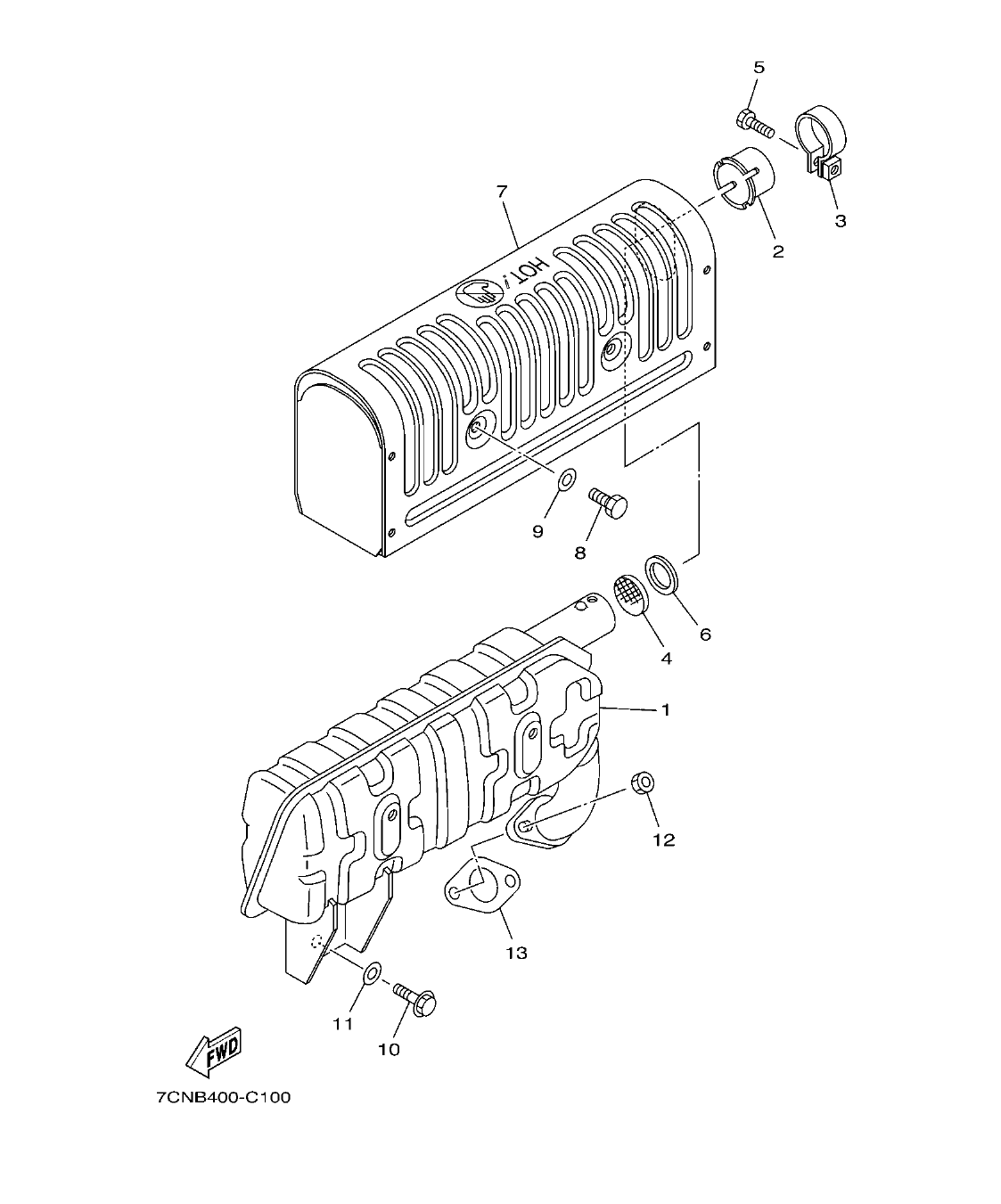

Section 9: EXHAUST (v2)
Model code: Q9CB
Parts list
Section 9
| Ref | Part No. / Description | Qty | Buy |
|---|---|---|---|
| 1 |
7CN-E4711-00
MUFFLER 1
|
1 | |
| 2 |
7CA-E4799-00
CAP
|
1 | |
| 3 |
7CA-E4788-00
BAND, SILENCER
|
1 | |
| 4 |
7CA-E479E-00
NET, WIRE 2
|
1 | |
| 5 |
90153-05800
SCREW, HEXAGON
|
1 | |
| 6 |
90201-17802
WASHER, PLATE
|
1 | |
| 7 |
7CN-E4708-00
PROTECTOR ASSY
|
1 | |
| 8 |
97027-06010
BOLT
|
4 | |
| 9 |
92907-06600
WASHER, PLATE
|
4 |
2.98 AED
Check price & stock on WhatsApp
|
| 10 |
95827-06016
BOLT, FLANGE
|
1 | |
| 11 |
90201-06843
WASHER, PLATE
|
1 | |
| 12 |
95307-06600
NUT
|
2 | |
| 13 |
7CN-E4613-00
GASKET, EXHAUST PIPE
|
1 |
