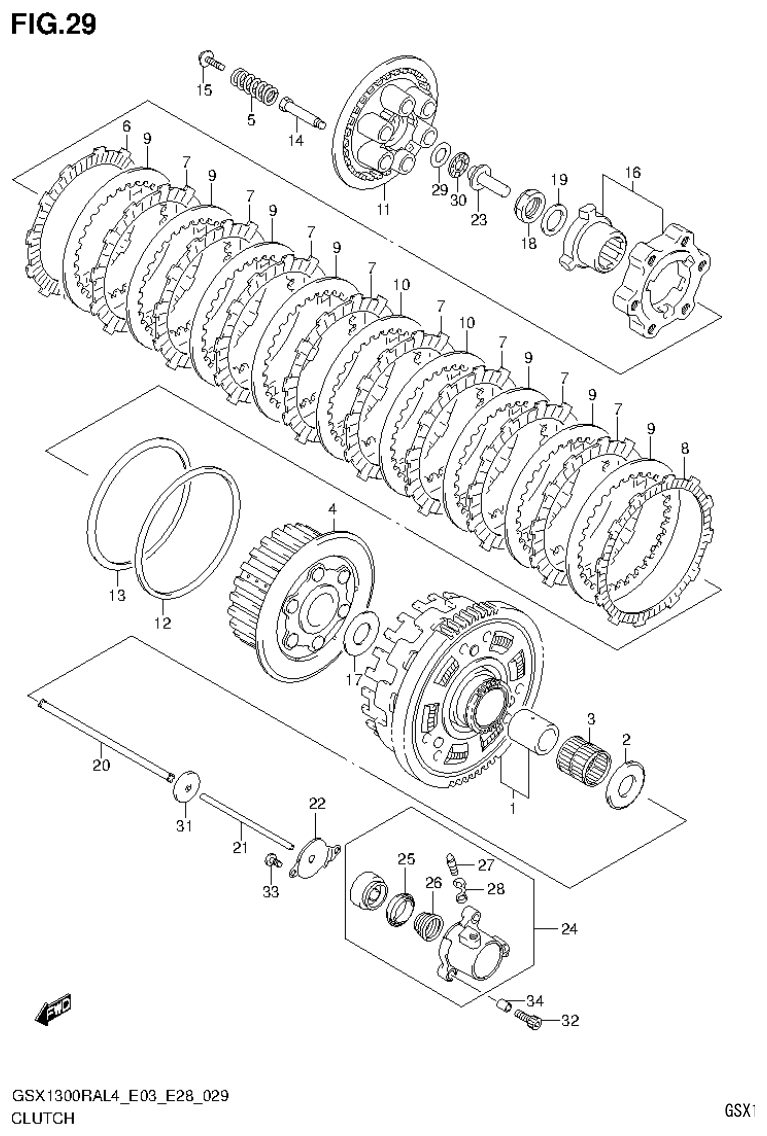

Suzuki GSX1300RAL4_E03_E28(9900B-30900) Section 29 Parts Diagram
CLUTCH
34 catalog rows · 14 linked store rows
/images/fig-29-clutch.png)
Parts list
Section 29
| Ref | Part No. / Description | Qty | Buy |
|---|---|---|---|
| 1 |
21200-24810
GEAR ASSY, PRIMARY DRIVEN (NT:83)
|
1 | |
| 2 |
09160-25073
WASHER (25X54X2.4)
|
1 | |
| 3 |
09263-35013
BEARING (35X40X39.8)
|
1 | |
| 4 |
21410-24F00
HUB, CLUTCH SLEEVE
|
1 | |
| 5 |
21413-24F30
SPRING, CLUTCH
|
6 | |
| 6 |
21441-24F10
PLATE, CLUTCH DRIVE NO.2 (T:3.8)
|
1 | |
| 7 |
21441-24F30
PLATE, CLUTCH DRIVE NO.1 (T:3.0)
|
8 | |
| 8 |
21442-24F00
PLATE, CLUTCH DRIVE NO.3 (T:3.8)
|
1 | |
| 9 |
21451-24F00
PLATE, CLUTCH DRIVEN NO.1 (T:2.0)
|
7 | |
| 10 |
21451-24F10
PLATE, CLUTCH DRIVEN NO.2 (T:2.3)
|
2 | |
| 11 |
21462-24F00
DISC, CLUTCH PRESSURE
|
1 | |
| 12 |
21471-24F00
SEAT, WAVE WASHER
|
1 | |
| 13 |
21472-06G00
WASHER, CLUTCH PLATE WAVE
|
1 | |
| 14 |
21481-24F32
BOLT, CLUTCH SPRING SUPPORT
|
6 | |
| 15 |
21482-24F30
BOLT, CLUTCH SPRING
|
6 | |
| 16 |
21610-02F12
CAM SET, CLUTCH
|
1 | |
| 17 |
09160-25056
WASHER (25X50X2.5)
|
1 | |
| 18 |
09159-24010
NUT
|
1 | |
| 19 |
09164-24006
WASHER
|
1 | |
| 20 |
23110-24F00
ROD, CLUTCH (L:195.5)
|
1 | |
| 21 |
23111-26D00
ROD, CLUTCH PUSH (L:132.5)
|
1 | |
| 22 |
23117-46E00
COVER, CLUTCH RELEASE
|
1 | |
| 23 |
23121-31E00
PIECE, CLUTCH PUSH
|
1 | |
| 24 |
23160-15H10
CYLINDER, CLUTCH RELEASE
|
1 | |
| 25 |
23163-10F00
.CUP
|
1 | |
| 26 |
23164-10F00
.SPRING
|
1 | |
| 27 |
59121-01A00
.BLEEDER
|
1 | |
| 28 |
59122-01A00
.CAP, BLEEDER
|
1 | |
| 29 |
09160-15045
WASHER (15.5X28X1)
|
1 | |
| 30 |
09263-15003
BEARING (15X28X2)
|
1 | |
| 31 |
09285-06015
OIL SEAL (6X34X5.5)
|
1 | |
| 32 |
07130-0625A
BOLT
|
2 | |
| 33 |
02112-0610A
SCREW
|
2 | |
| 34 |
04211-09129
PIN
|
2 |
