Suzuki GSX1300RAL4_E03_E28(9900B-30900) Section 87 Parts Diagram
FRONT CALIPER
12 catalog rows · 1 linked store rows
Suzuki GSX1300RAL4_E03_E28(9900B-30900) FRONT CALIPER parts
Suzuki GSX1300RAL4_E03_E28(9900B-30900) section 87 covers front caliper parts for this motorcycle catalog. The list includes CALIPER ASSY, FRONT RH, PISTON SET, SEAL SET, PISTON, SPRING, PAD, BLEEDER SET, CALIPER ASSY, FRONT LH, PAD & SHIM SET, BOLT (10X70). Use the diagram reference numbers with the parts table to identify the correct item.
1 rows in this section are linked to store products with live price or availability. Confirm the exact model, serial range and year before ordering marine engine parts.

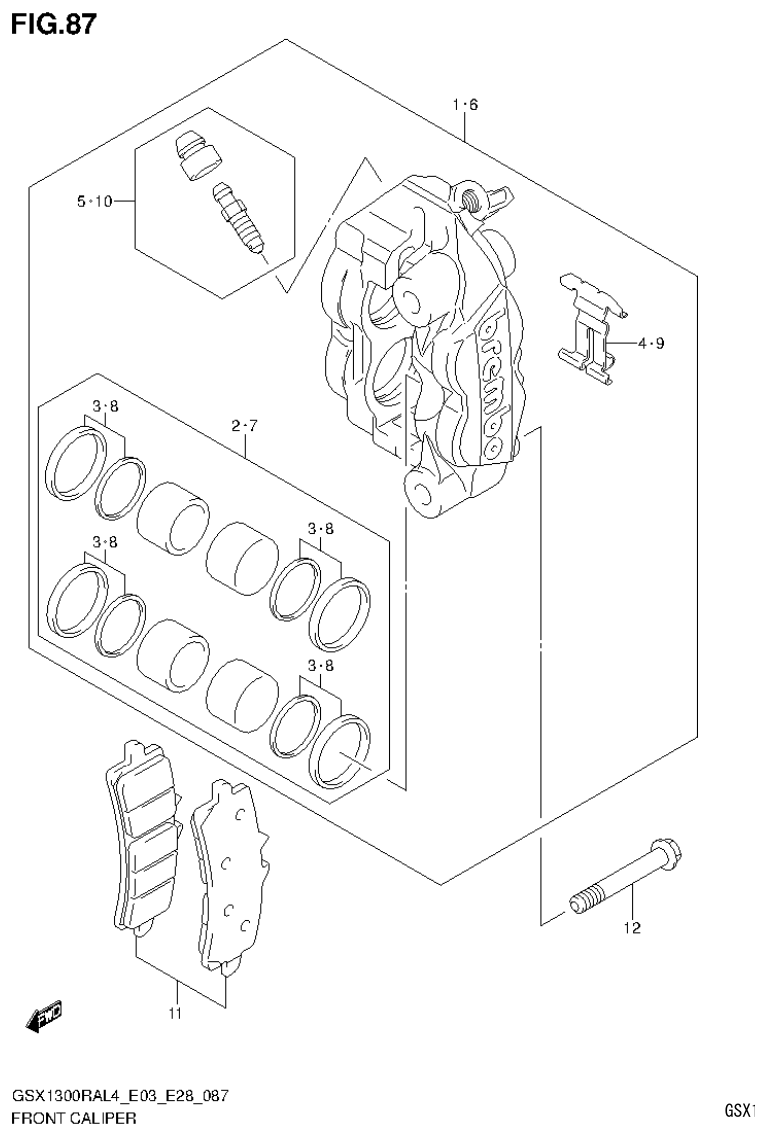

/images/fig-87-front-caliper.png)
Parts list
Section 87
| Ref | Part No. / Description | Qty | Buy |
|---|---|---|---|
| 1 |
CALIPER ASSY, FRONT RH
|
1 | |
| 2 |
.PISTON SET
|
1 | |
| 3 |
..SEAL SET, PISTON
|
1 | |
| 4 |
.SPRING, PAD
|
1 | |
| 5 |
.BLEEDER SET
|
1 | |
| 6 |
CALIPER ASSY, FRONT LH
|
1 | |
| 7 |
.PISTON SET
|
1 | |
| 8 |
..SEAL SET, PISTON
|
1 | |
| 9 |
.SPRING, PAD
|
1 | |
| 10 |
.BLEEDER SET
|
1 | |
| 11 |
PAD & SHIM SET
|
2 | |
| 12 |
BOLT (10X70)
|
4 |
