Suzuki GSX1300RAL4_E03_E28(9900B-30900) Section 75 Parts Diagram
METER PANEL
26 catalog rows · 7 linked store rows
Suzuki GSX1300RAL4_E03_E28(9900B-30900) METER PANEL parts
Suzuki GSX1300RAL4_E03_E28(9900B-30900) section 75 covers meter panel parts for this motorcycle catalog. The list includes PANEL, METER UPPER, CUSHION, RH, CUSHION, LH, CLIP (BLACK), CLIP, PANEL, METER RH, PANEL, METER LH, SCREW. Use the diagram reference numbers with the parts table to identify the correct item.
7 rows in this section are linked to store products with live price or availability. Confirm the exact model, serial range and year before ordering marine engine parts.

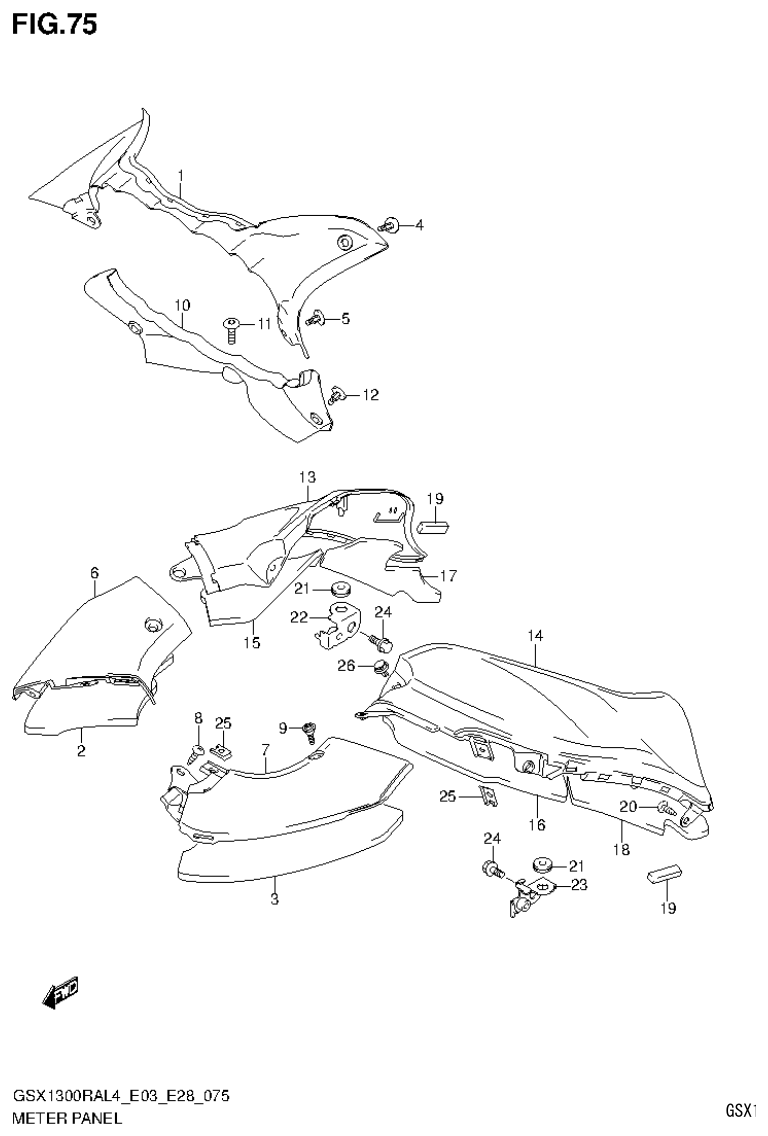

/images/fig-75-meter-panel.png)
Parts list
Section 75
| Ref | Part No. / Description | Qty | Buy |
|---|---|---|---|
|
Ref
1
|
PANEL, METER UPPER
|
Qty 1 | |
|
Ref
2
|
CUSHION, RH
|
Qty 1 | |
|
Ref
3
|
CUSHION, LH
|
Qty 1 | |
|
Ref
4
|
CLIP (BLACK)
|
Qty 2 | |
|
Ref
5
|
CLIP
|
Qty 2 | |
|
Ref
6
|
PANEL, METER RH
|
Qty 1 | |
|
Ref
7
|
PANEL, METER LH
|
Qty 1 | |
|
Ref
8
|
SCREW
|
Qty 2 | |
|
Ref
9
|
SCREW (5X16)
|
Qty 2 | |
|
Ref
10
|
PANEL, METER REAR
|
Qty 1 | |
|
Ref
11
|
SCREW (5X13)
|
Qty 1 | |
|
Ref
12
|
CLIP
|
Qty 2 | |
|
Ref
13
|
PANEL, SIDE RH
|
Qty 1 | |
|
Ref
14
|
PANEL, SIDE LH
|
Qty 1 | |
|
Ref
15
|
CUSHION, FRONT RH
|
Qty 1 | |
|
Ref
16
|
CUSHION, FRONT LH
|
Qty 1 | |
|
Ref
17
|
CUSHION, REAR RH
|
Qty 1 | |
|
Ref
18
|
CUSHION, REAR LH
|
Qty 1 | |
|
Ref
19
|
CUSHION
|
Qty 2 | |
|
Ref
20
|
SCREW (5X16)
|
Qty 6 | |
|
Ref
21
|
CUSHION
|
Qty 2 | |
|
Ref
22
|
BRACKET RH
|
Qty 1 | |
|
Ref
23
|
BRACKET LH
|
Qty 1 | |
|
Ref
24
|
BOLT
|
Qty 2 | |
|
Ref
25
|
NUT
|
Qty 2 | |
|
Ref
26
|
CLIP
|
Qty 2 |
