Suzuki GSX1300RAL4_E03_E28(9900B-30900) Section 56 Parts Diagram
FRAME
11 catalog rows · 2 linked store rows
Suzuki GSX1300RAL4_E03_E28(9900B-30900) FRAME parts

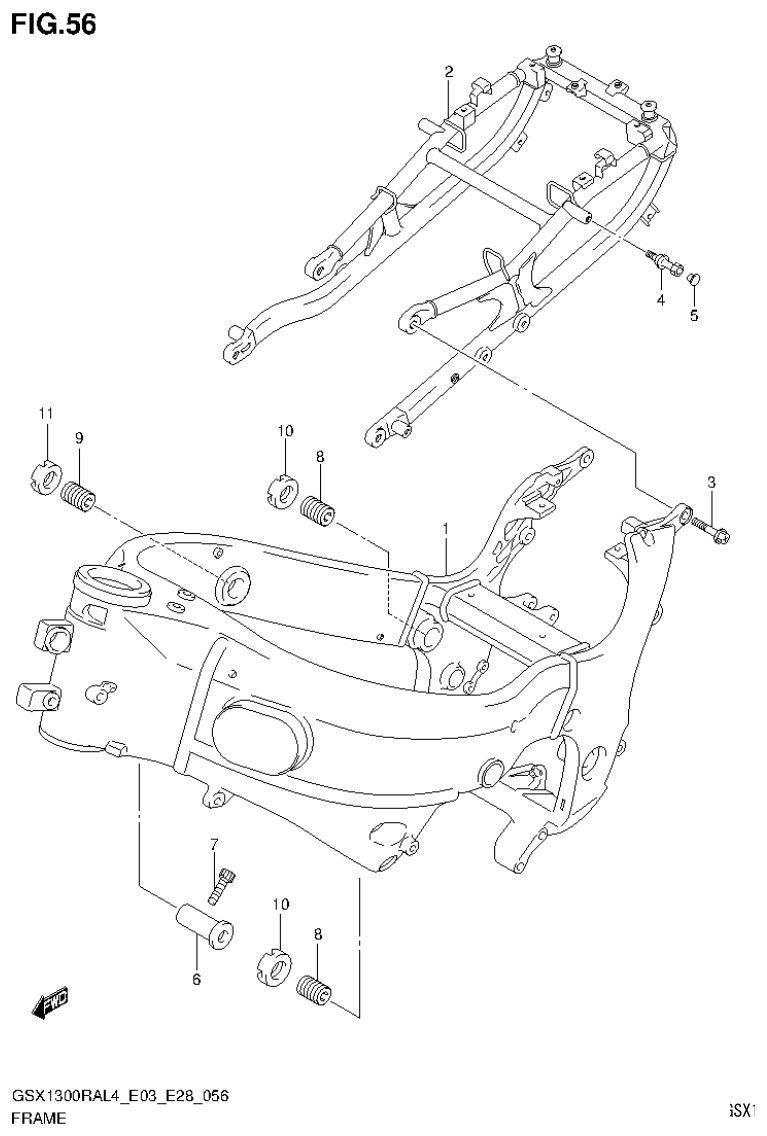

Suzuki GSX1300RAL4_E03_E28(9900B-30900) section 56 covers frame parts for this motorcycle catalog. The list includes FRAME (BLACK), RAIL, SEAT, BOLT (10X30), HOOK, SEAT RAIL, CAP (OD:10), SPACER, ENGINE MOUNT, BOLT (8X30), BOLT, CRANKCASE ADJUST. Use the diagram reference numbers with the parts table to identify the correct item.
2 rows in this section are linked to store products with live price or availability. Confirm the exact model, serial range and year before ordering marine engine parts.
/images/fig-56-frame.png)
Parts list
Section 56
| Ref | Part No. / Description | Qty | Buy |
|---|---|---|---|
|
Ref
1
|
FRAME (BLACK)
|
Qty 1 | |
|
Ref
2
|
RAIL, SEAT
|
Qty 1 | |
|
Ref
3
|
BOLT (10X30)
|
Qty 4 | |
|
Ref
4
|
HOOK, SEAT RAIL
|
Qty 2 | |
|
Ref
5
|
CAP (OD:10)
|
Qty 2 | |
|
Ref
6
|
SPACER, ENGINE MOUNT
|
Qty 1 | |
|
Ref
7
|
BOLT (8X30)
|
Qty 1 | |
|
Ref
8
|
BOLT, CRANKCASE ADJUST
|
Qty 2 | |
|
Ref
9
|
BOLT, CRANKCASE ADJUST
|
Qty 1 | |
|
Ref
10
|
NUT, CRANK CASE ADJUST
|
Qty 2 | |
|
Ref
11
|
NUT, CRANK CASE ADJUST
|
Qty 1 |
