Suzuki GSX1300RAL4_E03_E28(9900B-30900) Section 84 Parts Diagram
BRACKET STEERING DAMPER
18 catalog rows · 8 linked store rows
Suzuki GSX1300RAL4_E03_E28(9900B-30900) BRACKET STEERING DAMPER parts
Suzuki GSX1300RAL4_E03_E28(9900B-30900) section 84 covers bracket steering damper parts for this motorcycle catalog. The list includes BRACKET, LOWER, SEAL, LOWER, BEARING (30X55X17), BOLT, BRACKET, UPPER, WASHER, NUT, SEAL, DUST UPPER (30.1X56X4). Use the diagram reference numbers with the parts table to identify the correct item.
8 rows in this section are linked to store products with live price or availability. Confirm the exact model, serial range and year before ordering marine engine parts.

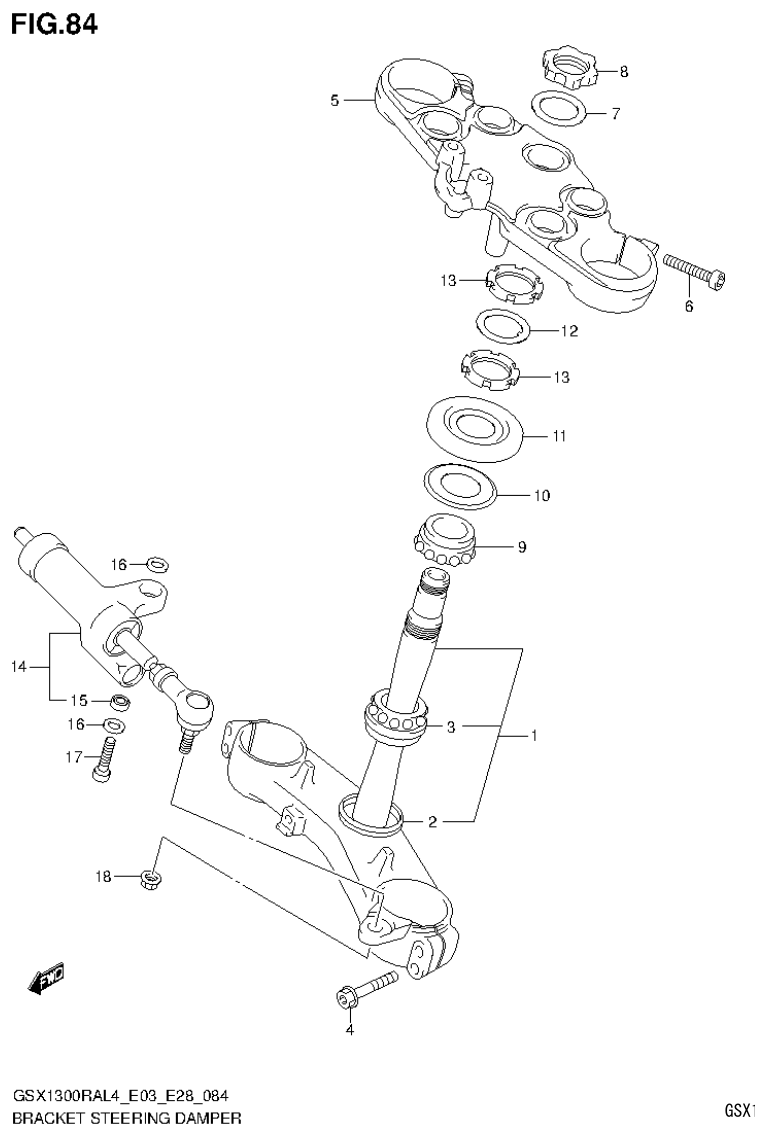

Section 84 — BRACKET STEERING DAMPER
GSX1300RAL4_E03_E28(9900B-30900)
100%
/images/fig-84-bracket-steering-damper.png)
Diagram image
Open full size
Parts list
Section 84
| Ref | Part No. / Description | Qty | Buy |
|---|---|---|---|
|
Ref
1
|
BRACKET, LOWER
|
Qty 1 | |
|
Ref
2
|
.SEAL, LOWER
|
Qty 1 | |
|
Ref
3
|
.BEARING (30X55X17)
|
Qty 1 | |
|
Ref
4
|
BOLT
|
Qty 4 | |
|
Ref
5
|
BRACKET, UPPER
|
Qty 1 | |
|
Ref
6
|
BOLT
|
Qty 2 | |
|
Ref
7
|
WASHER
|
Qty 1 | |
|
Ref
8
|
NUT
|
Qty 1 | |
|
Ref
9
|
BEARING (30X55X17)
|
Qty 1 | |
|
Ref
10
|
SEAL, DUST UPPER (30.1X56X4)
|
Qty 1 | |
|
Ref
11
|
COVER, STEERING UPPER
|
Qty 1 | |
|
Ref
12
|
WASHER, STEM
|
Qty 1 | |
|
Ref
13
|
NUT, STEM
|
Qty 2 | |
|
Ref
14
|
DAMPER ASSY, STEERING
|
Qty 1 | |
|
Ref
15
|
.BEARING (8X17.5X11)
|
Qty 1 | |
|
Ref
16
|
SEAL, DUST
|
Qty 2 | |
|
Ref
17
|
BOLT
|
Qty 1 | |
|
Ref
18
|
NUT
|
Qty 1 |
