Suzuki GSX1300RAL4_E03_E28(9900B-30900) Section 83 Parts Diagram
FRONT FORK DAMPER
33 catalog rows · 10 linked store rows
Suzuki GSX1300RAL4_E03_E28(9900B-30900) FRONT FORK DAMPER parts
Suzuki GSX1300RAL4_E03_E28(9900B-30900) section 83 covers front fork damper parts for this motorcycle catalog. The list includes DAMPER ASSY, FRONT FORK RH, TUBE, INNER RH, WASHER, OIL SEAL, RING, STOPPER, SEAL, DUST, CYLINDER, BOLT. Use the diagram reference numbers with the parts table to identify the correct item.
10 rows in this section are linked to store products with live price or availability. Confirm the exact model, serial range and year before ordering marine engine parts.

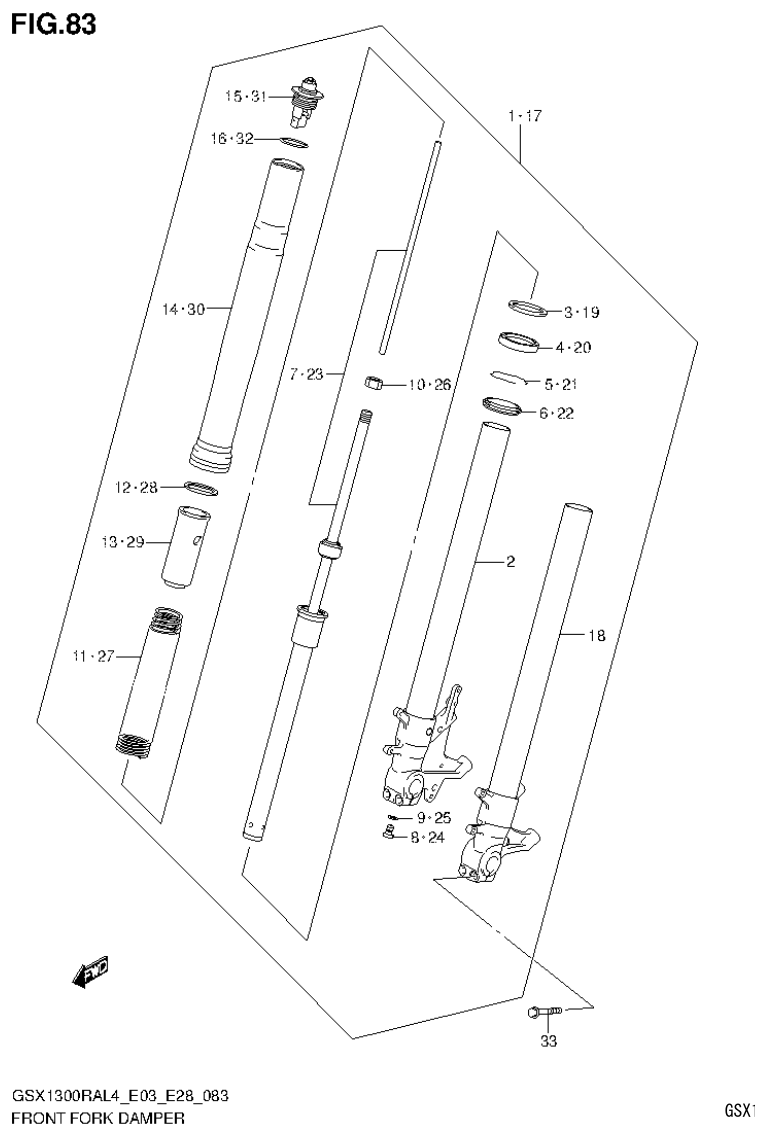

/images/fig-83-front-fork-damper.png)
Parts list
Section 83
| Ref | Part No. / Description | Qty | Buy |
|---|---|---|---|
|
Ref
1
|
DAMPER ASSY, FRONT FORK RH
|
Qty 1 | |
|
Ref
2
|
.TUBE, INNER RH
|
Qty 1 | |
|
Ref
3
|
.WASHER
|
Qty 1 | |
|
Ref
4
|
.OIL SEAL
|
Qty 1 | |
|
Ref
5
|
.RING, STOPPER
|
Qty 1 | |
|
Ref
6
|
.SEAL, DUST
|
Qty 1 | |
|
Ref
7
|
.CYLINDER
|
Qty 1 | |
|
Ref
8
|
.BOLT
|
Qty 1 | |
|
Ref
9
|
.GASKET
|
Qty 1 | |
|
Ref
10
|
.NUT
|
Qty 1 | |
|
Ref
11
|
.SPRING, FRONT
|
Qty 1 | |
|
Ref
12
|
.GUIDE, SPRING
|
Qty 1 | |
|
Ref
13
|
.SPACER, SPRING
|
Qty 1 | |
|
Ref
14
|
.TUBE, OUTER
|
Qty 1 | |
|
Ref
15
|
.CAP, FRONT FORK
|
Qty 1 | |
|
Ref
16
|
.O RING
|
Qty 1 | |
|
Ref
17
|
DAMPER ASSY, FRONT FORK LH
|
Qty 1 | |
|
Ref
18
|
.TUBE, INNER LH
|
Qty 1 | |
|
Ref
19
|
.WASHER
|
Qty 1 | |
|
Ref
20
|
.OIL SEAL
|
Qty 1 | |
|
Ref
21
|
.RING, STOPPER
|
Qty 1 | |
|
Ref
22
|
.SEAL, DUST
|
Qty 1 | |
|
Ref
23
|
.CYLINDER
|
Qty 1 | |
|
Ref
24
|
.BOLT
|
Qty 1 | |
|
Ref
25
|
.GASKET
|
Qty 1 | |
|
Ref
26
|
.NUT
|
Qty 1 | |
|
Ref
27
|
.SPRING, FRONT
|
Qty 1 | |
|
Ref
28
|
.GUIDE, SPRING
|
Qty 1 | |
|
Ref
29
|
.SPACER, SPRING
|
Qty 1 | |
|
Ref
30
|
.TUBE, OUTER
|
Qty 1 | |
|
Ref
31
|
.CAP, FRONT FORK
|
Qty 1 | |
|
Ref
32
|
.O RING
|
Qty 1 | |
|
Ref
33
|
BOLT
|
Qty 4 |
