Suzuki GSX1300RAL4_E03_E28(9900B-30900) Section 57 Parts Diagram
STAND
12 catalog rows · 0 linked store rows
Suzuki GSX1300RAL4_E03_E28(9900B-30900) STAND parts

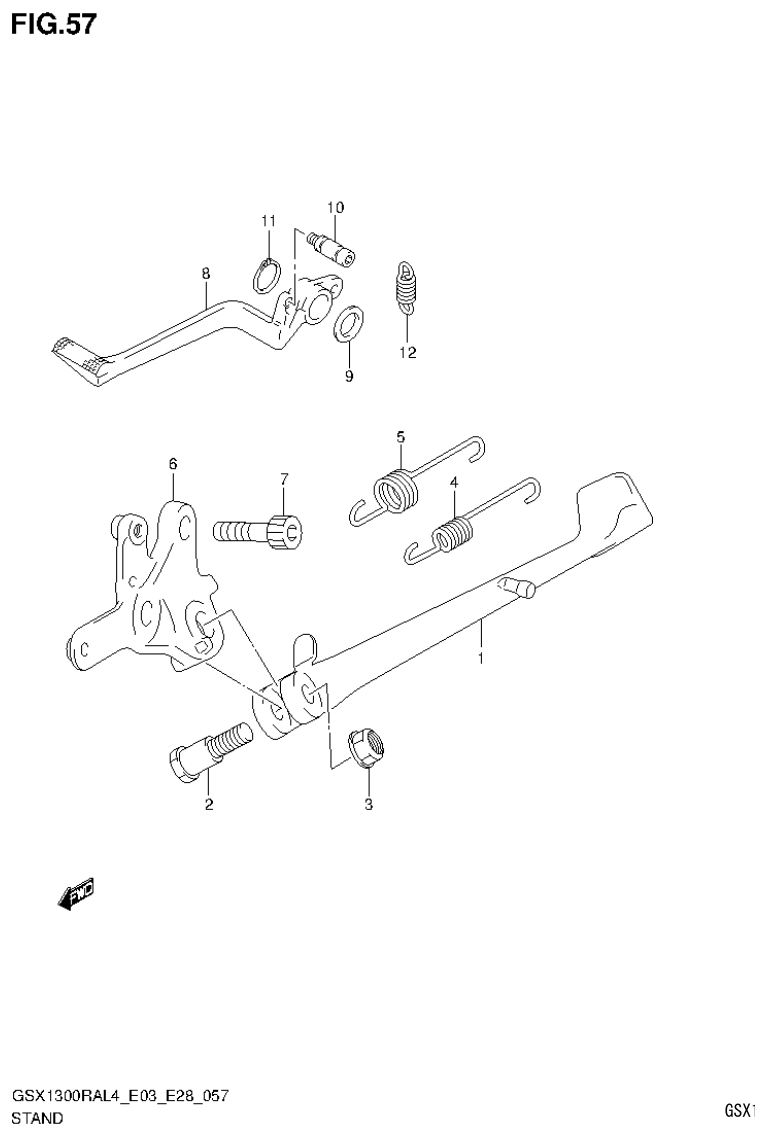

Suzuki GSX1300RAL4_E03_E28(9900B-30900) section 57 covers stand parts for this motorcycle catalog. The list includes STAND, PROP, BOLT (10X21), NUT, SPRING, BRACKET, PROP STAND, BOLT (12X35), PEDAL, BRAKE, WASHER (18X24X1). Use the diagram reference numbers with the parts table to identify the correct item.
This section is available as a reference catalog list; contact Marmoom Marine to confirm price and availability. Confirm the exact model, serial range and year before ordering marine engine parts.
/images/fig-57-stand.png)
Parts list
Section 57
| Ref | Part No. / Description | Qty | Buy |
|---|---|---|---|
| 1 |
STAND, PROP
|
1 | |
| 2 |
BOLT (10X21)
|
1 | |
| 3 |
NUT
|
1 | |
| 4 |
SPRING
|
1 | |
| 5 |
SPRING
|
1 | |
| 6 |
BRACKET, PROP STAND
|
1 | |
| 7 |
BOLT (12X35)
|
2 | |
| 8 |
PEDAL, BRAKE
|
1 | |
| 9 |
WASHER (18X24X1)
|
1 | |
| 10 |
HOOK, RETURN SPRING
|
1 | |
| 11 |
CLIP
|
1 | |
| 12 |
SPRING
|
1 |
