Suzuki GSX1300RAL4_E03_E28(9900B-30900) Section 85 Parts Diagram

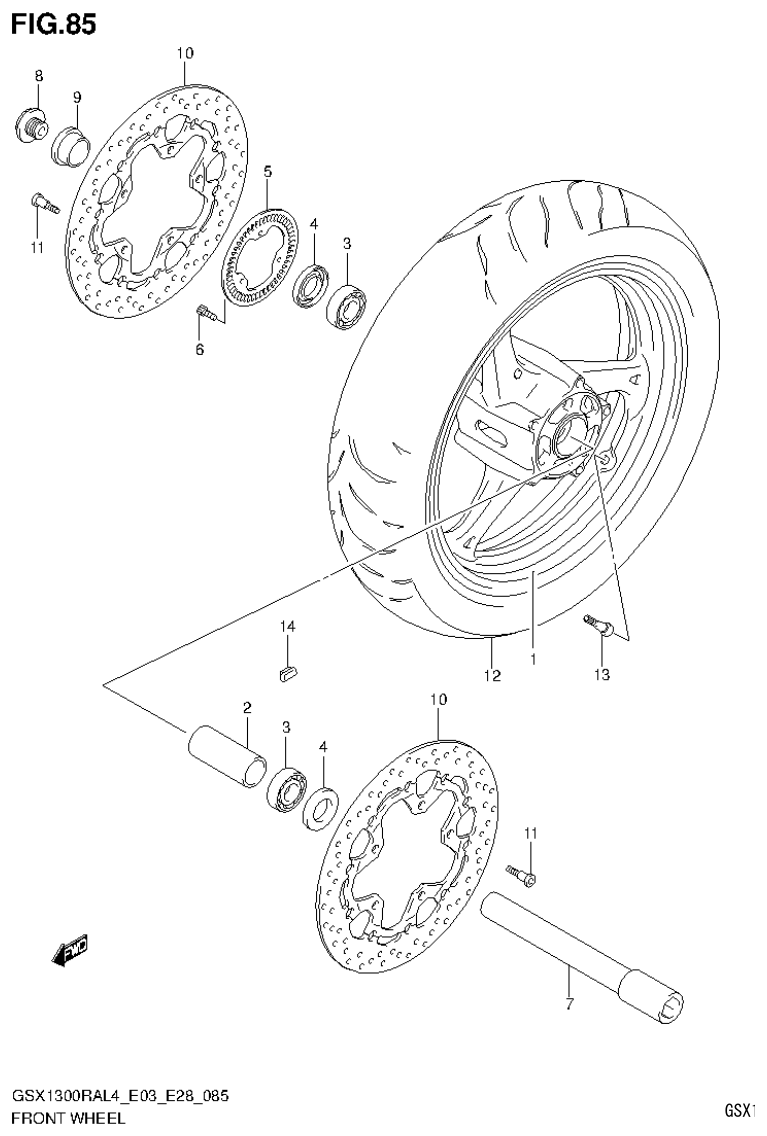

FRONT WHEEL
16 catalog rows · 3 linked store rows
/images/fig-85-front-wheel.png)
Parts list
Section 85
| Ref | Part No. / Description | Qty | Buy |
|---|---|---|---|
| 1 |
54111-15H10-019
WHEEL, FRONT (17M/CXMT3.50) (BLACK)
|
1 | |
| 2 |
54731-33E20
SPACER, HUB BEARING
|
1 | |
| 3 |
09262-25167
BEARING (25X52X15)
|
2 | |
| 4 |
09285-32004
OIL SEAL (32X52X7)
|
2 | |
| 5 |
54162-27G00
RING, SPEED SENSOR FR (50T)
|
1 | |
| 6 |
07130-0512A
BOLT
|
3 | |
| 7 |
54711-15H00
AXLE, FRONT
|
1 | |
| 8 |
54712-41G10
BOLT, FRONT AXLE
|
1 | |
| 9 |
54751-41G10
SPACER, FRONT AXLE, RH
|
1 | |
| 10 |
59210-15H10
DISC, FRONT BRAKE
|
2 | |
| 11 |
09106-08160
BOLT (8X21)
|
10 | |
| 12 |
55110-24F60
TIRE, FRONT (120/70ZR17M/C (58W))
|
1 | |
| 13 |
43130-24A00
VALVE ASSY, WHEEL RIM (TR412)
|
1 | |
| 14-1 |
55411-22H00
BALANCER, WHEEL NO.1 (10G)
|
AR | |
| 14-2 |
55412-22H00
BALANCER, WHEEL NO.2 (20G)
|
AR | |
| 14-3 |
55413-22H00
BALANCER, WHEEL NO.3 (30G)
|
AR |
