Section E-14: CARBURETOR (v2)

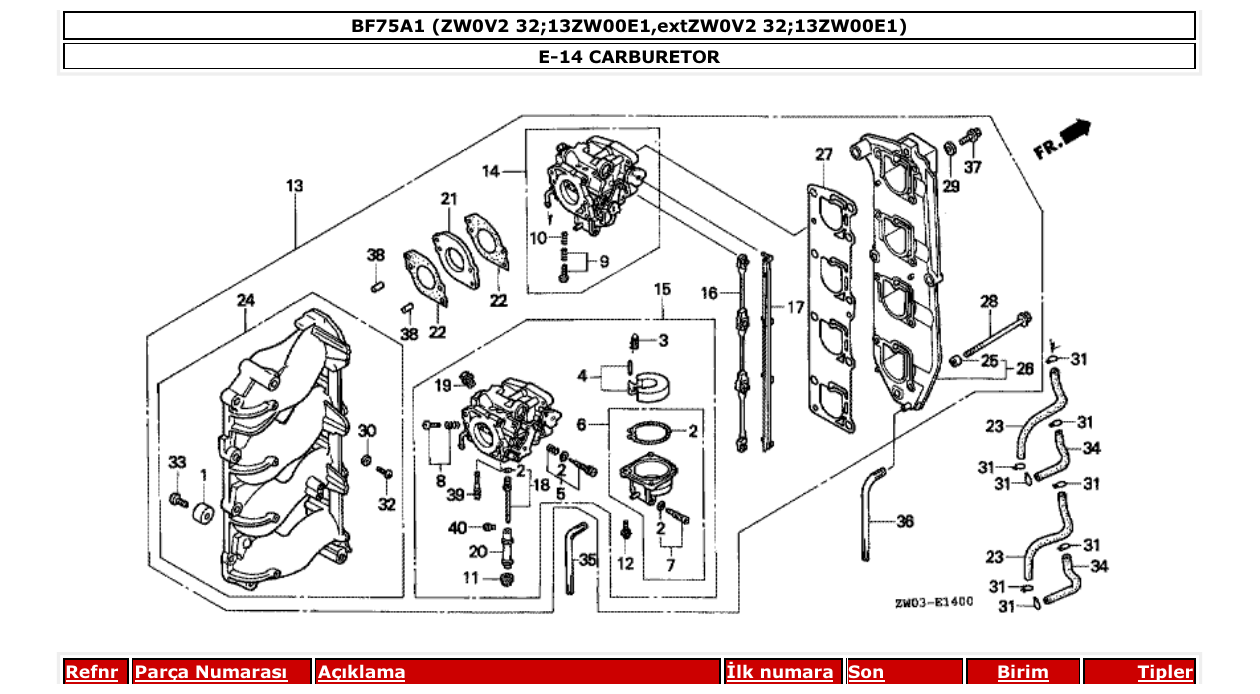

Diagram for section E-14: CARBURETOR.
| Ref | Part No. | Qty | Buy |
|---|---|---|---|
| 1 |
12155ZV5000
METAL, ANODE
|
2 | Ask on WhatsApp |
| 2 |
16010ZV4005
GASKET SET
|
4 | Ask on WhatsApp |
| 3 |
16011ZV4005
VALVE SET, FLOAT
|
4 | Ask on WhatsApp |
| 4 |
16013ZW1003
FLOAT SET BG40A B
|
4 | Ask on WhatsApp |
| 5 |
16016ZW1L01
SCREW SET
|
4 | Ask on WhatsApp |
| 6 |
16023ZW1000
CHAMBER SET, FLOAT
|
4 | Ask on WhatsApp |
| 7 |
16024ZV4650
SCREW SET, DRAIN
|
4 | Ask on WhatsApp |
| 8 |
16028ZV3000
SCREW SET
|
1 | Ask on WhatsApp |
| 9 |
16029ZV3000
SCREW SET
|
3 | Ask on WhatsApp |
| 10 |
16052KG4003
SPRING, COMPRESSION COIL
|
3 | Ask on WhatsApp |
| 11 |
16071ZV4005
SCREW, PLUG
|
4 | Ask on WhatsApp |
| 12 |
16081ZV4650
SCREW-WASHER
|
16 | Ask on WhatsApp |
| 13 |
16100ZW0L01ZA
CARBURETOR ASSY. (BG35D A) *NH8 *
|
1 | Ask on WhatsApp |
| 13 |
16100ZW0L02ZA
CARBURETOR ASSY. (BG35D B) *NH8 *
|
1 | Ask on WhatsApp |
| 14 |
16101ZW0L01
CARBURETOR ASSY. (#1 #2 #3)
|
3 | Ask on WhatsApp |
| 15 |
16102ZW0L01
CARBURETOR ASSY. (#4)
|
1 | Ask on WhatsApp |
| 16 |
16142ZW1000
LEVER, LINK
|
1 | Ask on WhatsApp |
| 17 |
16144ZW1000
LINK, CHOKE
|
1 | Ask on WhatsApp |
| 18 |
16150ZW0L01
JET SET, #42 BG35E A
|
4 | Ask on WhatsApp |
| 19 |
16162ZW1000
BOLT, HOLDING
|
4 | Ask on WhatsApp |
| 20 |
16166ZW0000
NOZZLE, MAIN
|
4 | Ask on WhatsApp |
| 21 |
16211ZW1000
INSULATOR, CARBURETOR
|
4 | Ask on WhatsApp |
| 22 |
16221ZW1000
PACKING, CARBURETOR
|
8 | Ask on WhatsApp |
| 23 |
16851ZW1000
TUBE A, FUEL
|
2 | Ask on WhatsApp |
| 24 |
17100ZW1000ZA
MANIFOLD ASSY., INTAKE *NH8 *
|
1 | Ask on WhatsApp |
| 25 |
17202ZV5300
COLLAR, DISTANCE, 6.5X11X7.5
|
9 | Ask on WhatsApp |
| 26 |
17380ZW1000
PLATE COMP., SILENCER BG40C A
|
1 | Ask on WhatsApp |
| 26 |
17380ZW1010
PLATE COMP., SILENCER BG40C B
|
1 | Ask on WhatsApp |
| 27 |
17384ZW1000
PACKING, SILENCER PLATE
|
1 | Ask on WhatsApp |
| 28 |
90021ZW1000
BOLT, FLANGE, 6X106
|
8 | Ask on WhatsApp |
| 29 |
90406ZV5000
WASHER, 6MM
|
1 | Ask on WhatsApp |
| 30 |
90452323000
WASHER, SEALING, 5MM
|
4 | Ask on WhatsApp |
| 31 |
90603ZV4000
CLIP, TUBE (B10)
|
8 | Ask on WhatsApp |
| 32 |
93500050100B
SCREW, PAN, 5X10
|
4 | Ask on WhatsApp |
| 33 |
93500060184J
SCREW, PAN, 6X18
|
2 | Ask on WhatsApp |
| 34 |
950015517540
TUBE, FUEL, 5.3X175 (95001-55001-60M)
|
2 | Ask on WhatsApp |
| 35 |
950030502331
TUBE, VINYL, 3.5X6.5X230 (95003-05001-60M)
|
1 | Ask on WhatsApp |
