Section E-7: CRANKSHAFT/PISTON (v2)

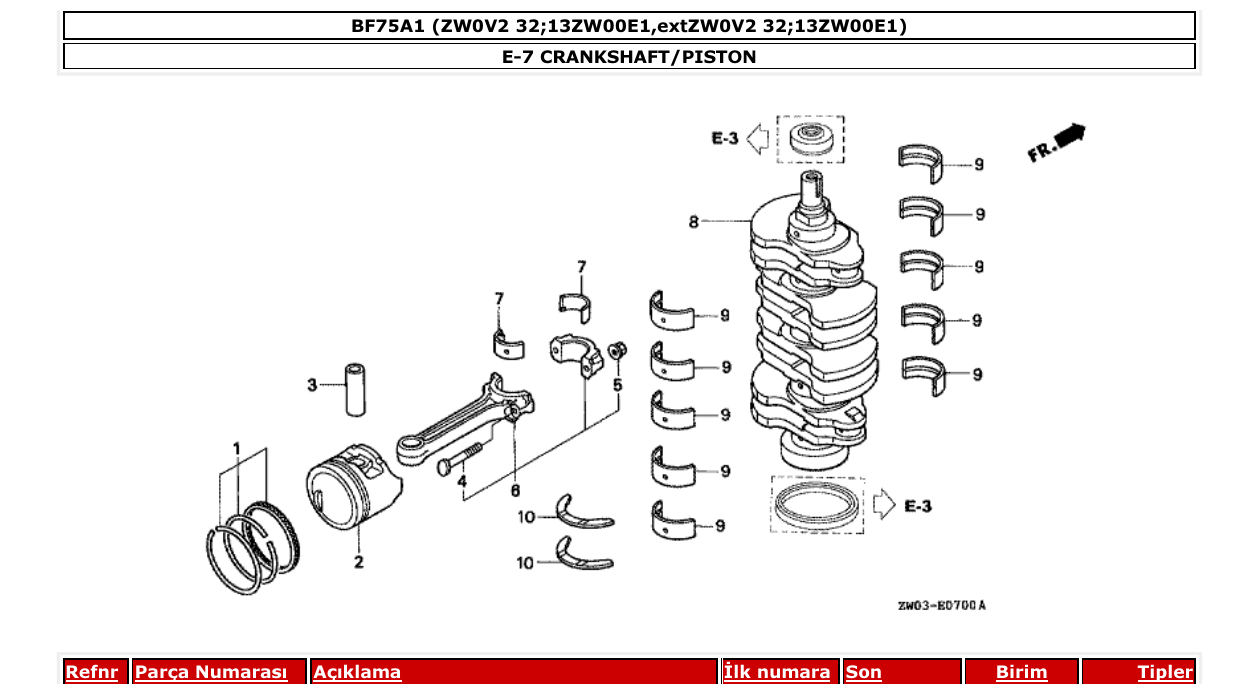

Diagram for section E-7: CRANKSHAFT/PISTON.
| Ref | Part No. | Qty | Buy |
|---|---|---|---|
| 1 |
13010ZW1000
RING SET, PISTON (STD.)
|
4 | Ask on WhatsApp |
| 1 |
13011ZW1000
RING SET, PISTON (0.25)
|
4 | Ask on WhatsApp |
| 2 |
13101ZW1000
PISTON (STD.)
|
4 | Ask on WhatsApp |
| 2 |
13102ZW1000
PISTON (0.25)
|
4 | Ask on WhatsApp |
| 3 |
13112PE0000
PIN, PISTON
|
4 | Ask on WhatsApp |
| 4 |
13204PE1003
BOLT, CONNECTING ROD
|
8 | Ask on WhatsApp |
| 5 |
13205634010
NUT, CONNECTING ROD
|
8 | Ask on WhatsApp |
| 5 |
13205689004
NUT, CONNECTING ROD (NAGOYA RASHI)
|
8 | Ask on WhatsApp |
| 6 |
13210PLMA00
ROD COMP., CONNECTING
|
4 | Ask on WhatsApp |
| 7 |
13211PLMA01
BEARING A, CONNECTING ROD (BLUE) (DAIDO)
|
8 | Ask on WhatsApp |
| 7 |
13212PLMA01
BEARING B, CONNECTING ROD (BLACK) (DAIDO)
|
8 | Ask on WhatsApp |
| 7 |
13213PLMA01
BEARING C, CONNECTING ROD (BROWN) (DAIDO)
|
8 | Ask on WhatsApp |
| 7 |
13214PLMA01
BEARING D, CONNECTING ROD (GREEN) (DAIDO)
|
8 | Ask on WhatsApp |
| 7 |
13215PLMA01
BEARING E, CONNECTING ROD (YELLOW) (DAIDO)
|
8 | Ask on WhatsApp |
| 7 |
13216PLMA01
BEARING F, CONNECTING ROD (PINK) (DAIDO)
|
8 | Ask on WhatsApp |
| 7 |
13217PLMA01
BEARING G, CONNECTING ROD (RED) (DAIDO)
|
8 | Ask on WhatsApp |
| 8 |
13310ZW1L00
CRANKSHAFT COMP.
|
1 | Ask on WhatsApp |
| 9 |
13321PH3003
BEARING A, MAIN (BLUE) (DAIDO)
|
10 | Ask on WhatsApp |
| 9 |
13322PH3003
BEARING B, MAIN (BLACK) (DAIDO)
|
10 | Ask on WhatsApp |
| 9 |
13323PH3003
BEARING C, MAIN (BROWN) (DAIDO)
|
10 | Ask on WhatsApp |
| 9 |
13324PH3003
BEARING D, MAIN (GREEN) (DAIDO)
|
10 | Ask on WhatsApp |
| 9 |
13325PH3003
BEARING E, MAIN (YELLOW) (DAIDO)
|
10 | Ask on WhatsApp |
| 9 |
13326PH3003
BEARING F, MAIN (PINK) (DAIDO)
|
10 | Ask on WhatsApp |
| 9 |
13327PH3003
BEARING G, MAIN (RED) (DAIDO)
|
10 | Ask on WhatsApp |
| 10 |
13331PG6004
WASHER, THRUST (TAIHO)
|
2 | Ask on WhatsApp |
