Section FOP-2: CARBURETOR HEATER (v2)

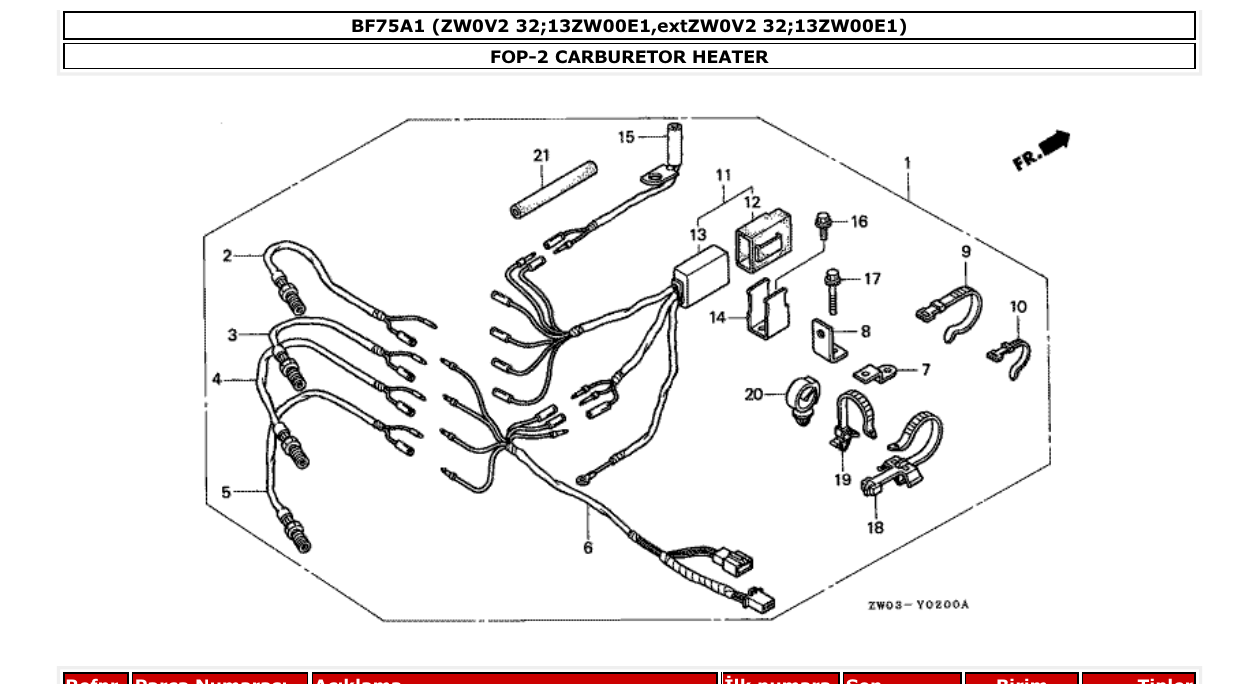

Diagram for section FOP-2: CARBURETOR HEATER.
| Ref | Part No. | Qty | Buy |
|---|---|---|---|
| 1 |
06341ZW1901
HEATER KIT, CARBURETOR
|
1 | Ask on WhatsApp |
| 2 |
31860ZW1901
HEATER ASSY., CARBURETOR (#1)
|
1 | Ask on WhatsApp |
| 3 |
31870ZW1901
HEATER ASSY., CARBURETOR (#2)
|
1 | Ask on WhatsApp |
| 4 |
31880ZW1901
HEATER ASSY., CARBURETOR (#3)
|
1 | Ask on WhatsApp |
| 5 |
31890ZW1901
HEATER ASSY., CARBURETOR (#4)
|
1 | Ask on WhatsApp |
| 6 |
32105ZW1900
SUB HARNESS ASSY.
|
1 | Ask on WhatsApp |
| 7 |
32114ZW1900
BRACKET, CLIP
|
1 | Ask on WhatsApp |
| 8 |
32115ZW1900
BRACKET, CLIP
|
1 | Ask on WhatsApp |
| 9 |
32161404000
BAND B1, WIRE
|
2 | Ask on WhatsApp |
| 10 |
32161404610
BAND B1, WIRE
|
5 | Ask on WhatsApp |
| 11 |
34180ZW1901
CONTROL UNIT, HEATER
|
1 | Ask on WhatsApp |
| 12 |
34184ZW1901
SUSPENSION
|
1 | Ask on WhatsApp |
| 13 |
34185ZW1901
CONTROL COMP., HEATER
|
1 | Ask on WhatsApp |
| 14 |
34187ZW1900
BRACKET, UNIT
|
1 | Ask on WhatsApp |
| 15 |
35680ZW1901
THERMISTOR ASSY.
|
1 | Ask on WhatsApp |
| 16 |
90013ZV0010
BOLT, FLANGE, 6X12
|
2 | Ask on WhatsApp |
| 17 |
90015ZV0000
BOLT, FLANGE, 6X28
|
1 | Ask on WhatsApp |
| 18 |
90649SC2003
BAND, WIRE HARNESS (NATURAL) (150MM)
|
2 | Ask on WhatsApp |
| 19 |
90672SA0003
STRAP, CABLE, 118MM (BLACK)
|
1 | Ask on WhatsApp |
| 20 |
90683SD9781
CLIP (20MM)
|
1 | Ask on WhatsApp |
| 21 |
950014503560
TUBE, FUEL, 4.5X35 (95001-45001-60M)
|
1 | Ask on WhatsApp |
