Section F-14: CONTROL PANEL (v2)

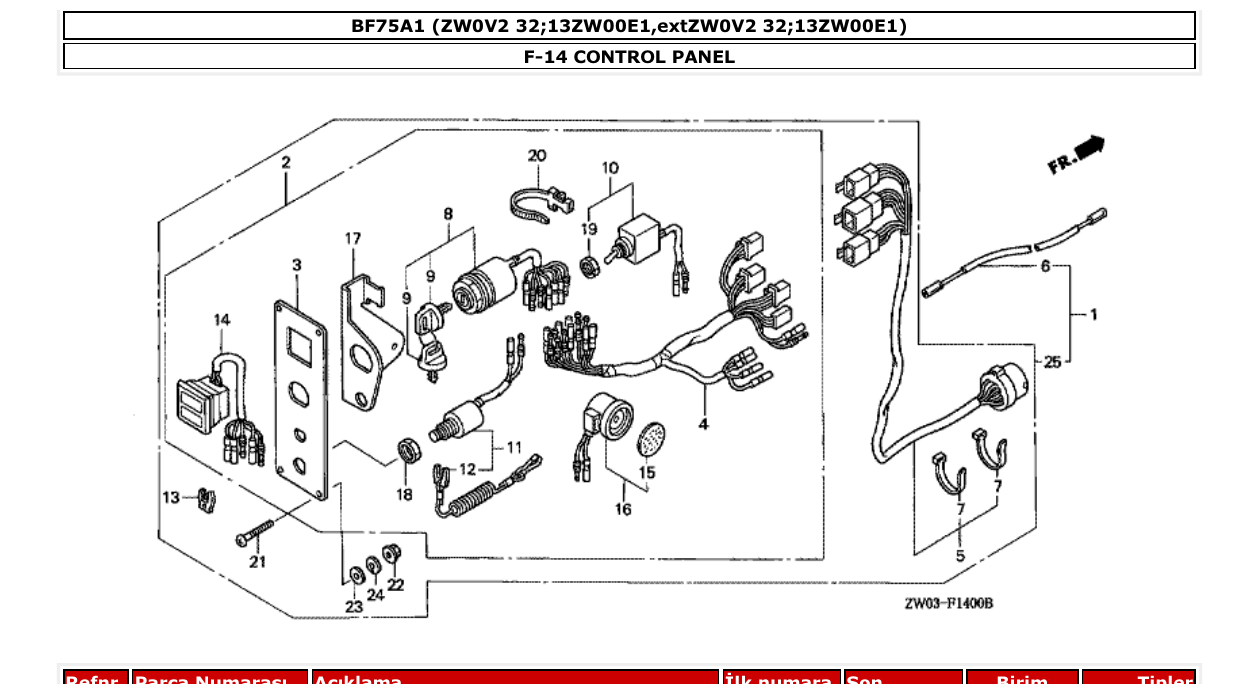

Diagram for section F-14: CONTROL PANEL.
| Ref | Part No. | Qty | Buy |
|---|---|---|---|
| 1 |
06323ZW1V11
PANEL KIT, SWITCH (DUAL)
|
1 | Ask on WhatsApp |
| 2 |
32340ZW1V02
PANEL ASSY., CONTROL
|
1 | Ask on WhatsApp |
| 3 |
32346ZW1V02
PANEL, CONTROL
|
1 | Ask on WhatsApp |
| 4 |
32545ZW1V01
HARNESS ASSY., SWITCH PANEL
|
1 | Ask on WhatsApp |
| 5 |
32580ZW1V01
CABLE ASSY., SWITCH PANEL
|
1 | Ask on WhatsApp |
| 6 |
32600ZW1900
CORD ASSY., EARTH (BONDING)
|
1 | Ask on WhatsApp |
| 7 |
32901952770
TIE, CABLE (2.4X92) (NATURAL)
|
2 | Ask on WhatsApp |
| 8 |
35100ZV5003
SWITCH ASSY., COMBINATION
|
1 | Ask on WhatsApp |
| 9 |
35110ZV5003
KEY ASSY., COMBINATION SWITCH
|
2 | Ask on WhatsApp |
| 10 |
35630ZW1V01
SWITCH ASSY., SOLENOID
|
1 | Ask on WhatsApp |
| 11 |
36180ZV5013
SWITCH ASSY., EMERGENCY STOP
|
1 | Ask on WhatsApp |
| 12 |
36182ZV4650
CORD COMP., EMERGENCY
|
1 | Ask on WhatsApp |
| 13 |
36187ZV4651
CLIP, EMERGENCY LOCK
|
1 | Ask on WhatsApp |
| 14 |
37210ZW1701
LAMP ASSY., INDICATION
|
1 | Ask on WhatsApp |
| 14 |
37210ZW1702
LAMP ASSY., INDICATION (2-LED)
|
1 | Ask on WhatsApp |
| 15 |
38403341672
PLATE, WINKER BUZZER
|
1 | Ask on WhatsApp |
| 16 |
38410ZV5003
BUZZER COMP., WARNING
|
1 | Ask on WhatsApp |
| 17 |
38414ZW1V02
BRACKET, BUZZER
|
1 | Ask on WhatsApp |
| 18 |
90302921000
NUT, HEX., 16MM
|
1 | Ask on WhatsApp |
| 19 |
90305ZW1V01
NUT, HEX., 12MM
|
1 | Ask on WhatsApp |
| 20 |
90649SC2003
BAND, WIRE HARNESS (NATURAL) (150MM)
|
1 | Ask on WhatsApp |
| 21 |
93500050401B
SCREW, PAN, 5X40
|
4 | Ask on WhatsApp |
| 22 |
9405005020
NUT, FLANGE, 5MM
|
4 | Ask on WhatsApp |
| 23 |
9410305200
WASHER, PLAIN, 5MM
|
4 | Ask on WhatsApp |
| 24 |
9411105400
WASHER, SPRING, 5MM
|
4 | Ask on WhatsApp |
| 25 |
06323ZW1V01
PANEL KIT, SWITCH (SINGLE)
|
1 | Ask on WhatsApp |
