Section E-4: THERMOSTAT (v2)

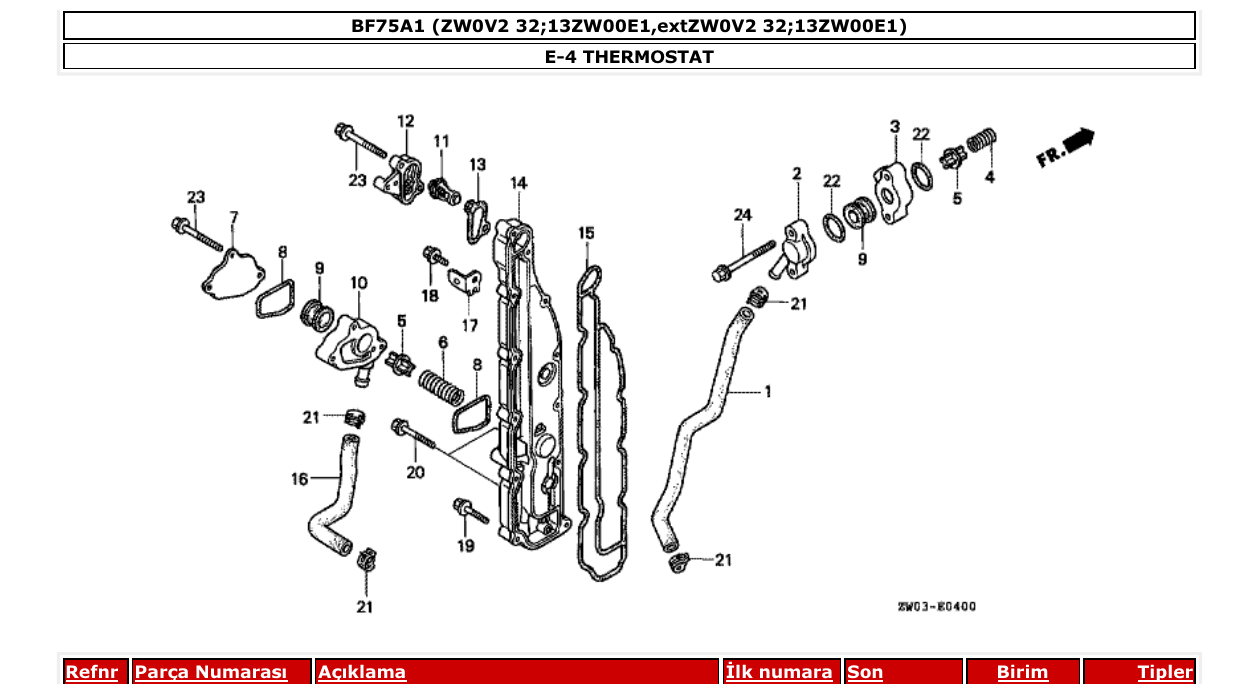

Diagram for section E-4: THERMOSTAT.
| Ref | Part No. | Qty | Buy |
|---|---|---|---|
| 2 |
19277ZW1000ZA
COVER, FLUSH VALVE *NH8 *
|
1 | Ask on WhatsApp |
| 3 |
19278ZW1000ZA
SPACER, FLUSH VALVE *NH8 *
|
1 | Ask on WhatsApp |
| 4 |
19279ZW1000
SPRING, FLUSH VALVE
|
1 | Ask on WhatsApp |
| 5 |
19291ZW1000
VALVE, RELIEF
|
2 | Ask on WhatsApp |
| 6 |
19292ZW1000
SPRING, RELIEF VALVE
|
1 | Ask on WhatsApp |
| 7 |
19295ZW1000
COVER, RELIEF VALVE
|
1 | Ask on WhatsApp |
| 8 |
19296ZW1000
PACKING, RELIEF VALVE COVER
|
2 | Ask on WhatsApp |
| 9 |
19297ZW1000
PACKING, RELIEF VALVE
|
2 | Ask on WhatsApp |
| 10 |
19298ZW1000ZA
SPACER, RELIEF VALVE *NH8 *
|
1 | Ask on WhatsApp |
| 11 |
19300ZV5043
THERMOSTAT ASSY.
|
1 | Ask on WhatsApp |
| 12 |
19315ZV5010ZA
COVER, THERMOSTAT *NH8 *
|
1 | Ask on WhatsApp |
| 13 |
19351ZV5000
GASKET, THERMOSTAT COVER
|
1 | Ask on WhatsApp |
| 14 |
19360ZW1000ZA
COVER COMP., WATER JACKET *NH8 *
|
1 | Ask on WhatsApp |
| 15 |
19371ZW1000
PACKING, WATER JACKET COVER
|
1 | Ask on WhatsApp |
| 17 |
32761PV0000
STAY, HIGH TENSION CORD CLAMP
|
1 | Ask on WhatsApp |
| 18 |
90013ZV0010
BOLT, FLANGE, 6X12
|
1 | Ask on WhatsApp |
| 19 |
90121ZV0000
BOLT, FLANGE, 6X25
|
8 | Ask on WhatsApp |
| 20 |
90123ZV0000
BOLT, FLANGE, 6X32
|
2 | Ask on WhatsApp |
| 22 |
91356SD4952
O-RING, 31.5X2.4 (ARAI)
|
2 | Ask on WhatsApp |
| 22 |
91356SD4953
O-RING, 31.5X2.4 (NOK)
|
2 | Ask on WhatsApp |
| 23 |
957010604002
BOLT, FLANGE, 6X40
|
5 | Ask on WhatsApp |
| 24 |
957010605502
BOLT, FLANGE, 6X55
|
2 | Ask on WhatsApp |
