bf75a1
Section E-13: TIMING BELT (v2)

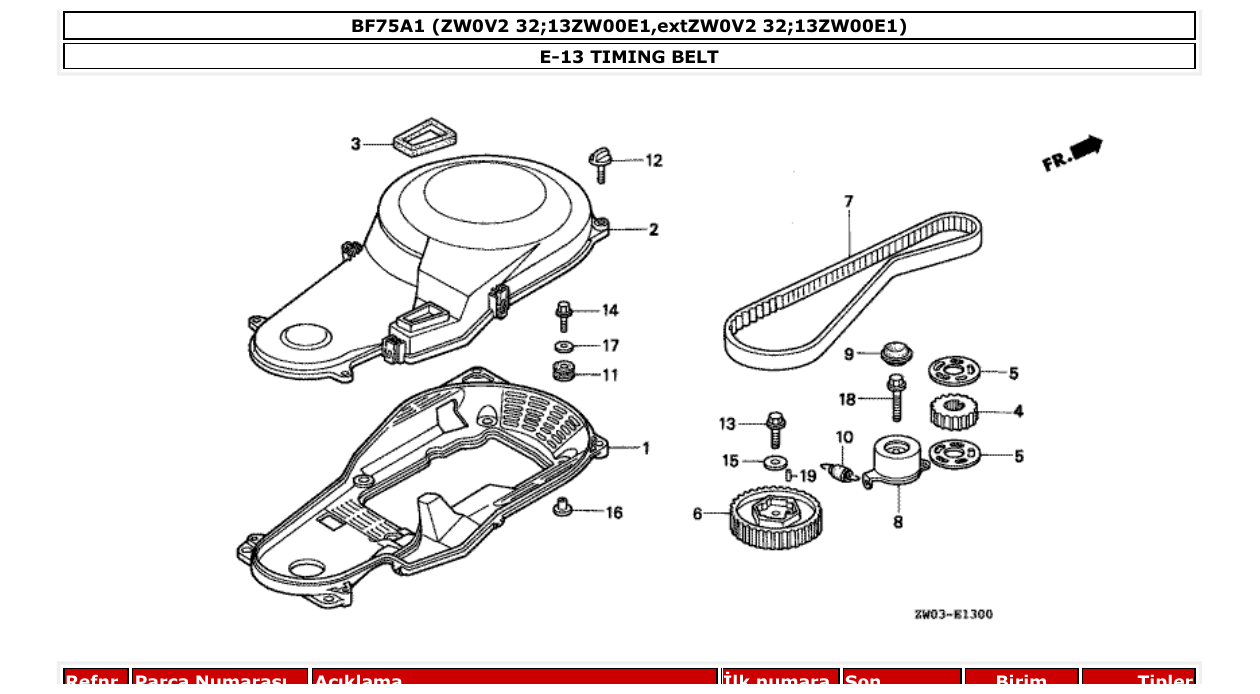

Diagram for section E-13: TIMING BELT.
| Ref | Part No. | Qty | Buy |
|---|---|---|---|
| 1 |
11810ZW1000
COVER COMP., TIMING BELT LOWER
|
1 | Ask on WhatsApp |
| 4 |
13621ZW1L01
PULLEY, TIMING BELT DRIVE
|
1 | Ask on WhatsApp |
| 5 |
13622PLC000
PLATE, TIMING BELT GUIDE
|
2 | Ask on WhatsApp |
| 6 |
14210ZW1000
PULLEY COMP., TIMING BELT DRIVEN
|
1 | Ask on WhatsApp |
| 7 |
14400ZW1004
BELT, TIMING
|
1 | Ask on WhatsApp |
| 8 |
14510ZW1004
TENSIONER COMP., TIMING BELT
|
1 | Ask on WhatsApp |
| 9 |
14515ZV5000
CAP, TIMING BELT TENSIONER
|
1 | Ask on WhatsApp |
| 10 |
14520ZV5020
SPRING COMP., TIMING BELT ADJUSTING
|
1 | Ask on WhatsApp |
| 11 |
40102ZV5000
GROMMET, UNDER CASE
|
6 | Ask on WhatsApp |
| 13 |
90031ZV5000
BOLT, FLANGE, 10X32
|
1 | Ask on WhatsApp |
| 14 |
90121ZV0000
BOLT, FLANGE, 6X25
|
6 | Ask on WhatsApp |
| 15 |
90435ZV5000
WASHER, 10X28X5
|
1 | Ask on WhatsApp |
| 16 |
91553ZV5000
COLLAR, C.D.I. UNIT CASE
|
6 | Ask on WhatsApp |
| 17 |
9410306200
WASHER, PLAIN, 6MM
|
6 | Ask on WhatsApp |
| 18 |
957011004508
BOLT, FLANGE, 10X45
|
1 | Ask on WhatsApp |
| 19 |
9622040100
ROLLER, 4X10
|
1 | Ask on WhatsApp |
