bf75a1
Section FOP-6: CONTROL PANEL/LIGHT SWITCH KIT (v2)

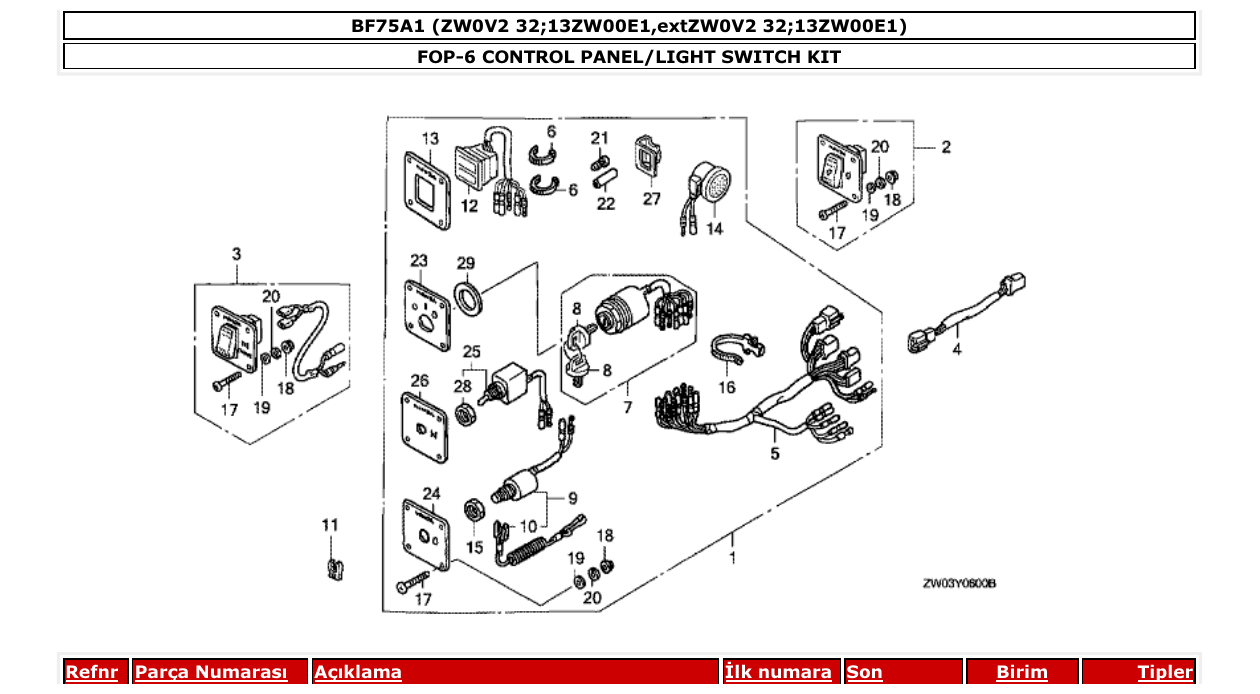

Diagram for section FOP-6: CONTROL PANEL/LIGHT SWITCH KIT.
| Ref | Part No. | Qty | Buy |
|---|---|---|---|
| 1 |
06323ZW5U00
PANEL KIT, CONTROL (B)
|
1 | Ask on WhatsApp |
| 2 |
06352ZW5U00
SWITCH KIT, LIGHT
|
1 | Ask on WhatsApp |
| 3 |
06356ZW5U00
SWITCH KIT, SOLENOID
|
1 | Ask on WhatsApp |
| 4 |
32530ZW5U00
SUB HARNESS ASSY., POWER TRIM-TILT (A)
|
1 | Ask on WhatsApp |
| 5 |
32545ZW1V01
HARNESS ASSY., SWITCH PANEL
|
1 | Ask on WhatsApp |
| 6 |
32901952770
TIE, CABLE (2.4X92) (NATURAL)
|
5 | Ask on WhatsApp |
| 7 |
35100ZV5003
SWITCH ASSY., COMBINATION
|
1 | Ask on WhatsApp |
| 8 |
35110ZV5003
KEY ASSY., COMBINATION SWITCH
|
2 | Ask on WhatsApp |
| 9 |
35180ZV7013
SWITCH ASSY., EMERGENCY STOP
|
1 | Ask on WhatsApp |
| 10 |
36182ZV4650
CORD COMP., EMERGENCY
|
1 | Ask on WhatsApp |
| 11 |
36187ZV4651
CLIP, EMERGENCY LOCK
|
1 | Ask on WhatsApp |
| 12 |
37210ZW5U01
LAMP ASSY., INDICATOR (2-LED)
|
1 | Ask on WhatsApp |
| 13 |
37214ZW5U00
PANEL, INDICATOR
|
1 | Ask on WhatsApp |
| 14 |
38410ZW5U01
BUZZER COMP., WARNING
|
1 | Ask on WhatsApp |
| 15 |
90302921000
NUT, HEX., 16MM
|
1 | Ask on WhatsApp |
| 16 |
90649SC2003
BAND, WIRE HARNESS (NATURAL) (150MM)
|
1 | Ask on WhatsApp |
| 17 |
93500050401B
SCREW, PAN, 5X40
|
0 | Ask on WhatsApp |
| 18 |
9405005020
NUT, FLANGE, 5MM
|
0 | Ask on WhatsApp |
| 19 |
9410305200
WASHER, PLAIN, 5MM
|
0 | Ask on WhatsApp |
| 20 |
9411105400
WASHER, SPRING, 5MM
|
0 | Ask on WhatsApp |
| 21 |
32823ZV5003
PLUG, INNER CONNECTOR
|
1 | Ask on WhatsApp |
| 22 |
32824ZV5003
PLUG, OUTER CONNECTOR
|
1 | Ask on WhatsApp |
| 23 |
35118ZW5U00
PANEL, SWITCH
|
1 | Ask on WhatsApp |
| 24 |
35184ZW5U00
PANEL, EMERGENCY STOP SWITCH
|
1 | Ask on WhatsApp |
| 25 |
35630ZW5U11
SWITCH ASSY., SOLENOID
|
1 | Ask on WhatsApp |
| 26 |
35634ZW5U10
PANEL, SOLENOID
|
1 | Ask on WhatsApp |
| 27 |
38414ZW5U00
BRACKET, BUZZER
|
1 | Ask on WhatsApp |
| 28 |
90305ZW1V01
NUT, HEX., 12MM
|
1 | Ask on WhatsApp |
| 29 |
90513ZW5U00
WASHER, PLAIN
|
1 | Ask on WhatsApp |
