Section E-5: OIL PUMP/EXHAUST PIPE (v2)

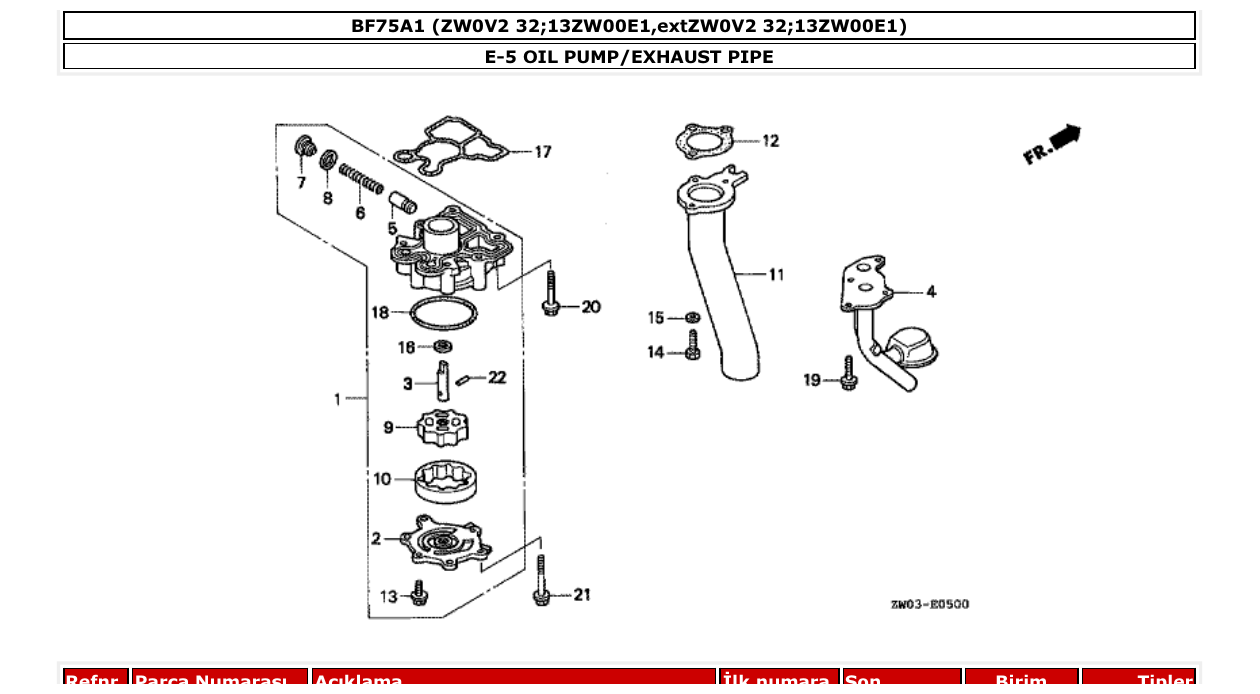

Diagram for section E-5: OIL PUMP/EXHAUST PIPE.
| Ref | Part No. | Qty | Buy |
|---|---|---|---|
| 1 |
15100ZW1000
PUMP ASSY., OIL
|
1 | Ask on WhatsApp |
| 2 |
15121ZW1000
COVER, OIL PUMP
|
1 | Ask on WhatsApp |
| 3 |
15136ZW1000
SHAFT, OIL PUMP
|
1 | Ask on WhatsApp |
| 4 |
15220ZW1000
STRAINER COMP., OIL
|
1 | Ask on WhatsApp |
| 5 |
15231PE0000
VALVE, RELIEF
|
1 | Ask on WhatsApp |
| 6 |
15232PG6000
SPRING, RELIEF VALVE
|
1 | Ask on WhatsApp |
| 7 |
15236ZW1000
BOLT, SEALING, 18MM
|
1 | Ask on WhatsApp |
| 8 |
15237PY3000
WASHER, SEALING, 18MM
|
1 | Ask on WhatsApp |
| 9 |
15331ZW1000
ROTOR, INNER
|
1 | Ask on WhatsApp |
| 10 |
15341ZW1000
ROTOR, OUTER
|
1 | Ask on WhatsApp |
| 11 |
18330ZW1000
PIPE COMP., EX.
|
1 | Ask on WhatsApp |
| 12 |
18333ZW1000
GASKET, EX. PIPE
|
1 | Ask on WhatsApp |
| 13 |
90017ZV0000
BOLT, FLANGE, 6X18
|
2 | Ask on WhatsApp |
| 14 |
90115ZV5000
BOLT, HEX., 8X25
|
3 | Ask on WhatsApp |
| 15 |
90401ZW1000
WASHER, PLAIN, 8MM
|
3 | Ask on WhatsApp |
| 16 |
90456MC7000
WASHER, THRUST, 13MM
|
1 | Ask on WhatsApp |
| 17 |
91301ZW1000
O-RING, OIL PUMP
|
1 | Ask on WhatsApp |
| 18 |
91302ZW1000
O-RING, PUMP COVER
|
1 | Ask on WhatsApp |
| 19 |
957010802009
BOLT, FLANGE, 8X20
|
3 | Ask on WhatsApp |
| 20 |
957010804002
BOLT, FLANGE, 8X40
|
2 | Ask on WhatsApp |
| 21 |
957010806502
BOLT, FLANGE, 8X65
|
4 | Ask on WhatsApp |
| 22 |
9622050178
ROLLER, 5X17.8
|
1 | Ask on WhatsApp |
