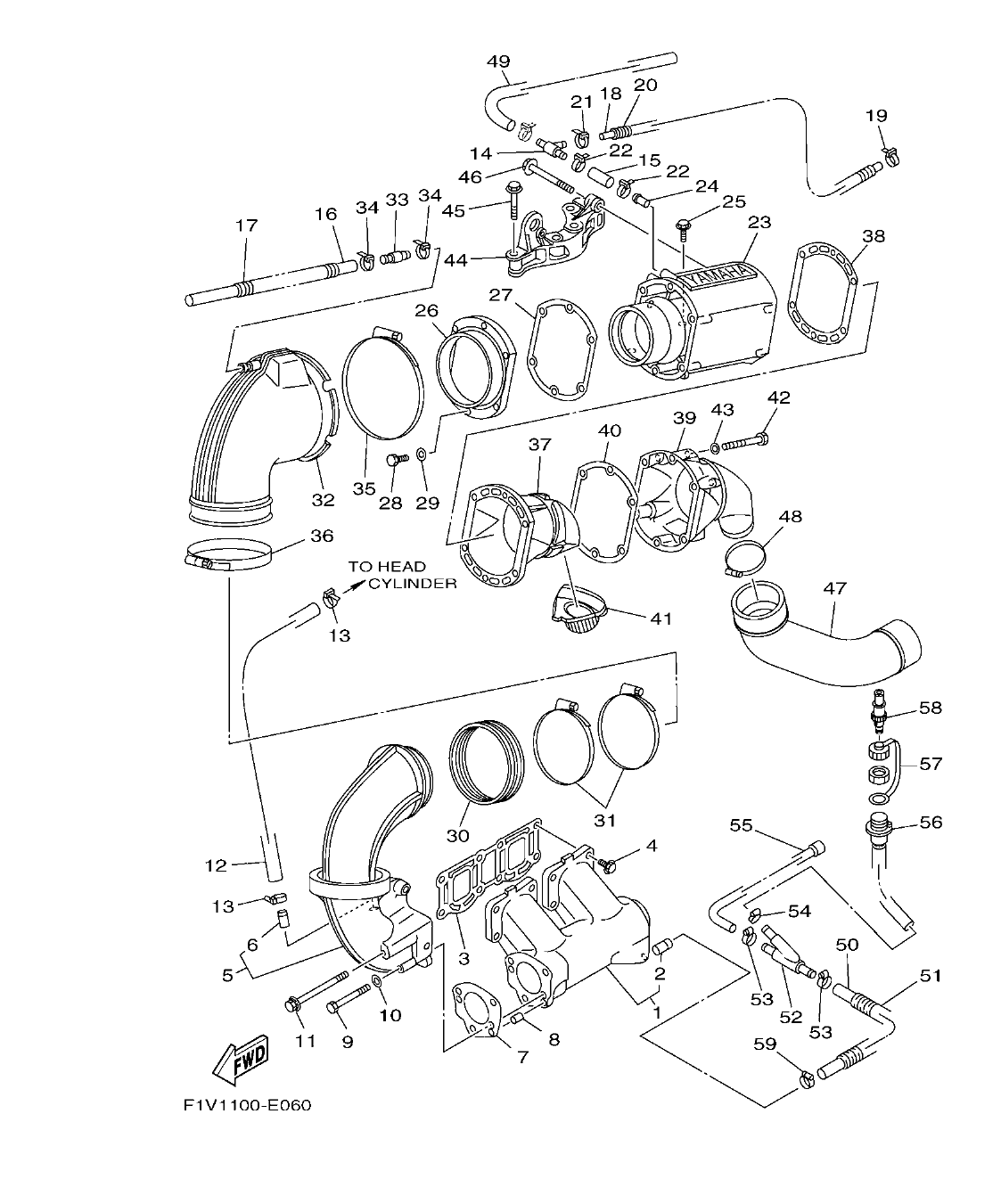

VX700-E
Section 6: EXHAUST 1 (v2)
Model code: F1V1
Parts list
Section 6
| Ref | Part No. / Description | Qty | Buy |
|---|---|---|---|
| 1 |
62T-14711-10-94
MUFFLER 1
|
1 | |
| 2 |
6K8-51129-00
.NIPPLE
|
1 | |
| 3 |
62T-14613-00
GASKET, EXHAUST PIPE
|
1 | |
| 4 |
90105-10M60
BOLT, FLANGE
|
8 | |
| 5 |
62T-14712-00-94
RING, JOINT
|
1 | |
| 6 |
6K8-51129-00
.NIPPLE
|
1 | |
| 7 |
62T-14749-00
GASKET, MUFFLER DAMPER 2
|
1 | |
| 8 |
93605-12M21
PIN, DOWEL
|
2 | |
| 9 |
97013-08075
BOLT
|
2 | |
| 10 |
92903-08600
WASHER, PLATE
|
2 | |
| 11 |
90119-08M11
BOLT, WITH WASHER
|
2 | |
| 12 |
90445-14M24
HOSE (L260)
|
1 | |
| 13 |
90465-11M10
CLAMP
|
2 | |
| 14 |
63N-24378-00
PIPE, JOINT 4
|
1 | |
| 15 |
90445-21010
HOSE (L70)
|
1 | |
| 16 |
90445-14M33
HOSE (L1150)
|
1 | |
| 17 |
90447-15003
HOSE, WITH SPRING
|
1 | |
| 18 |
90445-14M25
HOSE (L380)
|
1 | |
| 19 |
90465-11M10
CLAMP
|
1 | |
| 20 |
90446-20M31
HOSE (L340)
|
1 | |
| 21 |
90465-11M10
CLAMP
|
1 | |
| 22 |
90465-11M59
CLAMP
|
2 | |
| 23 |
62T-14721-00-8S
MUFFLER 2
|
1 | |
| 24 |
62T-14485-10
PIPE, JOINT
|
1 | |
| 25 |
90105-10M60
BOLT, FLANGE
|
2 | |
| 26 |
62T-41113-00-8S
OUTER COVER, EXHAUST
|
1 | |
| 27 |
62T-41114-01
GASKET, EXHAUST OUTER COVER
|
1 | |
| 28 |
97013-06025
BOLT
|
6 | |
| 29 |
92903-06600
WASHER, PLATE
|
6 | |
| 30 |
62T-14625-00
JOINT, EXHAUST 2
|
1 |
174.30 AED
Check price & stock on WhatsApp
|
| 31 |
90450-99M06
HOSE CLAMP ASSY
|
2 | |
| 32 |
62T-14615-01
JOINT, EXHAUST 1
|
1 | |
| 33 |
6R3-24377-00
PIPE, JOINT 3
|
1 | |
| 34 |
90465-11M10
CLAMP
|
2 | |
| 35 |
90450-99M01
HOSE CLAMP ASSY
|
1 | |
| 36 |
90450-99M02
HOSE CLAMP ASSY
|
1 | |
| 37 |
62T-41121-00-8S
INNER COVER,EXHAUST
|
1 | |
| 38 |
62T-41122-00
GASKET, EXHAUST INNER COVER
|
1 | |
| 39 |
62T-41123-01-8S
OUTER COVER, EXHAUST
|
1 | |
| 40 |
62T-41124-00
GASKET, EXHAUST OUTER COVER
|
1 |
15.71 AED
Check price & stock on WhatsApp
|
| 41 |
63N-15761-00
SEAL, RUBBER 1
|
1 | |
| 42 |
97013-06070
BOLT
|
6 | |
| 43 |
92903-06600
WASHER, PLATE
|
6 | |
| 44 |
62T-14771-00-94
STAY, MUFFLER 1
|
1 | |
| 45 |
90119-10M17
BOLT, WITH WASHER
|
4 | |
| 46 |
90105-10M88
BOLT, FLANGE
|
2 | |
| 47 |
6AE-14752-00
PIPE, OUTLET
|
1 |
475.22 AED
Check price & stock on WhatsApp
|
| 48 |
90450-70M03
HOSE CLAMP ASSY
|
1 | |
| 49 |
90445-21009
HOSE (L1030)
|
1 | |
| 50 |
90445-14M14
HOSE (L330)
|
1 | |
| 51 |
90446-20M13
HOSE (L260)
|
1 | |
| 52 |
64X-12581-00
JOINT, HOSE 1
|
1 | |
| 53 |
90450-14M05
HOSE CLAMP ASSY
|
2 | |
| 54 |
90450-18M09
HOSE CLAMP ASSY
|
1 |
33.52 AED
Check price & stock on WhatsApp
|
| 55 |
6AE-12564-00
PIPE, WATER
|
1 | |
| 56 |
64T-12580-00
JOINT ASSY
|
1 | |
| 57 |
682-84385-01
CAP,1
|
1 | |
| 58 |
67X-E2590-10
CONDUCTION ASSY
|
1 | |
| 59 |
90601-118UF
BAND, HOSE 18
|
1 |
