VX700-E

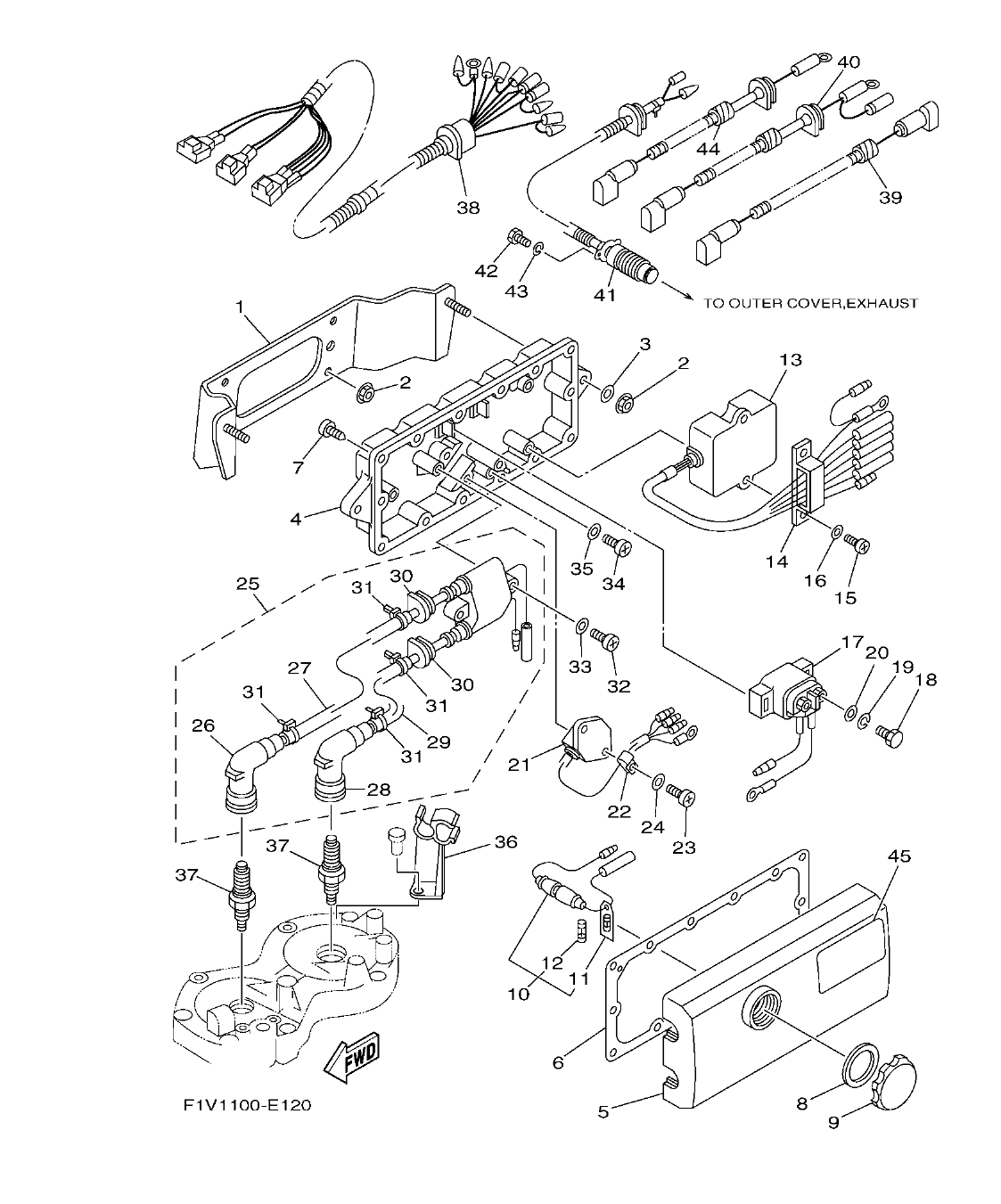

Section 12: ELECTRICAL 1 (v2)
Model code: F1V1
Parts list
Section 12
| Ref | Part No. / Description | Qty | Buy |
|---|---|---|---|
| 1 |
F1V-U815D-00
BRACKET, ELECTRIC BOX
|
1 | |
| 2 |
9572R-08300
NUT, FLANGE
|
4 | |
| 3 |
9299R-08200
WASHER
|
2 | |
| 4 |
62L-8552A-00-8P
HOUSING
|
1 | |
| 5 |
6M6-8552E-01
COVER, CASE
|
1 | |
| 6 |
6M6-81921-00
GASKET, TERMINAL
|
1 | |
| 7 |
97780-60525
SCREW, TAPPING
|
14 | |
| 8 |
6M6-81844-00
GASKET
|
1 | |
| 9 |
6M6-8132W-00
CAP
|
1 | |
| 10 |
6K8-82150-01
FUSE HOLDER ASSY
|
1 | |
| 11 |
6G1-82151-00
.FUSE (10A)
|
1 | |
| 12 |
6K8-82159-00
.FUSE SPEAR (10A)
|
1 | |
| 13 |
62T-85540-01
C.D.I. UNIT ASSY
|
1 | |
| 14 |
90464-06M29
CLAMP
|
1 | |
| 15 |
97880-06016
SCREW, PAN HEAD
|
2 | |
| 16 |
92990-06600
WASHER, PLATE
|
2 | |
| 17 |
68N-81940-00
STARTER RELAY ASSY
|
1 | |
| 18 |
97095-06010
BOLT
|
2 | |
| 19 |
92995-06100
WASHER, SPRING
|
2 | |
| 20 |
92995-06600
WASHER
|
2 | |
| 21 |
6M6-81960-A0
RECTIFIER & REGULATOR ASSY
|
1 | |
| 22 |
90465-06M86
CLAMP
|
1 | |
| 23 |
97880-06016
SCREW, PAN HEAD
|
2 | |
| 24 |
92990-06600
WASHER, PLATE
|
2 | |
| 25 |
62E-85570-11
IGNITION COIL ASSY
|
1 | |
| 26 |
62E-82371-11
.CAP, PLUG
|
1 | |
| 27 |
62E-82351-01
.TUBE, CORD
|
1 | |
| 28 |
62E-82371-11
.CAP, PLUG
|
1 | |
| 29 |
62E-82352-01
.TUBE, CORD 2
|
1 | |
| 30 |
90480-06M43
.GROMMET
|
2 | |
| 31 |
90465-11M10
.CLAMP
|
4 | |
| 32 |
97880-06030
SCREW, PAN HEAD
|
2 | |
| 33 |
92990-06600
WASHER, PLATE
|
2 | |
| 34 |
97880-06016
SCREW, PAN HEAD
|
2 | |
| 35 |
92990-06600
WASHER, PLATE
|
2 | |
| 36 |
62T-82361-00
CLAMP, CORD
|
1 | |
| 37 |
94702-00195
PLUG, SPARK (NGK BR8HS)
|
2 | |
| 38 |
6AE-82553-00
EXTENSION, WIRE LEAD
|
1 | |
| 39 |
6AE-82117-00
WIRE, LEAD
|
1 | |
| 40 |
63N-82117-10
WIRE, LEAD
|
1 | |
| 41 |
62T-82560-11
THERMO SWITCH ASSY
|
1 | |
| 42 |
97095-06016
BOLT
|
2 | |
| 43 |
92995-06100
WASHER, SPRING
|
2 | |
| 44 |
6AE-82117-20
WIRE, LEAD
|
1 | |
| 45 |
6B6-83623-00
MARK 3
|
1 |
