VX700-E

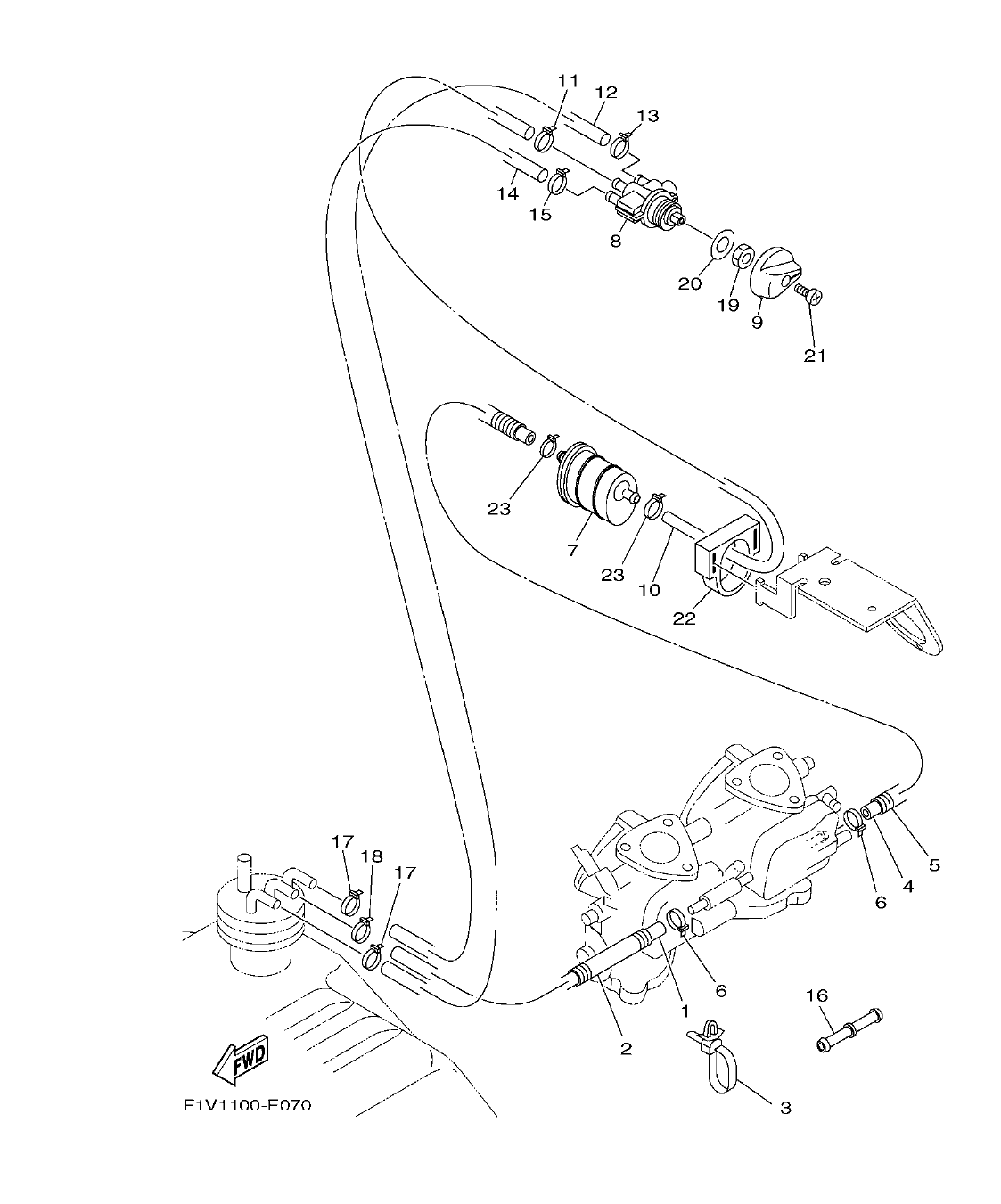

Section 7: FUEL (v2)
Model code: F1V1
Parts list
Section 7
| Ref | Part No. / Description | Qty | Buy |
|---|---|---|---|
| 1 |
90445-10037
HOSE (L1220)
|
1 | |
| 2 |
90447-13003
HOSE, WITH SPRING
|
1 | |
| 3 |
90465-12M56
CLAMP
|
1 | |
| 4 |
90445-10036
HOSE (L1220)
|
1 | |
| 5 |
90447-13003
HOSE, WITH SPRING
|
1 | |
| 6 |
90465-11M10
CLAMP
|
2 | |
| 7 |
66V-24560-00
FILTER ASSY
|
1 | |
| 8 |
66V-24500-02
FUEL COCK ASSY 1
|
1 | |
| 9 |
6K8-24524-10
LEVER, COCK
|
1 | |
| 10 |
90445-11040
HOSE (L700)
|
1 | |
| 11 |
90465-11M10
CLAMP
|
1 | |
| 12 |
90445-11006
HOSE (L580)
|
1 | |
| 13 |
90465-11M10
CLAMP
|
1 | |
| 14 |
90445-11008
HOSE (L550)
|
1 | |
| 15 |
90465-11M10
CLAMP
|
1 | |
| 16 |
6G8-24376-00
PIPE, JOINT 1
|
1 | |
| 17 |
90465-11829
CLAMP
|
2 | |
| 18 |
90465-11829
CLAMP
|
1 | |
| 19 |
90170-22187
NUT
|
1 | |
| 20 |
90202-229U1
WASHER, PLATE
|
1 | |
| 21 |
90159-04800
SCREW, WITH WASHER
|
1 | |
| 22 |
EU0-U7817-00
HOLDER, FILTER
|
1 | |
| 23 |
90465-11829
CLAMP
|
2 |
