VX700-E

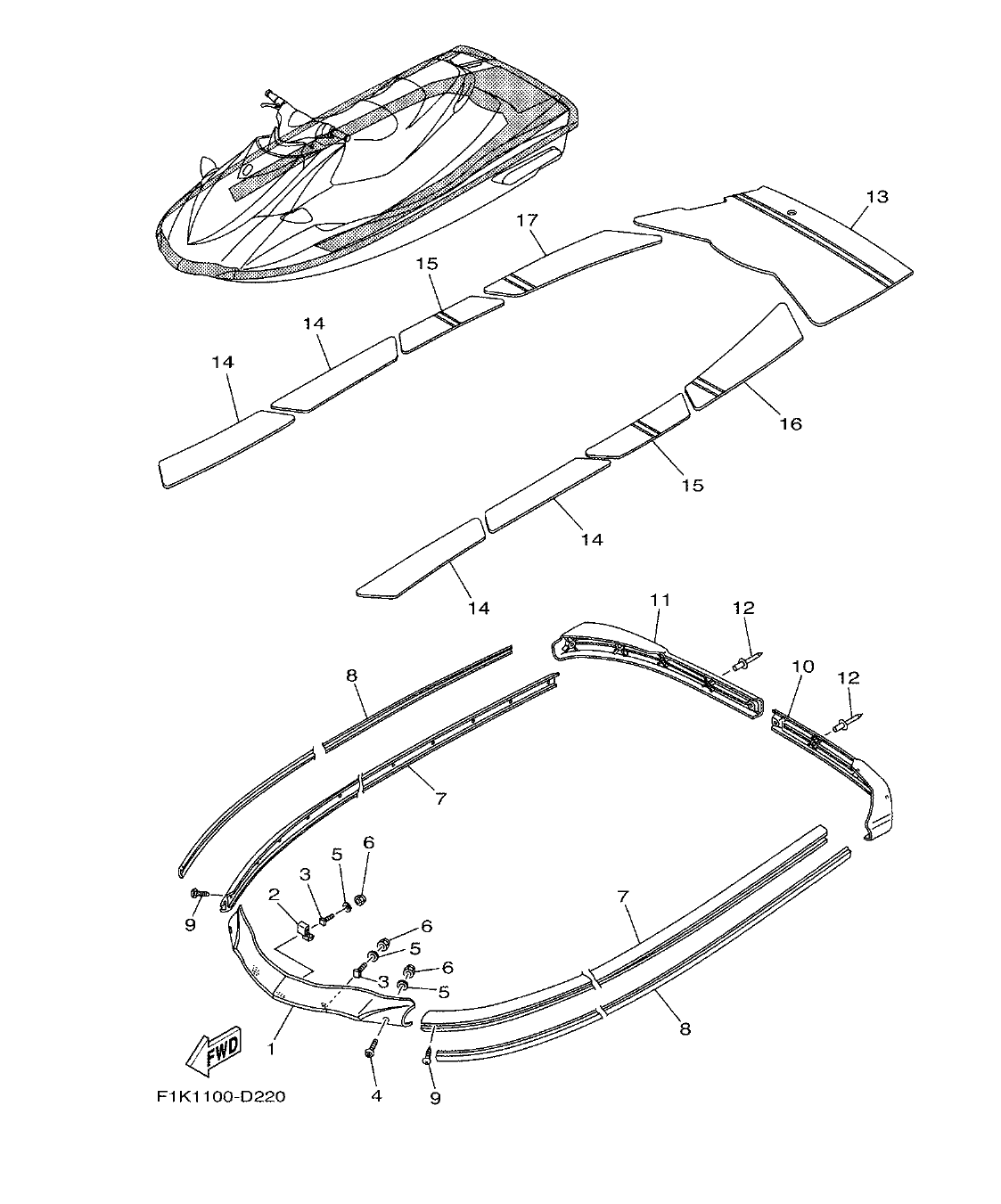

Section 17: GUNWALE & MAT (v2)
Model code: F1V1
Parts list
Section 17
| Ref | Part No. / Description | Qty | Buy |
|---|---|---|---|
| 1 |
F1K-U2501-01
BOW GUNWALE COMP.
GRAY
|
1 | |
| 2 |
F1K-U2521-02
PLATE
|
1 | |
| 3 |
F1K-U491K-00
BOLT, SPECIAL
|
3 | |
| 4 |
90111-06803
BOLT,HEX. SOCKET BUTTON
|
2 | |
| 5 |
9299R-06200
WASHER
|
5 | |
| 6 |
9572R-06300
NUT, NYLON
|
5 | |
| 7 |
F1K-U2512-03
GUNWALE, SIDE
GRAY
|
2 | |
| 8 |
F1K-U2519-01
INNER,GUNWALE
GRAY
|
2 | |
| 9 |
90169-059U1
SCREW,TAPPING
|
30 | |
| 10 |
F1K-U251D-01
GUNWALE, STERN 1
GRAY
|
1 | |
| 11 |
F1K-U251E-01
GUNWALE, STERN 2
GRAY
|
1 | |
| 12 |
90267-47801
RIVET, BLIND
|
9 | |
| 13 |
F1K-U3581-10
MAT, UPPER
GRAY
|
1 | |
| 14 |
F1K-U351H-10
MAT, STEP 1
GRAY
|
4 | |
| 15 |
F1K-U351J-10
MAT, STEP 2
GRAY
|
2 | |
| 16 |
F1K-U351K-10
MAT, STEP 3
GRAY
|
1 | |
| 17 |
F1K-U351M-10
MAT, STEP 4
GRAY
|
1 |
